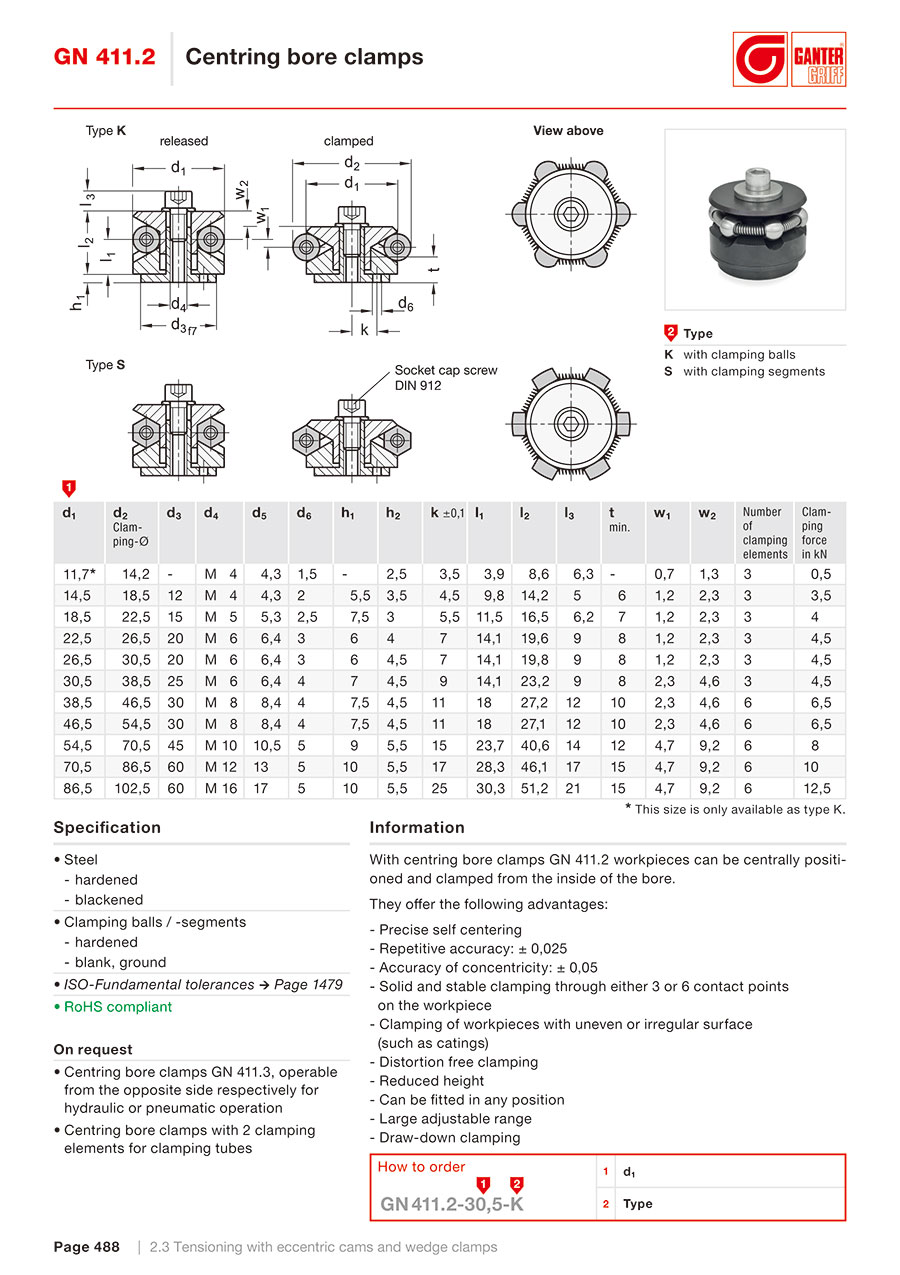

Centring bore clamps, Steel
- Volume Discount
They offer the following advantages:
- Precise self centering
- Repetitive accuracy: ± 0,025
- Accuracy of concentricity: ± 0,05
- Solid and stable clamping through either 3 or 6 contact points on the workpiece
- Clamping of workpieces with uneven or irregular surface (such as castings)
- Distortion free clamping
- Reduced height
- Can be fitted in any position
- Large adjustable range
- Draw-down clamping
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Diameter d1 | Type | |
|---|---|---|---|---|---|---|
351.12 € | 1 | Available | 7 Days | 11.7 | K, with clamping balls | |
372.30 € | 1 | Available | 7 Days | 14.5 | K, with clamping balls | |
436.18 € | 1 | Available | 7 Days | 14.5 | S, with clamping segments | |
413.18 € | 1 | Available | 7 Days | 18.5 | K, with clamping balls | |
478.40 € | 1 | Available | 7 Days | 18.5 | S, with clamping segments | |
459.56 € | 1 | Available | 7 Days | 22.5 | K, with clamping balls | |
527.82 € | 1 | Available | 7 Days | 22.5 | S, with clamping segments | |
506.10 € | 1 | Available | 7 Days | 26.5 | K, with clamping balls | |
571.76 € | 1 | Available | 7 Days | 26.5 | S, with clamping segments | |
551.58 € | 1 | Available | 7 Days | 30.5 | K, with clamping balls | |
618.68 € | 1 | Available | 7 Days | 30.5 | S, with clamping segments | |
606.52 € | 1 | Available | 7 Days | 38.5 | K, with clamping balls | |
671.86 € | 1 | Available | 7 Days | 38.5 | S, with clamping segments | |
752.56 € | 1 | Available | 7 Days | 46.5 | K, with clamping balls | |
855.72 € | 1 | Available | 7 Days | 46.5 | S, with clamping segments | |
805.06 € | 1 | Available | 7 Days | 54.5 | K, with clamping balls | |
904.42 € | 1 | Available | 7 Days | 54.5 | S, with clamping segments | |
863.62 € | 1 | Available | 7 Days | 70.5 | K, with clamping balls | |
961.38 € | 1 | Available | 7 Days | 70.5 | S, with clamping segments | |
951.90 € | 1 | Available | 7 Days | 86.5 | K, with clamping balls | |
1,052.00 € | 1 | Available | 7 Days | 86.5 | S, with clamping segments |
Loading...
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
