Cranked handles with retractable handle, Aluminium

Cranked handles with retractable handle, Aluminium
  • Volume Discount

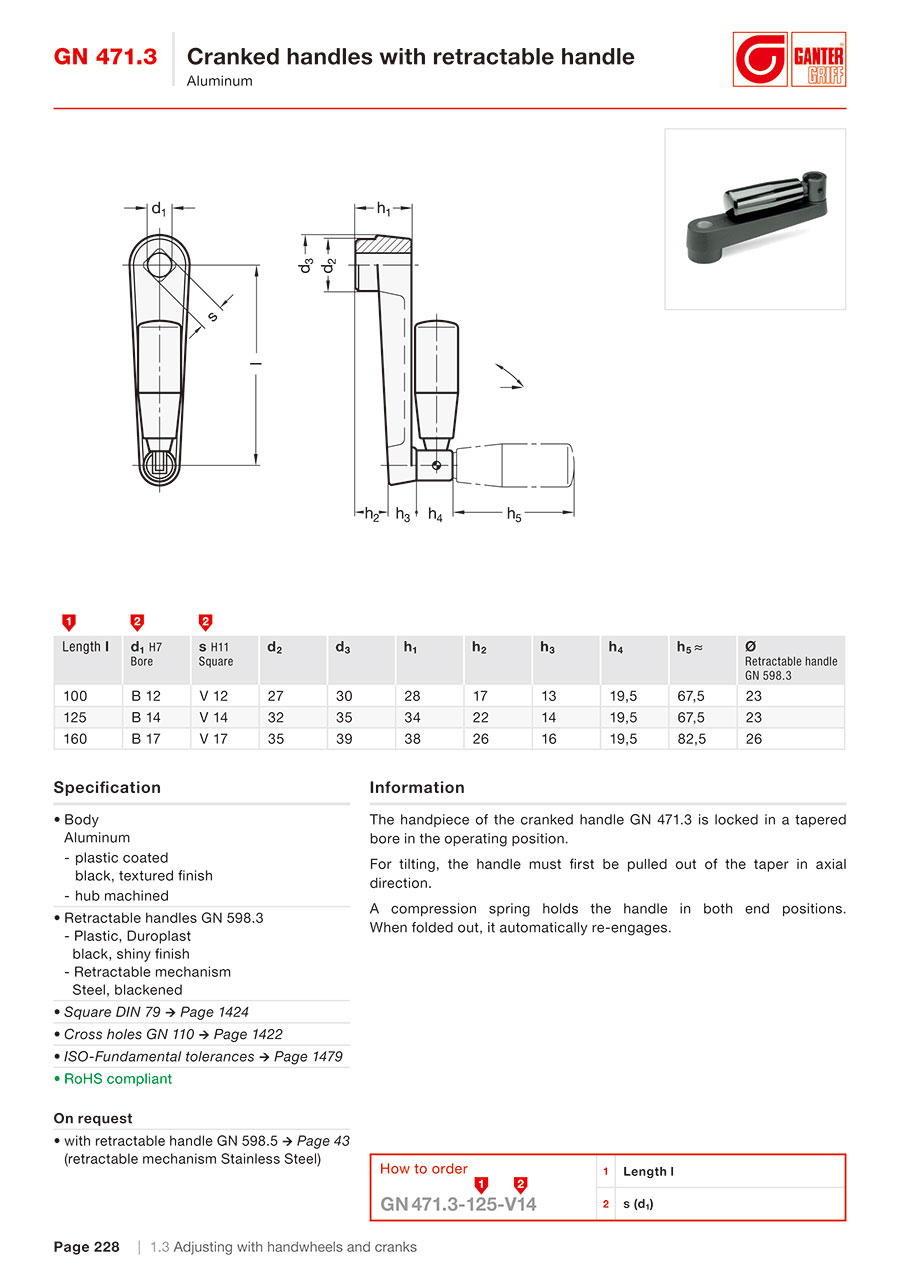

The handpiece of the cranked handle GN 471.3 is locked in a tapered bore in the operating position.
For tilting, the handle must first be pulled out of the taper in axial direction.
A compression spring holds the handle in both end positions. When folded out, it automatically re-engages.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
471.3-100-B12
471.3-100-V12
471.3-125-B14
471.3-125-V14
471.3-160-B17
471.3-160-V17
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Square s0/s
(mm)
Bore d1 Length l / l1

38.34 €

1 Available 5 Days -B 12100

42.10 €

1 Available 5 Days V 12-100

40.88 €

1 Available 5 Days -B 14125

44.64 €

1 Available 5 Days V 14-125

44.64 €

1 Available 5 Days -B 17160

48.40 €

1 Available 5 Days V 17-160
