Configure
- Stock
- Show stock items only
- Diameter d1
- 42
- 49
- 60
- 70
- Type
- 784.1
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Same-day shipping possible
- Within 7 working days

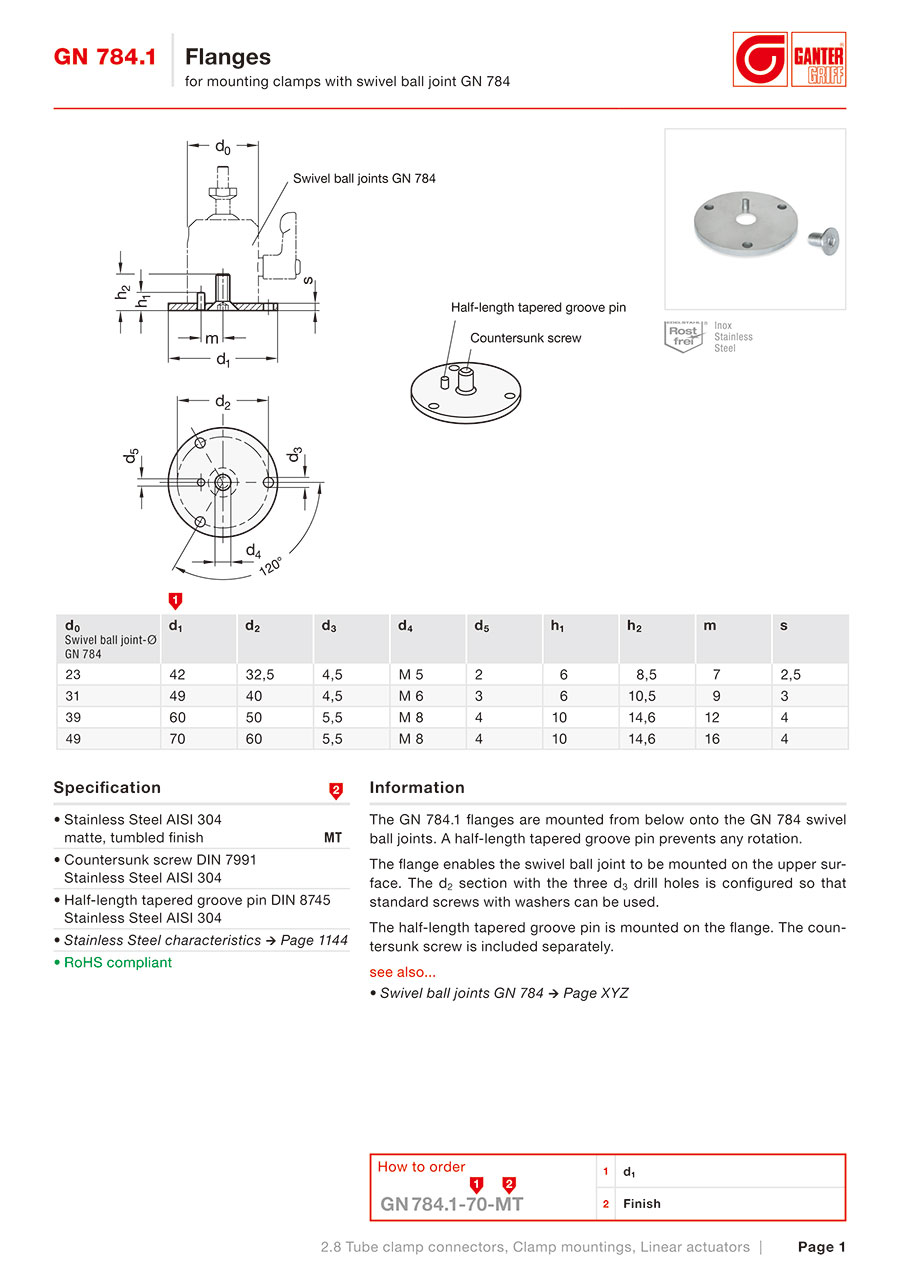

Flanges for swivel ball joints GN 784
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
13.16 € ( 15.66 € ) | 7 working days |
16.60 €8.80 € ( 10.47 € ) | Stock item: 1 working dayAvailable for same-day shipping |
16.16 €8.56 € ( 10.19 € ) | Stock item: 1 working dayAvailable for same-day shipping |
17.50 € ( 20.82 € ) | 7 working days |
More Information
Basic information
The GN 784.1 flanges are mounted from below onto the GN 784 swivel ball joints GN 784. A half-length tapered groove pin prevents any rotation.
The flange enables the swivel ball joints to be mounted on the upper surface. The d2 section with the three d3 drill holes is configured so that standard screws with washers can be used.
The half-length tapered groove pin is mounted on the flange. The countersunk screw is included separately.
