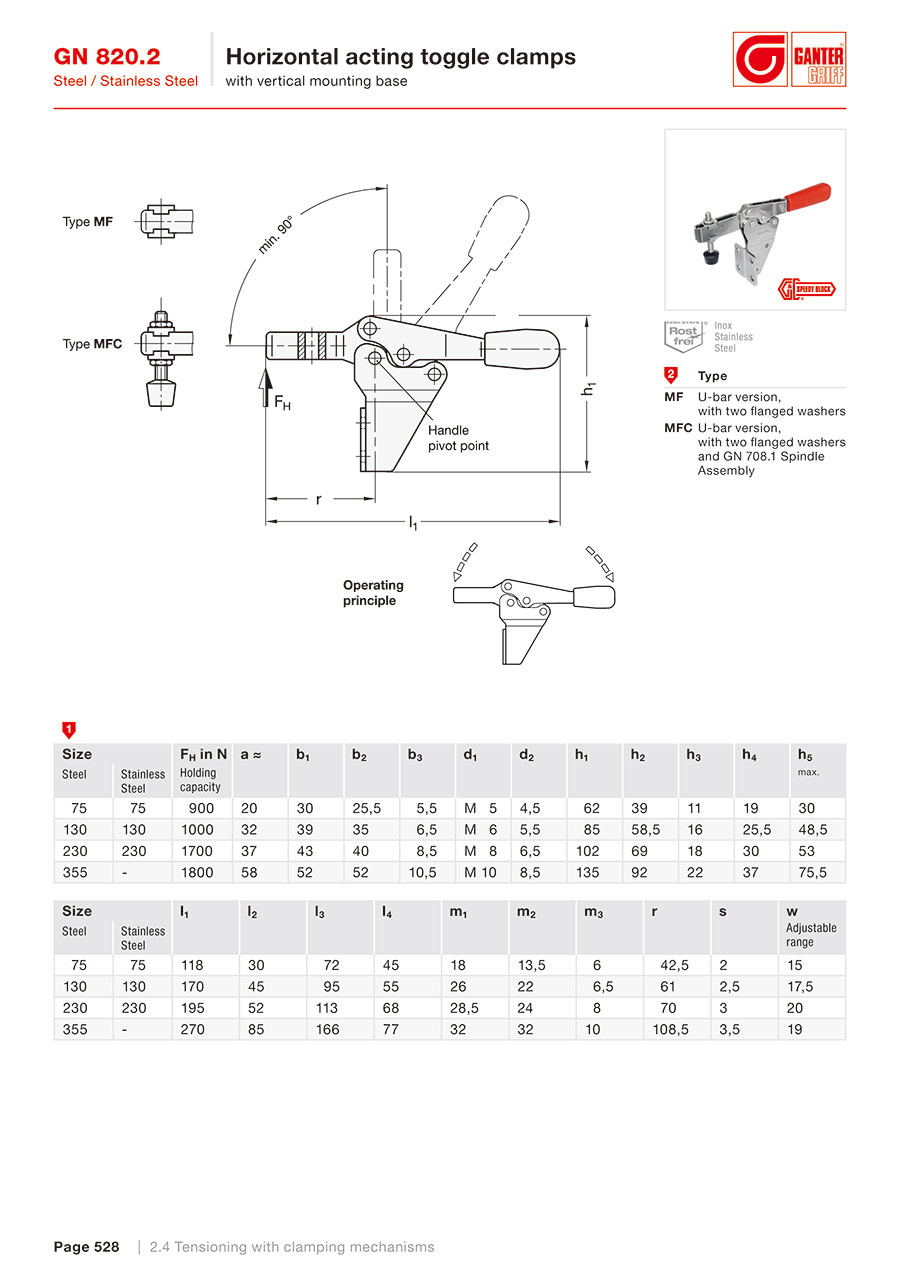

Horizontal acting toggle clamps with vertical mounting base
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
| Order suspended |
| Order suspended |
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
26.28 € ( 31.27 € ) | 7 working days |
27.76 € ( 33.03 € ) | 7 working days |
29.76 € ( 35.41 € ) | 7 working days |
31.62 € ( 37.63 € ) | 7 working days |
36.90 € ( 43.91 € ) | 4 working days |
39.20 €20.78 € ( 24.73 € ) | Stock item: 1 working dayAvailable for same-day shipping |
54.28 €28.77 € ( 34.24 € ) | Stock item: 1 working dayAvailable for same-day shipping |
57.26 €30.35 € ( 36.12 € ) | Stock item: 1 working dayAvailable for same-day shipping |
More Information
Basic information
GN 820.2 horizontal acting toggle clamps work according to the toggle principle: lever and clamping bar move in the opposite direction.
They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position. The 90° rotated mounting surface allows a space-saving installation in addition to the clamping point.
Horizontal acting toggle clamps in the U-bar version with two flanged washers (Type MF) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type MFC.
