Horizontal latch type toggle clamps, with safety hook, with pulling action
Part number:
possible part numbers found.Product information

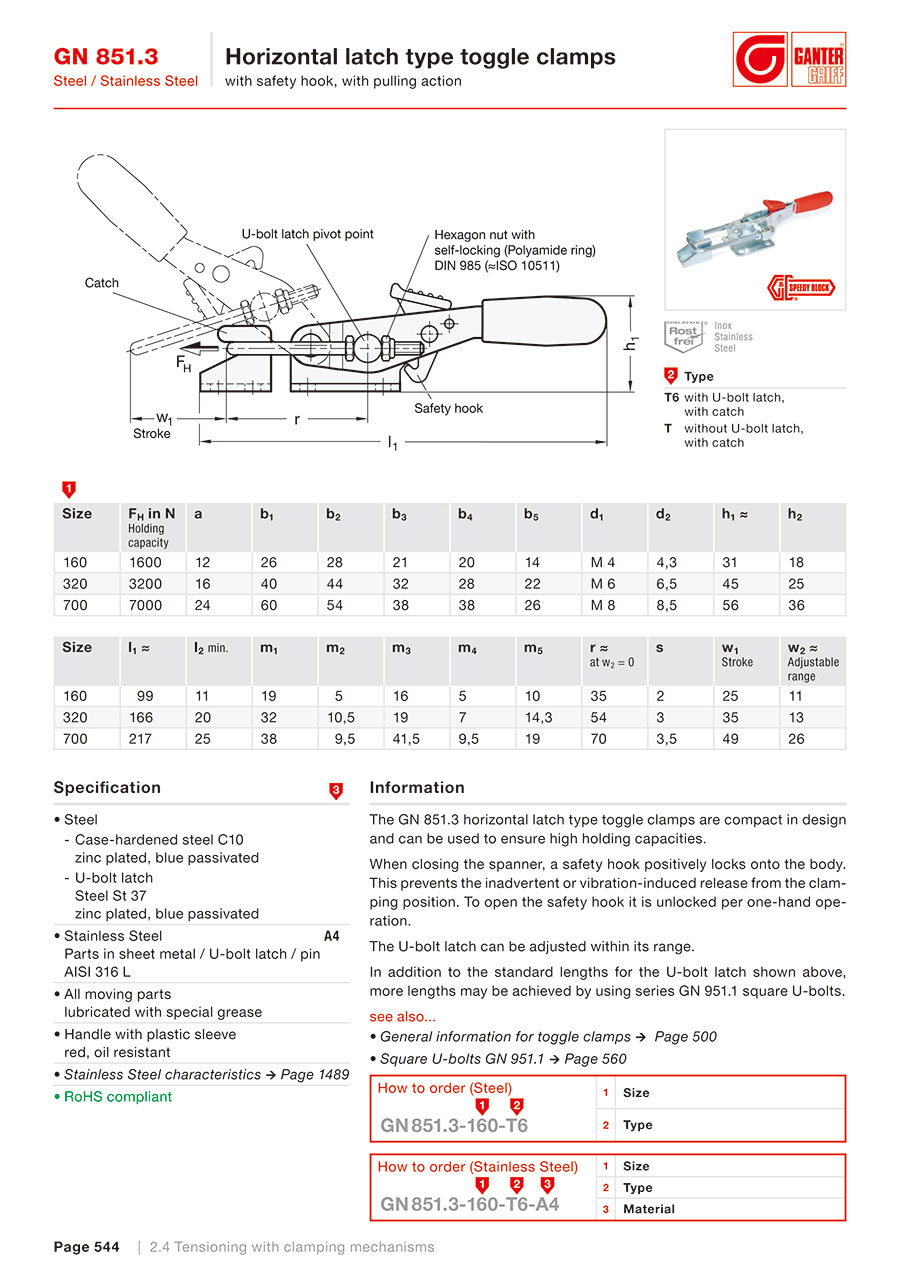

GN 851.3 / Steel / Stainless Steel / Horizontal Latch Type Toggle Clamps with Safety Hook, with Pulling Action
Information
The GN 851.3 horizontal latch type toggle clamps are compact in design and can be used to ensure high holding capacities. When closing the spanner, a safety hook positively locks onto the body.
This prevents the inadvertent or vibration-induced release from the clamping position. To open the safety hook it is unlocked per one-hand operation.
The U-bolt latch can be adjusted within its range.
In addition to the standard lengths for the U-bolt latch shown above, more lengths may be achieved by using series GN 951.1 square U-bolts.
see also...
• General information for toggle clamps
• Square U-bolts GN 951.1
How to Order
How to order (Steel) | 1 | Size |
| 2 | Type |
How to order (Stainless Steel) | 1 | Size |
| 2 | Type | |
| 3 | Material |
Specification
• Steel
- Case-hardened steel C10
zinc plated, blue passivated
- U-bolt latch
Steel St 37
zinc plated, blue passivated
• Stainless Steel A4
Parts in sheet metal / U-bolt latch / pin
AISI 316 L
• All moving parts
lubricated with special grease
• Handle with plastic sleeve
red, oil resistant
• Stainless Steel characteristics
• RoHS compliant
- Case-hardened steel C10
zinc plated, blue passivated
- U-bolt latch
Steel St 37
zinc plated, blue passivated
• Stainless Steel A4
Parts in sheet metal / U-bolt latch / pin
AISI 316 L
• All moving parts
lubricated with special grease
• Handle with plastic sleeve
red, oil resistant
• Stainless Steel characteristics
• RoHS compliant
Dimensions
 | |||||||||||||||||
| Size | FH in N Holding capacity | a | b1 | b2 | b3 | b4 | b5 | d1 | d2 | h1 ≈ | h2 | ||||||
| 160 | 1600 | 12 | 26 | 28 | 21 | 20 | 14 | M 4 | 4.3 | 31 | 18 | ||||||
| 320 | 3200 | 16 | 40 | 44 | 32 | 28 | 22 | M 6 | 6.5 | 45 | 25 | ||||||
| 700 | 7000 | 24 | 60 | 54 | 38 | 38 | 26 | M 8 | 8.5 | 56 | 36 | ||||||
| Size | l1 ≈ | l2 min. | m1 | m2 | m3 | m4 | m5 | r ≈ at w2 = 0 | s | w1 Stroke | w2 ≈ Adjustable range | ||||||
| 160 | 99 | 11 | 19 | 5 | 16 | 5 | 10 | 35 | 2 | 25 | 11 | ||||||
| 320 | 166 | 20 | 32 | 10.5 | 19 | 7 | 14.3 | 54 | 3 | 35 | 13 | ||||||
| 700 | 217 | 25 | 38 | 9.5 | 41.5 | 9.5 | 19 | 70 | 3.5 | 49 | 26 | ||||||
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
37.06 € ( 44.10 € ) | 7 working days |
37.52 € ( 44.65 € ) | Stock item: 1 working dayAvailable for same-day shipping |
49.42 €26.19 € ( 31.17 € ) | Stock item: 1 working dayAvailable for same-day shipping |
51.82 € ( 61.67 € ) | Stock item: 1 working dayAvailable for same-day shipping |
77.60 € ( 92.34 € ) | Stock item: 1 working dayAvailable for same-day shipping |
80.22 € ( 95.46 € ) | 7 working days |
More Information
Basic information
The GN 851.3 latch type toggle clamps are compact in design and can be used to ensure high holding capacities.
When closing the spanner, a safety hook positively locks onto the body. This prevents the inadvertent or vibration-induced release from the clamping position. To open the safety hook it is unlocked per one-hand operation.
The U-bolt latch can be adjusted within its range.
In addition to the standard lengths for the U-bolt latch shown above, more lengths may be achieved by using series GN 951.1 square U-bolts.
