GANTER

Rotary plates, Aluminium

Rotary plates, Aluminium

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    Order suspended
    900.5-30-41
    900.5-50-67
    900.5-80-105
    900.5-120-145

    Width b

    Length l1

    		Minimum order quantity
    30
    41
    1 pieces
    50
    67
    1 pieces
    80
    105
    1 pieces
    120
    145
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    487.20 €
    ( 579.77 € )
    7 working days
    487.20 €
    ( 579.77 € )
    7 working days
    575.80 €
    ( 685.20 € )
    7 working days
    778.80 €
    ( 926.77 € )
    7 working days
  • 1

    • More Information

    Basic information

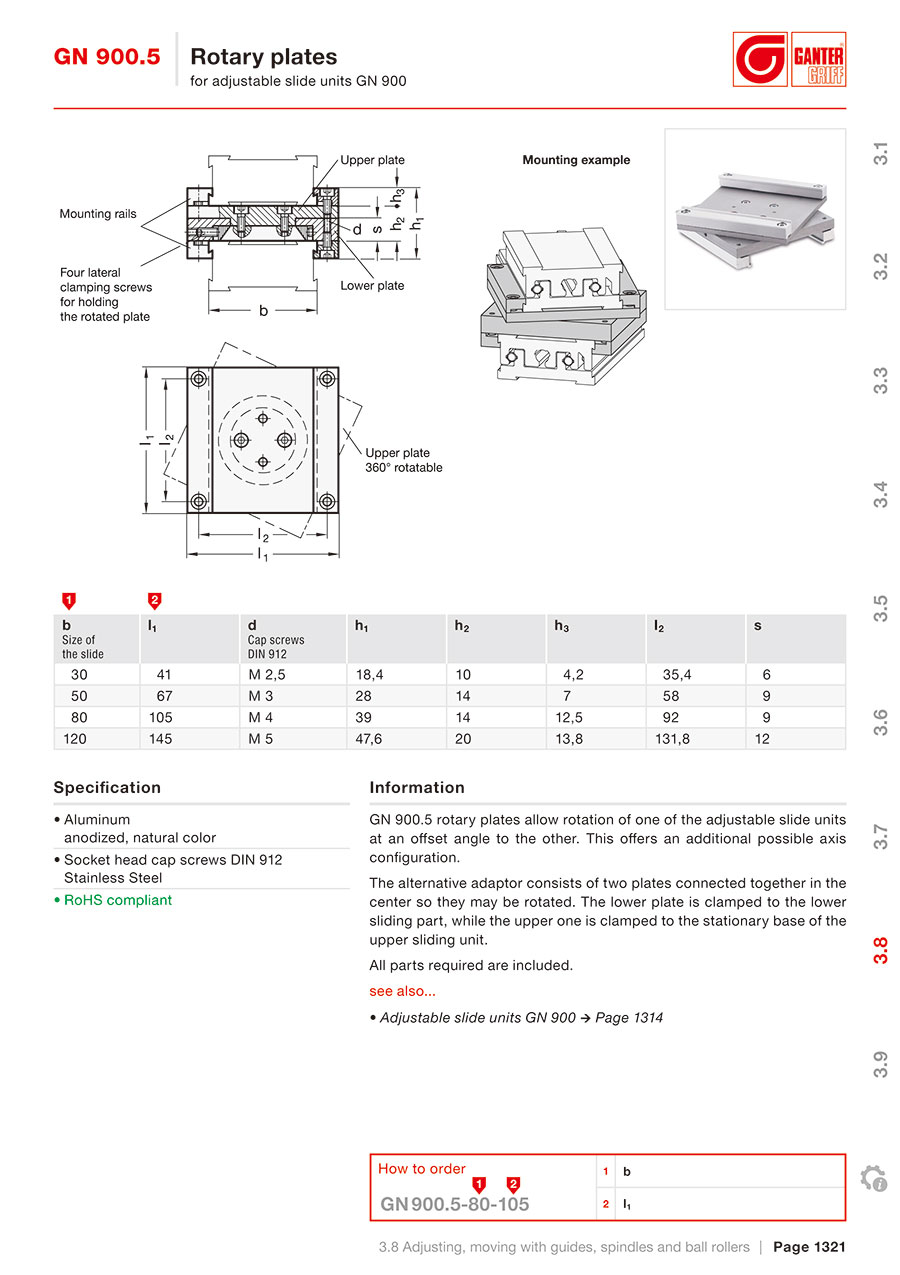

    GN 900.5 rotary plates allow rotation of one of the adjustable slide units at an offset angle to the other. This offers an additional possible axis configuration.
    The alternative adaptor consists of two plates connected together in the center so they may be rotated. The lower plate is clamped to the lower sliding part, while the upper one is clamped to the stationary base of the upper sliding unit.
    All parts required are included.
