GANTER

GANTER

Spring elements GN 513 are universal pressure elements used as detents, positioners or for clamping with spring pressure. The spring loaded nose can be used for a push-on or push-off operation. In addition the spring loaded nose cannot rotate.
At the pulling end the female thread will accept a pulling rod or an operating knob.
Type I with a female thread at the pushing end can be fitted with a special plunger nose.
The spring element can be screwed into a thread at the hexagon on the pulling end or the spanner flats at the pushing end of the plunger.

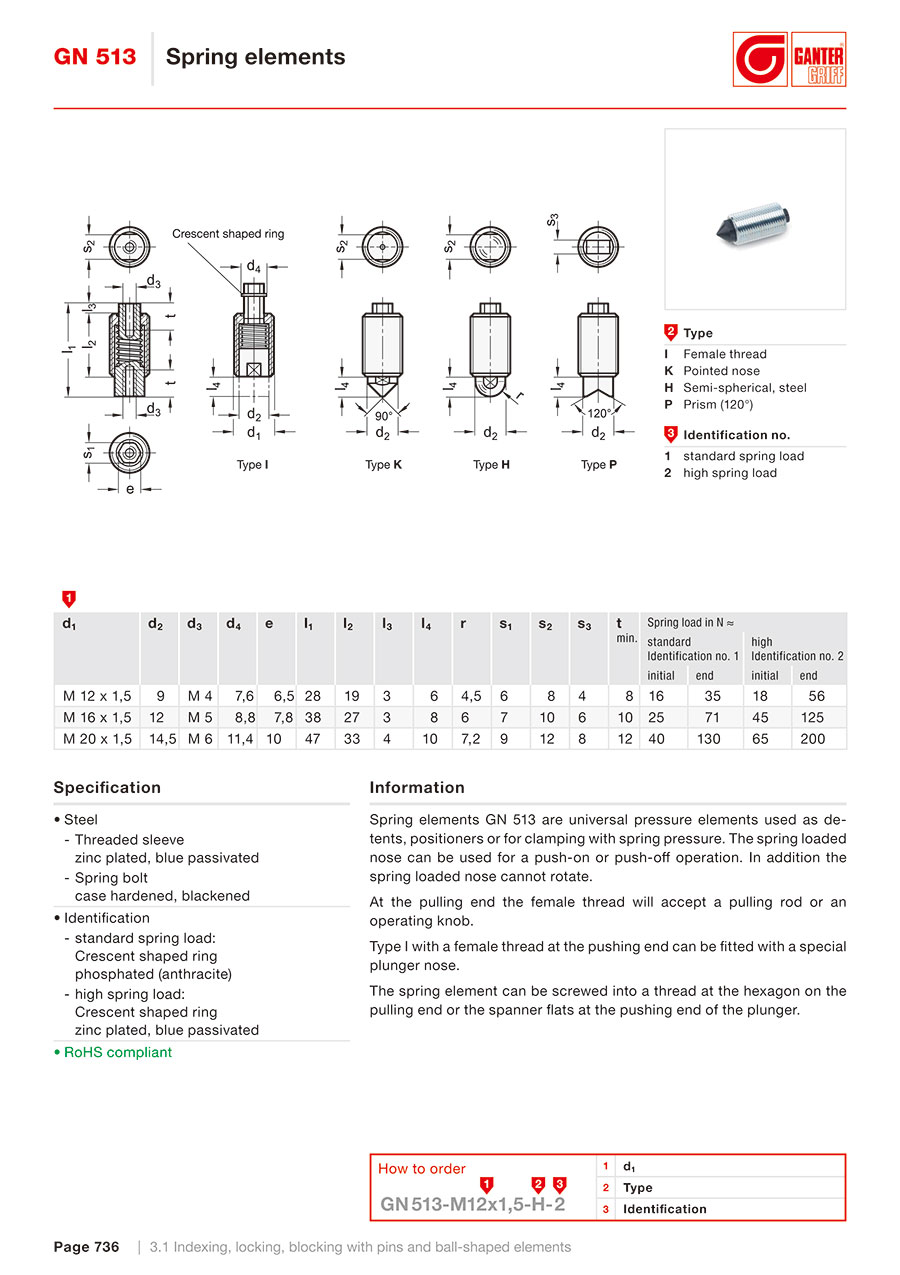

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

GN 513 / Spring Elements

Information


Spring elements GN 513 are universal pressure elements used as detents, positioners or for clamping with spring pressure. The spring loaded nose can be used for a push-on or push-off operation. In addition the spring loaded nose cannot rotate.
At the pulling end the female thread will accept a pulling rod or an operating knob.
Type I with a female thread at the pushing end can be fitted with a special plunger nose.
The spring element can be screwed into a thread at the hexagon on the pulling end or the spanner flats at the pushing end of the plunger.

How to Order

How to order
1d1
2Type
3Identification

Specification

• Steel
 - Threaded sleeve
   Zinc plated, blue passivated
 - Spring bolt
   Case hardened, blackened
• Identification
 - Standard spring load:
   Crescent shaped ring
   Phosphated (anthracite)
 - High spring load:
   Crescent shaped ring
   Zinc plated, blue passivated
• RoHS compliant

Dimensions


d1d2d3d4el1l2l3l4rs1s2s3t min.Spring load in N ≈
              standard Identification no. 1high Identification no. 2
              initialendinitialend
M 12 x 1.59M 47.66.52819364.5684816351856
M 16 x 1.512M 58.87.83827386710610257145125
M 20 x 1.514.5M 611.41047334107.29128124013065200
Data to be displayed
30
45
60
  1. 1
Part Number
513-M12X1,​5-H-1
513-M12X1,​5-H-2
513-M12X1,​5-I-1
513-M12X1,​5-I-2
513-M12X1,​5-K-1
513-M12X1,​5-K-2
513-M12X1,​5-P-1
513-M12X1,​5-P-2
513-M16X1,​5-H-1
513-M16X1,​5-H-2
513-M16X1,​5-I-1
513-M16X1,​5-I-2
513-M16X1,​5-K-1
513-M16X1,​5-K-2
513-M16X1,​5-P-1
513-M16X1,​5-P-2
513-M20X1,​5-H-1
513-M20X1,​5-H-2
513-M20X1,​5-I-1
513-M20X1,​5-I-2
513-M20X1,​5-K-1
513-M20X1,​5-K-2
513-M20X1,​5-P-1
513-M20X1,​5-P-2
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
d1 Type Identification

7.68 €

1 Available Same day

Stock

M 12 x 1,5H, Semi-spherical, Steel1, standard spring load

7.68 €

4.07 €

1 Available Same day

Stock

M 12 x 1,5H, Semi-spherical, Steel2, high spring load

8.08 €

1 Available Same day

Stock

M 12 x 1,5I, Female thread1, standard spring load

8.08 €

1 Available 7 Days M 12 x 1,5I, Female thread2, high spring load

7.62 €

1 Available 7 Days M 12 x 1,5K, Pointed nose1, standard spring load

7.62 €

4.04 €

1 Available Same day

Stock

M 12 x 1,5K, Pointed nose2, high spring load

10.06 €

5.33 €

1 Available Same day

Stock

M 12 x 1,5P, Prism (120°)1, standard spring load

10.06 €

5.33 €

1 Available Same day

Stock

M 12 x 1,5P, Prism (120°)2, high spring load

10.16 €

1 Available 7 Days M 16 x 1,5H, Semi-spherical, Steel1, standard spring load

10.16 €

5.38 €

1 Available Same day

Stock

M 16 x 1,5H, Semi-spherical, Steel2, high spring load

10.26 €

5.44 €

1 Available Same day

Stock

M 16 x 1,5I, Female thread1, standard spring load

10.26 €

1 Available Same day

Stock

M 16 x 1,5I, Female thread2, high spring load

9.92 €

5.26 €

1 Available Same day

Stock

M 16 x 1,5K, Pointed nose1, standard spring load

9.92 €

5.26 €

1 Available Same day

Stock

M 16 x 1,5K, Pointed nose2, high spring load

14.30 €

7.58 €

1 Available Same day

Stock

M 16 x 1,5P, Prism (120°)1, standard spring load

14.30 €

7.58 €

1 Available Same day

Stock

M 16 x 1,5P, Prism (120°)2, high spring load

11.68 €

1 Available 7 Days M 20 x 1,5H, Semi-spherical, Steel1, standard spring load

11.68 €

6.19 €

1 Available Same day

Stock

M 20 x 1,5H, Semi-spherical, Steel2, high spring load

12.36 €

1 Available 7 Days M 20 x 1,5I, Female thread1, standard spring load

12.36 €

1 Available Same day

Stock

M 20 x 1,5I, Female thread2, high spring load

12.70 €

6.73 €

1 Available Same day

Stock

M 20 x 1,5K, Pointed nose1, standard spring load

12.70 €

6.73 €

1 Available Same day

Stock

M 20 x 1,5K, Pointed nose2, high spring load

14.18 €

7.52 €

1 Available Same day

Stock

M 20 x 1,5P, Prism (120°)1, standard spring load

14.18 €

7.52 €

1 Available Same day

Stock

M 20 x 1,5P, Prism (120°)2, high spring load
