    Spring latches

    Spring latches

    Part number:

    Still undefined. 18 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    416-6-38-L1
    416-6-38-R1
    416-6-38-S
    416-8-38-L1
    416-8-38-R1
    416-8-38-S
    416-8-46-L1
    416-8-46-R1
    416-8-46-S
    416-10-38-L1
    Order suspended
    416-10-38-R1
    416-10-38-S
    416-10-46-L1
    416-10-46-R1
    416-10-46-S
    416-12-46-L1
    416-12-46-R1
    416-12-46-S

    Bolt diameter d

    Flange width b1

    Type

    		Minimum order quantity
    6
    38
    L1-Locking / Rest position, via counterclockwise rotation
    1 pieces
    6
    38
    R1-Locking / Rest position, via clockwise rotation
    1 pieces
    6
    38
    S-without locking, without rest position
    1 pieces
    8
    38
    L1-Locking / Rest position, via counterclockwise rotation
    1 pieces
    8
    38
    R1-Locking / Rest position, via clockwise rotation
    1 pieces
    8
    38
    S-without locking, without rest position
    1 pieces
    8
    46
    L1-Locking / Rest position, via counterclockwise rotation
    1 pieces
    8
    46
    R1-Locking / Rest position, via clockwise rotation
    1 pieces
    8
    46
    S-without locking, without rest position
    1 pieces
    10
    38
    L1-Locking / Rest position, via counterclockwise rotation
    1 pieces
    10
    38
    R1-Locking / Rest position, via clockwise rotation
    1 pieces
    10
    38
    S-without locking, without rest position
    1 pieces
    10
    46
    L1-Locking / Rest position, via counterclockwise rotation
    1 pieces
    10
    46
    R1-Locking / Rest position, via clockwise rotation
    1 pieces
    10
    46
    S-without locking, without rest position
    1 pieces
    12
    46
    L1-Locking / Rest position, via counterclockwise rotation
    1 pieces
    12
    46
    R1-Locking / Rest position, via clockwise rotation
    1 pieces
    12
    46
    S-without locking, without rest position
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    7.86 €
    ( 9.35 € )
    4 working days
    7.86 €
    ( 9.35 € )
    3 working days
    7.78 €
    ( 9.26 € )
    Stock item: 1 working dayAvailable for same-day shipping
    7.56 €
    ( 9.00 € )
    7 working days
    7.56 €
    ( 9.00 € )
    7 working days
    7.56 €
    ( 9.00 € )
    Stock item: 1 working dayAvailable for same-day shipping
    10.10 €5.35 €
    ( 6.37 € )
    Stock item: 1 working dayAvailable for same-day shipping
    10.10 €
    ( 12.02 € )
    7 working days
    10.10 €5.35 €
    ( 6.37 € )
    Stock item: 1 working dayAvailable for same-day shipping
    8.04 €
    ( 9.57 € )
    7 working days
    8.04 €
    ( 9.57 € )
    7 working days
    8.08 €4.28 €
    ( 5.09 € )
    Stock item: 1 working dayAvailable for same-day shipping
    9.84 €
    ( 11.71 € )
    7 working days
    9.84 €
    ( 11.71 € )
    Stock item: 1 working dayAvailable for same-day shipping
    9.84 €5.22 €
    ( 6.21 € )
    Stock item: 1 working dayAvailable for same-day shipping
    10.12 €5.36 €
    ( 6.38 € )
    Stock item: 1 working dayAvailable for same-day shipping
    10.12 €5.36 €
    ( 6.38 € )
    Stock item: 1 working dayAvailable for same-day shipping
    10.12 €5.36 €
    ( 6.38 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

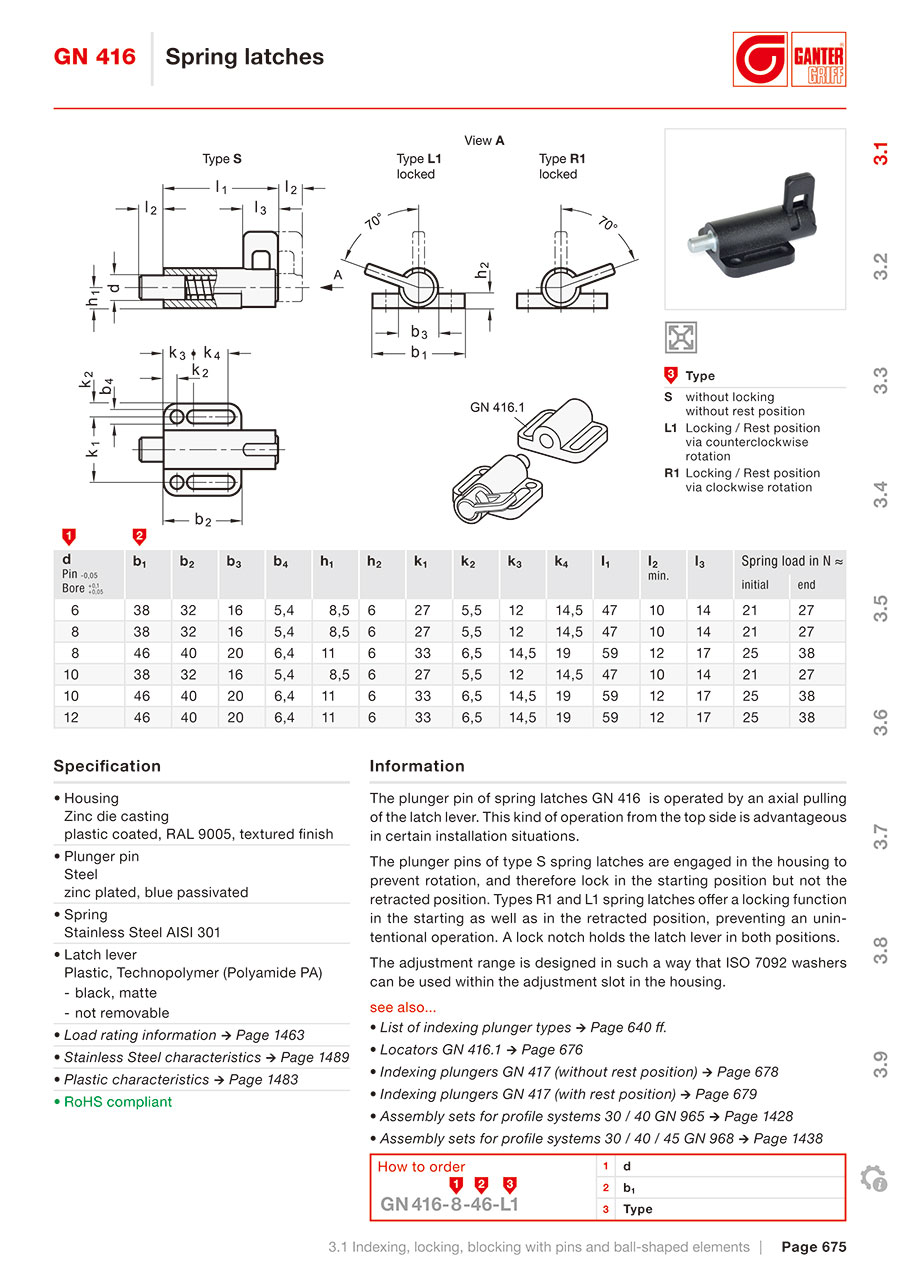

    The plunger of spring latches GN 416 is operated by an axial pulling of the latch lever. This kind of operation from the top side is advantageous in certain installation situations.
    The pins of Type S spring latches are engaged in the housing to prevent rotation, and therefore lock in the starting position but not the retracted position. Types R1 and L1 spring latches offer a locking function in the starting as well as in the retracted position, preventing an unintentional operation. A lock notch holds the latch lever in both positions.
    The adjustment range is designed in such a way that ISO 7092 washers can be used within the adjustment slot in the housing.
