    • GANTER

    Stainless Steel- Angled ball joints

    Stainless Steel- Angled ball joints

    Part number:

    Still undefined. 24 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    71802-8-M5-CN
    71802-8-M5-CSN
    71802-8-M5L-CN
    71802-8-M5L-CSN
    71802-10-M6-CN
    71802-10-M6-CSN
    71802-10-M6L-CN
    71802-10-M6L-CSN
    71802-13-M8-CN
    71802-13-M8-CSN
    71802-13-M8L-CN
    71802-13-M8L-CSN
    71802-16-M10-CN
    71802-16-M10-CSN
    71802-16-M10L-CN
    71802-16-M10L-CSN
    71802-16-M12-CN
    71802-16-M12-CSN
    71802-16-M12L-CN
    71802-16-M12L-CSN
    71802-19-M14F-CN
    71802-19-M14F-CSN
    71802-19-M14FL-CN
    71802-19-M14FL-CSN

    Thread d2

    Connection screw direction

    Allowable Tilt Angle α

    (deg)

    Bore d1

    Type

    		Minimum order quantity
    M5
    Right Screw
    18
    8
    CN- with threaded ball shank without safety catch
    1 pieces
    M5
    Right Screw
    15
    8
    CSN- with threaded ball shank with safety catch
    1 pieces
    M5
    Left Screw
    18
    8
    CN- with threaded ball shank without safety catch
    1 pieces
    M5
    Left Screw
    15
    8
    CSN- with threaded ball shank with safety catch
    1 pieces
    M6
    Right Screw
    18
    10
    CN- with threaded ball shank without safety catch
    1 pieces
    M6
    Right Screw
    15
    10
    CSN- with threaded ball shank with safety catch
    1 pieces
    M6
    Left Screw
    18
    10
    CN- with threaded ball shank without safety catch
    1 pieces
    M6
    Left Screw
    15
    10
    CSN- with threaded ball shank with safety catch
    1 pieces
    M8
    Right Screw
    18
    13
    CN- with threaded ball shank without safety catch
    1 pieces
    M8
    Right Screw
    15
    13
    CSN- with threaded ball shank with safety catch
    1 pieces
    M8
    Left Screw
    18
    13
    CN- with threaded ball shank without safety catch
    1 pieces
    M8
    Left Screw
    15
    13
    CSN- with threaded ball shank with safety catch
    1 pieces
    [M10] M10
    Right Screw
    18
    16
    CN- with threaded ball shank without safety catch
    1 pieces
    [M10] M10
    Right Screw
    15
    16
    CSN- with threaded ball shank with safety catch
    1 pieces
    [M10] M10
    Left Screw
    18
    16
    CN- with threaded ball shank without safety catch
    1 pieces
    [M10] M10
    Left Screw
    15
    16
    CSN- with threaded ball shank with safety catch
    1 pieces
    [M12] M12
    Right Screw
    18
    16
    CN- with threaded ball shank without safety catch
    1 pieces
    [M12] M12
    Right Screw
    15
    16
    CSN- with threaded ball shank with safety catch
    1 pieces
    [M12] M12
    Left Screw
    18
    16
    CN- with threaded ball shank without safety catch
    1 pieces
    [M12] M12
    Left Screw
    15
    16
    CSN- with threaded ball shank with safety catch
    1 pieces
    [M14] M14F
    Right Screw
    18
    19
    CN- with threaded ball shank without safety catch
    1 pieces
    [M14] M14F
    Right Screw
    15
    19
    CSN- with threaded ball shank with safety catch
    1 pieces
    [M14] M14F
    Left Screw
    18
    19
    CN- with threaded ball shank without safety catch
    1 pieces
    [M14] M14F
    Left Screw
    15
    19
    CSN- with threaded ball shank with safety catch
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    16.26 €
    ( 19.35 € )
    Stock item: 1 working dayAvailable for same-day shipping
    16.52 €8.76 €
    ( 10.42 € )
    Stock item: 1 working dayAvailable for same-day shipping
    17.72 €9.39 €
    ( 11.17 € )
    Stock item: 1 working dayAvailable for same-day shipping
    18.10 €9.59 €
    ( 11.41 € )
    Stock item: 1 working dayAvailable for same-day shipping
    17.20 €
    ( 20.47 € )
    7 working days
    17.70 €
    ( 21.06 € )
    7 working days
    18.86 €10.00 €
    ( 11.90 € )
    Stock item: 1 working dayAvailable for same-day shipping
    19.26 €
    ( 22.92 € )
    7 working days
    18.60 €
    ( 22.13 € )
    7 working days
    18.88 €10.01 €
    ( 11.91 € )
    Stock item: 1 working dayAvailable for same-day shipping
    20.46 €10.84 €
    ( 12.90 € )
    Stock item: 1 working dayAvailable for same-day shipping
    20.76 €11.00 €
    ( 13.09 € )
    Stock item: 1 working dayAvailable for same-day shipping
    35.40 €
    ( 42.13 € )
    7 working days
    35.50 €18.82 €
    ( 22.40 € )
    Stock item: 1 working dayAvailable for same-day shipping
    38.88 €
    ( 46.27 € )
    7 working days
    39.06 €20.70 €
    ( 24.63 € )
    Stock item: 1 working dayAvailable for same-day shipping
    37.32 €19.78 €
    ( 23.54 € )
    Stock item: 1 working dayAvailable for same-day shipping
    37.56 €19.91 €
    ( 23.69 € )
    Stock item: 1 working dayAvailable for same-day shipping
    41.02 €21.74 €
    ( 25.87 € )
    Stock item: 1 working dayAvailable for same-day shipping
    41.32 €21.90 €
    ( 26.06 € )
    Stock item: 1 working dayAvailable for same-day shipping
    71.88 €38.10 €
    ( 45.34 € )
    Stock item: 1 working dayAvailable for same-day shipping
    74.46 €39.46 €
    ( 46.96 € )
    Stock item: 1 working dayAvailable for same-day shipping
    75.82 €40.18 €
    ( 47.81 € )
    Stock item: 1 working dayAvailable for same-day shipping
    80.40 €42.61 €
    ( 50.71 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

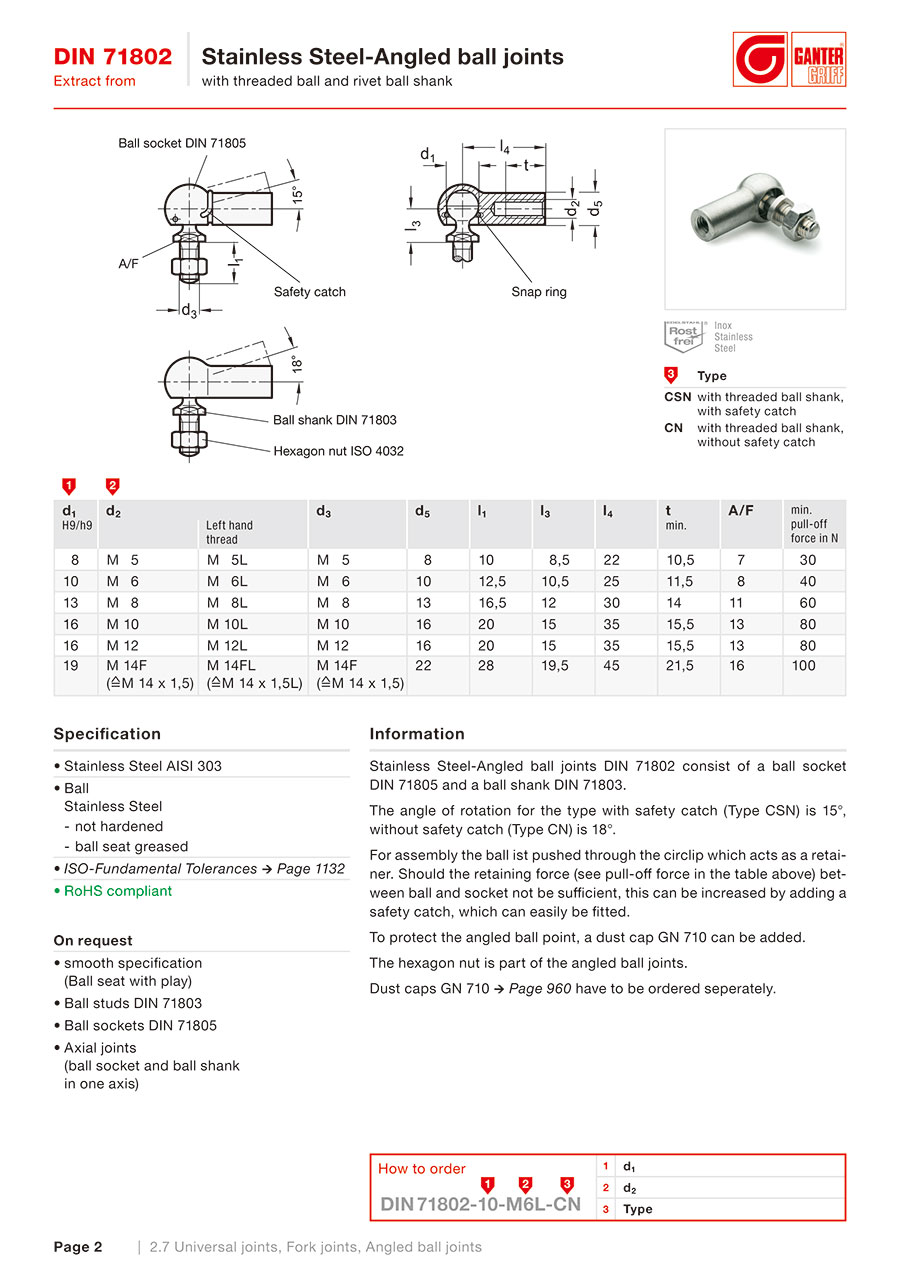

    Stainless Steel-Angled ball joints DIN 71802 consist of a ball socket DIN 71805 and a ball shank DIN 71803.
    The angle of rotation for the type with safety catch (Type CSN) is 15°, without safety catch (Type CN) is 18°.
    For assembly the ball ist pushed through the circlip which acts as a retainer. Should the retaining force (see pull-off force in the table above) between ball and socket not be sufficient, this can be increased by adding a safety catch, which can easily be fitted.
    To protect the angled ball point, a dust cap GN 710 can be added.
    The hexagon nut is part of the angled ball joints.
    Dust caps GN 710 have to be ordered seperately.
