Swivel clamp connectors
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
| Order suspended |
| Order suspended |
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
53.94 €28.59 € ( 34.02 € ) | Stock item: 1 working dayAvailable for same-day shipping |
54.40 € ( 64.74 € ) | 7 working days |
54.48 € ( 64.83 € ) | 7 working days |
54.40 € ( 64.74 € ) | 7 working days |
54.20 € ( 64.50 € ) | 7 working days |
54.40 € ( 64.74 € ) | 7 working days |
54.20 € ( 64.50 € ) | 7 working days |
54.40 € ( 64.74 € ) | 7 working days |
54.22 € ( 64.52 € ) | 7 working days |
54.40 € ( 64.74 € ) | 7 working days |
54.22 € ( 64.52 € ) | 7 working days |
54.40 € ( 64.74 € ) | 7 working days |
53.00 € ( 63.07 € ) | 7 working days |
52.94 € ( 63.00 € ) | 7 working days |
54.48 € ( 64.83 € ) | 7 working days |
54.14 € ( 64.43 € ) | 7 working days |
More Information
Basic information

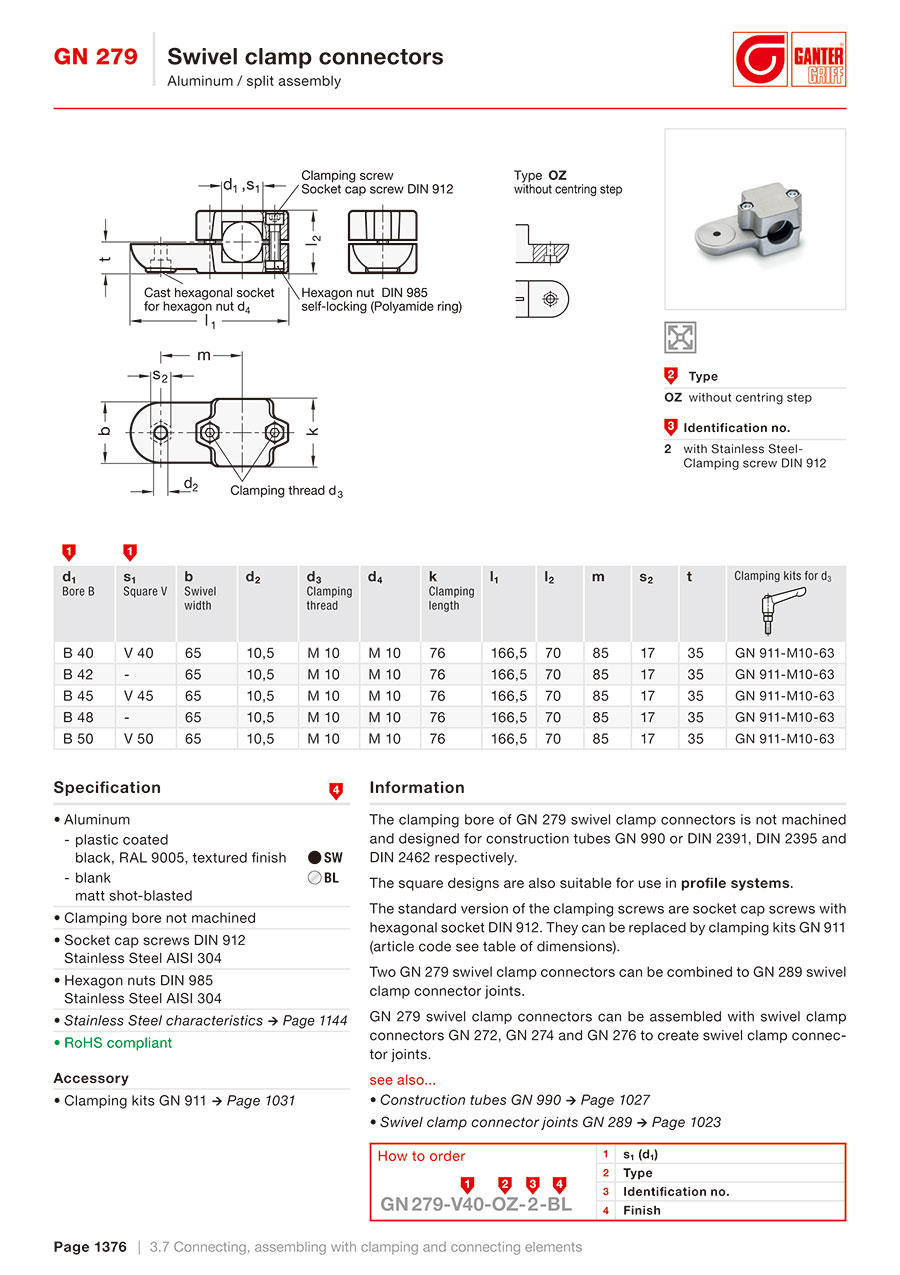

The clamping bore of GN 279 swivel clamp connectors is not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462 respectively.
The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit GN 911 (article code see table of dimensions).
Two GN 279 swivel clamp connectors can be combined to GN 289 swivel clamp connector joints.
GN 279 swivel clamp connectors can be assembled with swivel clamp connectors GN 272, GN 274 and GN 276 to create swivel clamp connector joints.
