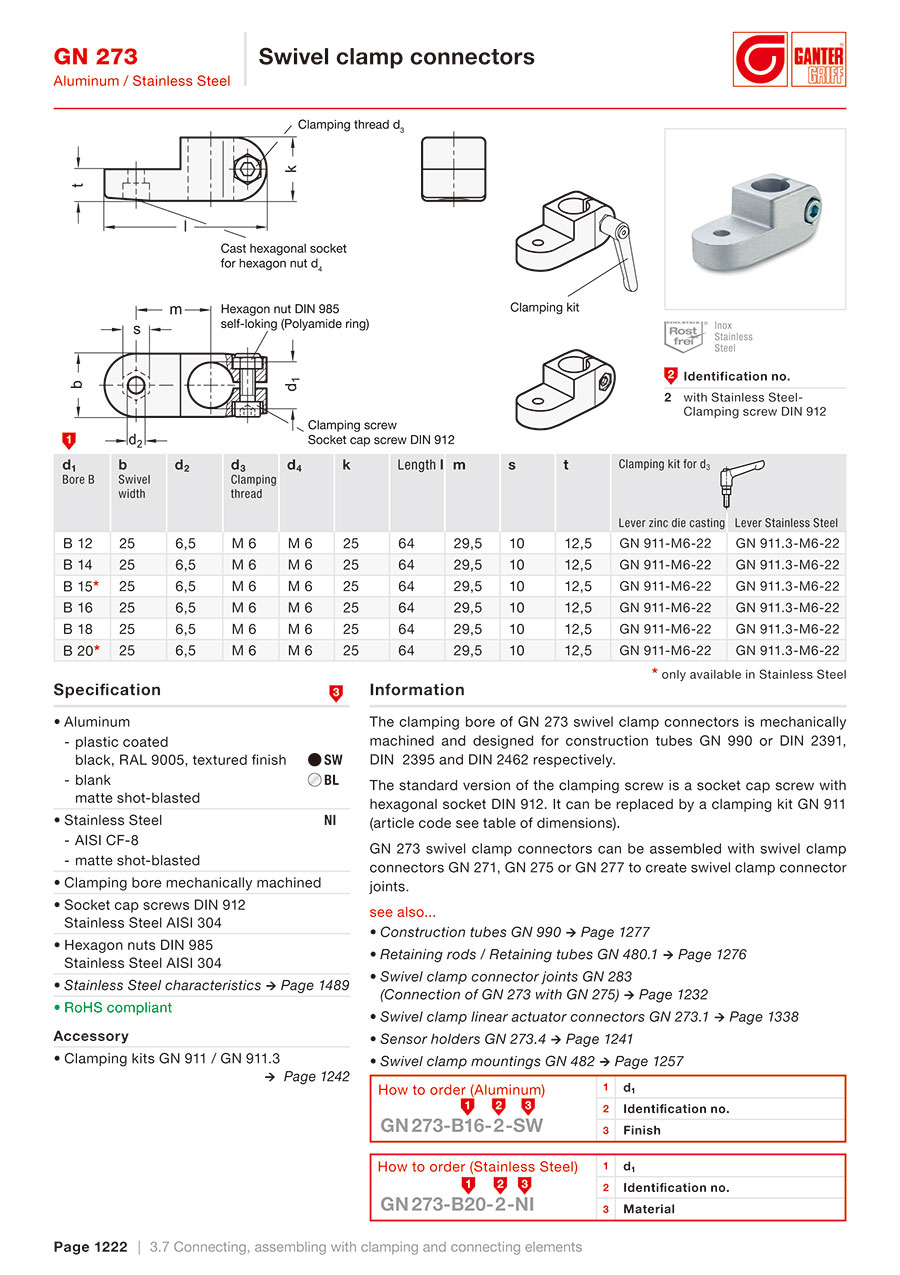

Swivel Clamp Connectors / Aluminium, Stainless Steel / GN 273 / 2, with Stainless Steel-clamping screw DIN 912

Part number:

Still undefined. 14 possible part numbers found.
Quantity:

Part number list

Number of items

Bore d1

(mm)

Material

Finish

Weight

(kg)

Minimum order quantity
12
Aluminum
BL
-
1 pieces
B 12
Stainless Steel
NI
0.156
1 pieces
12
Aluminum
SW
-
1 pieces
14
Aluminum
BL
-
1 pieces
B 14
Stainless Steel
NI
0.149
1 pieces
14
Aluminum
SW
-
1 pieces
B 15
Stainless Steel
NI
0.147
1 pieces
16
Aluminum
BL
-
1 pieces
B 16
Stainless Steel
NI
0.143
1 pieces
16
Aluminum
SW
-
1 pieces
18
Aluminum
BL
-
1 pieces
B 18
Stainless Steel
NI
0.135
1 pieces
18
Aluminum
SW
-
1 pieces
B 20
Stainless Steel
NI
0.126
1 pieces
Unit price (excluding VAT)(Unit price including VAT)
Standard shipping days
20.38 €
( 24.25 € )
7 working days
42.74 €
( 50.86 € )
7 working days
20.40 €
( 24.28 € )
7 working days
20.38 €
( 24.25 € )
7 working days
42.96 €
( 51.12 € )
7 working days
20.40 €
( 24.28 € )
7 working days
42.96 €
( 51.12 € )
7 working days
20.38 €
( 24.25 € )
7 working days
42.96 €
( 51.12 € )
7 working days
20.40 €
( 24.28 € )
7 working days
20.38 €
( 24.25 € )
7 working days
43.16 €
( 51.36 € )
7 working days
20.40 €
( 24.28 € )
7 working days
43.36 €
( 51.60 € )
7 working days

More Information

Basic information

The clamping bore of GN 273 swivel clamp connectors is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462 respectively.

The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit GN 911 (article code see table of dimensions).

GN 273 swivel clamp connectors can be assembled with swivel clamp connectors GN 271, GN 275 or GN 277 to create swivel clamp connector joints.
