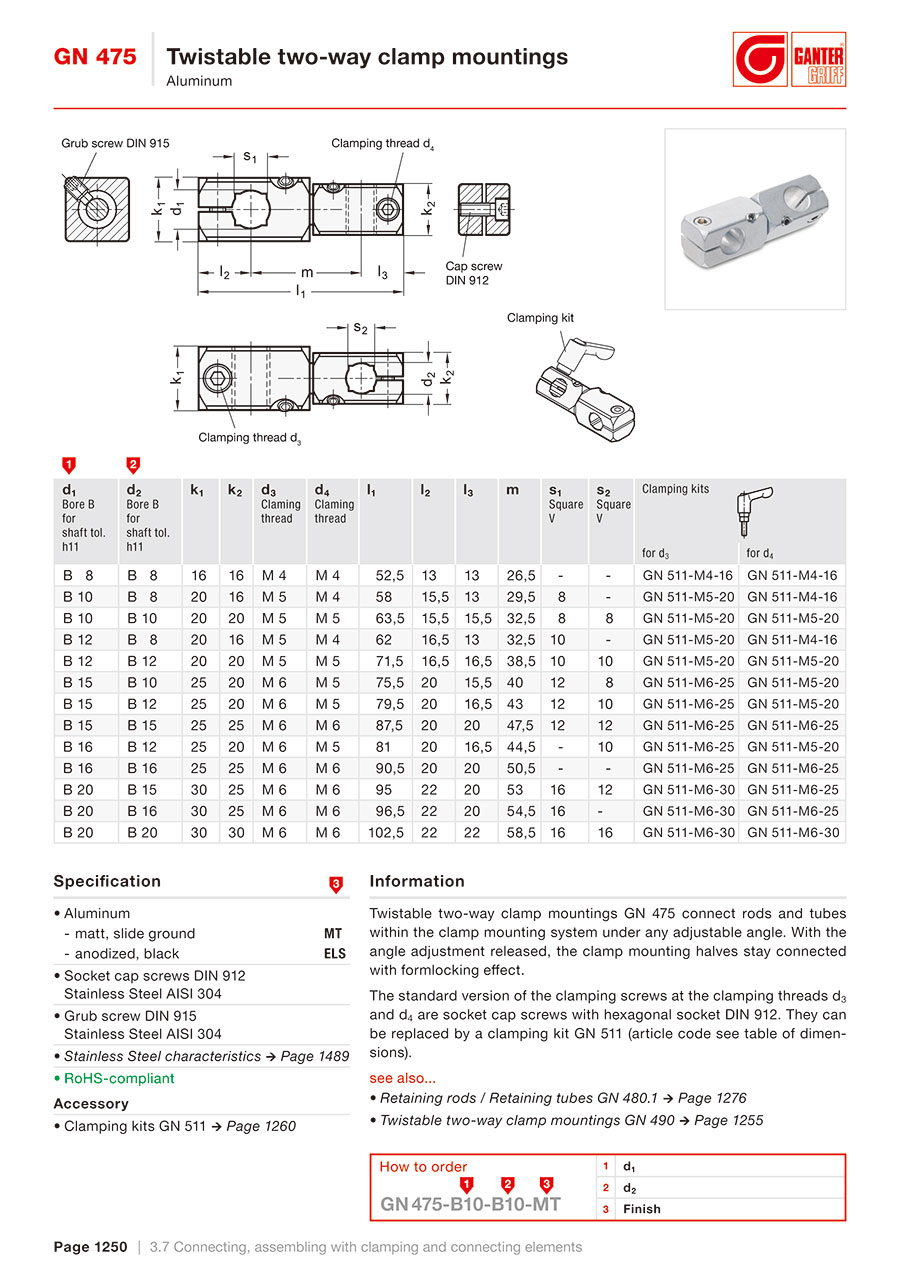

Twistable two-way clamp mountings, Aluminium

Promotional pricing ends 31/03/2023
Volume Discount

Twistable two-way clamp mountings GN 475 connect rods and tubes within the clamp mounting system under any adjustable angle. With the angle adjustment released, the clamp mounting halves stay connected with formlocking effect.
The standard version of the clamping screws at the clamping threads d3 and d4are a socket cap screws with hexagonal socket DIN 912.They can be replaced by an adjustable clamping lever GN 511 (description see table of dimensions).

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Products homepage

Data to be displayed: 30; 45; 60

Part Number
475-B8-B8-ELS
475-B8-B8-MT
475-B10-B8-ELS
475-B10-B8-MT
475-B10-B10-ELS
475-B10-B10-MT
475-B12-B8-ELS
475-B12-B8-MT
475-B12-B12-ELS
475-B12-B12-MT
475-B15-B10-ELS
475-B15-B10-MT
475-B15-B12-ELS
475-B15-B12-MT
475-B15-B15-ELS
475-B15-B15-MT
475-B16-B12-ELS
475-B16-B12-MT
475-B16-B16-ELS
475-B16-B16-MT
475-B20-B15-ELS
475-B20-B15-MT
475-B20-B16-ELS
475-B20-B16-MT
475-B20-B20-ELS
475-B20-B20-MT

Standard Unit Price	Minimum order quantity	Volume Discount	Standard Shipping Days ?	Bore d1 (mm)	Bore d2 (mm)	Finish
30.14 € 21.10 €	1	Available	Same day Stock	8	8	ELS, anodized black
26.77 € 18.74 €	1	Available	Same day Stock	8	8	MT, matte, tumbled finish
32.12 € 22.48 €	1	Available	Same day Stock	10	8	ELS, anodized black
28.67 €	1	Available	Same day Stock	10	8	MT, matte, tumbled finish
33.81 €	1	Available	7 Days	10	10	ELS, anodized black
30.40 € 21.28 €	1	Available	Same day Stock	10	10	MT, matte, tumbled finish
33.02 €	1	Available	7 Days	12	8	ELS, anodized black
29.59 € 20.71 €	1	Available	Same day Stock	12	8	MT, matte, tumbled finish
35.73 €	1	Available	4 Days	12	12	ELS, anodized black
32.25 €	1	Available	7 Days	12	12	MT, matte, tumbled finish
37.25 € 26.08 €	1	Available	Same day Stock	15	10	ELS, anodized black
33.33 € 23.33 €	1	Available	Same day Stock	15	10	MT, matte, tumbled finish
37.99 € 26.59 €	1	Available	Same day Stock	15	12	ELS, anodized black
34.25 € 23.98 €	1	Available	Same day Stock	15	12	MT, matte, tumbled finish
40.19 € 28.13 €	1	Available	Same day Stock	15	15	ELS, anodized black
35.84 € 25.09 €	1	Available	Same day Stock	15	15	MT, matte, tumbled finish
36.61 €	1	Available	7 Days	16	12	ELS, anodized black
32.74 € 22.92 €	1	Available	Same day Stock	16	12	MT, matte, tumbled finish
37.20 € 26.04 €	1	Available	Same day Stock	16	16	ELS, anodized black
32.96 €	1	Available	Same day Stock	16	16	MT, matte, tumbled finish
43.10 € 30.17 €	1	Available	Same day Stock	20	15	ELS, anodized black
38.54 € 26.98 €	1	Available	Same day Stock	20	15	MT, matte, tumbled finish
41.60 € 29.12 €	1	Available	Same day Stock	20	16	ELS, anodized black
37.09 € 25.96 €	1	Available	Same day Stock	20	16	MT, matte, tumbled finish
46.44 €	1	Available	Same day Stock	20	20	ELS, anodized black
41.45 € 29.02 €	1	Available	Same day Stock	20	20	MT, matte, tumbled finish
