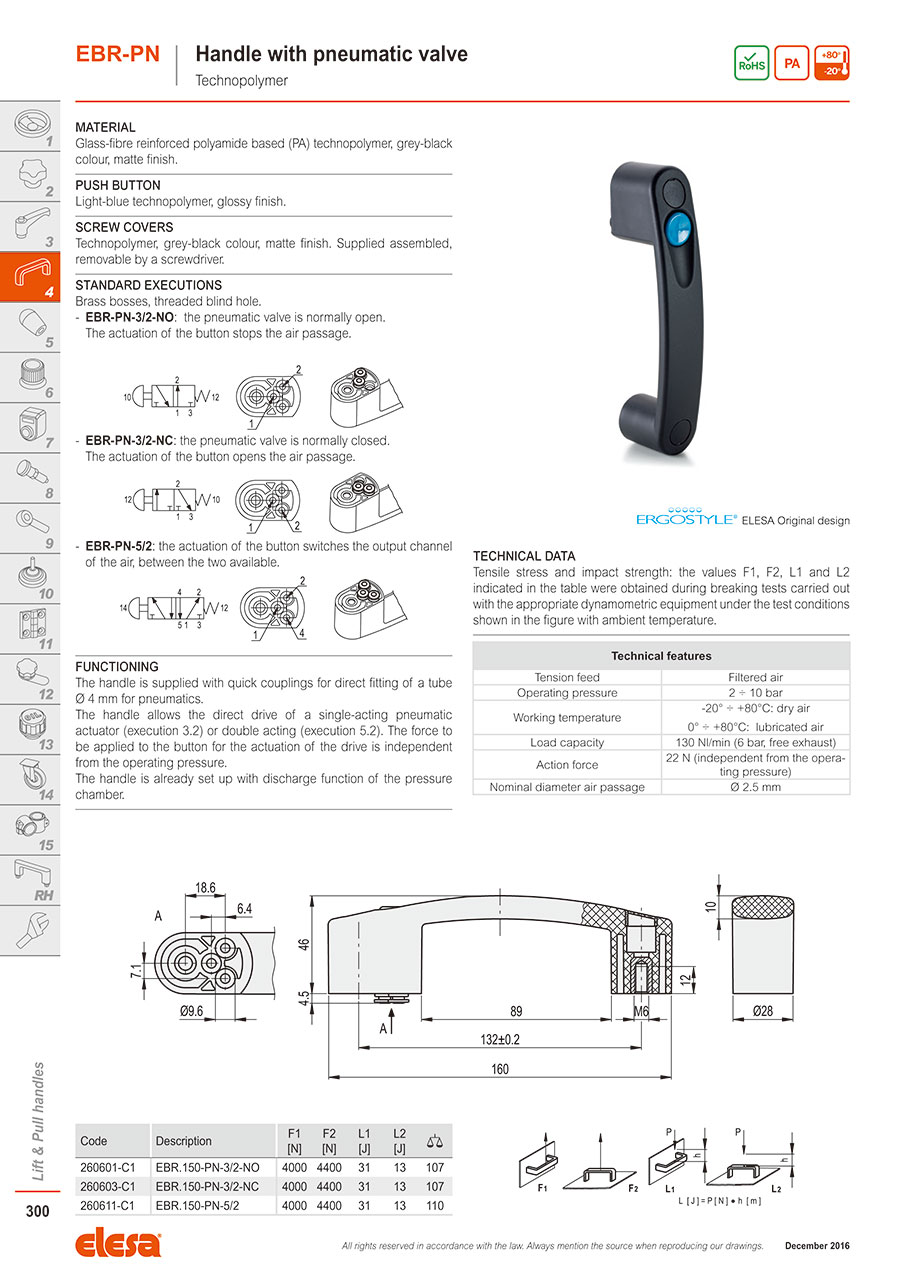

EBR-PN - Handle with pneumatic valve -Technopolymer

EBR-PN - Handle with pneumatic valve -Technopolymer

The handle is supplied with quick couplings for direct fitting of a tube Ø 4 mm for pneumatics.
The handle allows the direct drive of a single-acting pneumatic actuator (execution 3.2) or double acting (execution 5.2). The force to be applied to the button for the actuation of the drive is independent from the operating pressure.
The handle is already set up with discharge function of the pressure chamber.

PDF

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
260601-C1
260603-C1
260611-C1
Part NumberStandard Unit PriceVolume DiscountShipping Days?Description

53.32 €

Same day

Stock

EBR.150-PN-3/2-NO

53.32 €

Same day

Stock

EBR.150-PN-3/2-NC

55.58 €

Same day

Stock

EBR.150-PN-5/2

Loading...

  1. 1

Basic information

Material Technopolymer force 1 4000 force 2 4400
Hole M6 Wheel base 132 work 1 31
work 2 13 High performing lines Ergostyle Type of assembly Blind holes
