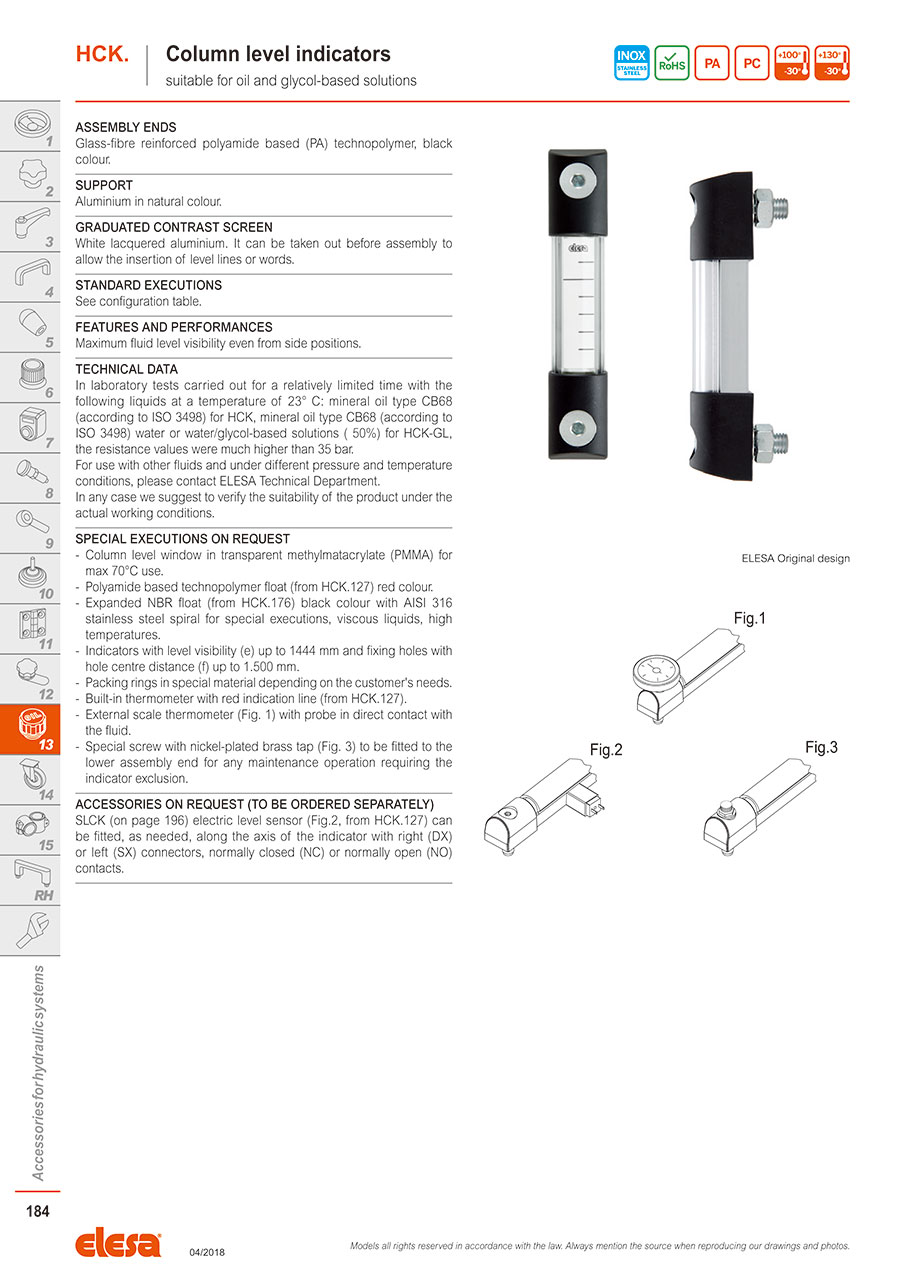

HCK. - Column level indicators -with or without transparent protection technopolymer
- Promotional pricing ends 31/12/2024
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | f (mm) | A | B | C | D | d | d' | Diameter | e | f' | L | l1 | l2 | Material | torque 1 | r | Sub execution | Description | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
30.93 € | 1 | Available | 4 Days | 76 | 20 | 33 | 33 | - | M10 | 10.5 | M10 | - | 76±0.2 | 113 | 35.5 | 42 | Technopolymer | 12 | 18.5 | HCK. | HCK.76-M10 | - | |
26.40 € | 1 | Available | 4 Days | 76 | 20 | 33 | 33 | - | M10 | 10.5 | M10 | - | 76±0.2 | 113 | 35.5 | 42 | Technopolymer | 12 | 18.5 | HCK-NP | HCK.76-M10-NP | - | |
39.82 € | 1 | Available | 1 Day | 127 | 20 | 33 | 33 | - | M12 | 12.5 | M12 | - | 127±0.5 | 164 | 46.5 | 71 | Technopolymer | 12 | 18.5 | HCK. | HCK.127-M12 | - | |
34.06 € | 1 | Available | 1 Day | 127 | 20 | 33 | 33 | - | M12 | 12.5 | M12 | - | 127±0.5 | 164 | 46.5 | 71 | Technopolymer | 12 | 18.5 | HCK-NP | HCK.127-M12-NP | - | |
44.09 € | 1 | Available | 1 Day | 176 | 20 | 33 | 33 | - | M12 | 12.5 | M12 | - | 176±0.5 | 213 | 46.5 | 120 | Technopolymer | 12 | 18.5 | HCK. | HCK.176-M12 | - | |
37.73 € | 1 | Available | 1 Day | 176 | 20 | 33 | 33 | - | M12 | 12.5 | M12 | - | 176±0.5 | 213 | 46.5 | 120 | Technopolymer | 12 | 18.5 | HCK-NP | HCK.176-M12-NP | - | |
52.78 € | 1 | Available | 1 Day | 254 | 20 | 33 | 33 | - | M12 | 12.5 | M12 | - | 254±0.5 | 291 | 46.5 | 198 | Technopolymer | 12 | 18.5 | HCK. | HCK.254-M12 | - | |
44.22 € | 1 | Available | 1 Day | 254 | 20 | 33 | 33 | - | M12 | 12.5 | M12 | - | 254±0.5 | 291 | 46.5 | 198 | Technopolymer | 12 | 18.5 | HCK-NP | HCK.254-M12-NP | - | |
65.87 € | 1 | Available | 1 Day | 381 | 20 | 33 | 33 | - | M12 | 12.5 | M12 | - | 381±0.5 | 418 | 46.5 | 325 | Technopolymer | 12 | 18.5 | HCK. | HCK.381-M12 | - | |
53.09 € | 1 | Available | 1 Day | 381 | 20 | 33 | 33 | - | M12 | 12.5 | M12 | - | 381±0.5 | 418 | 46.5 | 325 | Technopolymer | 12 | 18.5 | HCK-NP | HCK.381-M12-NP | - | |
79.22 € | 1 | Available | 1 Day | 508 | 20 | 33 | 33 | - | M12 | 12.5 | M12 | - | 508±0.5 | 545 | 46.5 | 452 | Technopolymer | 12 | 18.5 | HCK. | HCK.508-M12 | - | |
60.15 € 42.11 € | 1 | Available |
Same day
Stock | 508 | 20 | 33 | 33 | - | M12 | 12.5 | M12 | - | 508±0.5 | 545 | 46.5 | 452 | Technopolymer | 12 | 18.5 | HCK-NP | HCK.508-M12-NP | - | |
49.37 € | 1 | Available | 4 Days | 76 | - | - | 12 | M10 | - | 10.5 | - | 42 | 76 ±0.2 | 113 | 35.5 | - | - | - | - | - | HCK.76-ZN-M10-FKM-GL-P | 183 | |
54.12 € | 1 | Available | 4 Days | 76 | - | - | 12 | M10 | - | 10.5 | - | 42 | 76 ±0.2 | 113 | 35.5 | - | - | - | - | - | HCK.76-SST-M10-NBR-GL-P | 183 | |
42.99 € | 1 | Available | 4 Days | 127 | - | - | 12 | M12 | - | 12.5 | - | 71 | 127±0.5 | 164 | 46.5 | - | - | - | - | - | HCK.127-ZN-M12-FKM-PC-P | 220 | |
37.21 € | 1 | Available | 4 Days | 127 | - | - | 12 | M12 | - | 12.5 | - | 71 | 127±0.5 | 164 | 46.5 | - | - | - | - | - | HCK.127-ZN-M12-FKM-PC-NP | 220 | |
50.25 € | 1 | Available | 4 Days | 127 | - | - | 12 | M12 | - | 12.5 | - | 71 | 127±0.5 | 164 | 46.5 | - | - | - | - | - | HCK.127-ZN-M12-FKM-GL-P | 220 | |
51.39 € | 1 | Available | 4 Days | 127 | - | - | 12 | M12 | - | 12.5 | - | 71 | 127±0.5 | 164 | 46.5 | - | - | - | - | - | HCK.127-SST-M12-NBR-PC-P | 220 | |
45.41 € | 1 | Available | 4 Days | 127 | - | - | 12 | M12 | - | 12.5 | - | 71 | 127±0.5 | 164 | 46.5 | - | - | - | - | - | HCK.127-SST-M12-NBR-PC-NP | 220 | |
55.91 € | 1 | Available | 4 Days | 127 | - | - | 12 | M12 | - | 12.5 | - | 71 | 127±0.5 | 164 | 46.5 | - | - | - | - | - | HCK.127-SST-M12-NBR-GL-P | 220 | |
54.76 € | 1 | Available | 4 Days | 127 | - | - | 12 | M12 | - | 12.5 | - | 71 | 127±0.5 | 164 | 46.5 | - | - | - | - | - | HCK.127-SST-M12-FKM-PC-P | 220 | |
48.69 € | 1 | Available | 4 Days | 127 | - | - | 12 | M12 | - | 12.5 | - | 71 | 127±0.5 | 164 | 46.5 | - | - | - | - | - | HCK.127-SST-M12-FKM-PC-NP | 220 | |
46.77 € | 1 | Available | 4 Days | 176 | - | - | 12 | M12 | - | 12.5 | - | 120 | 176±0.5 | 213 | 46.5 | - | - | - | - | - | HCK.176-ZN-M12-FKM-PC-P | 250 | |
41.43 € | 1 | Available | 4 Days | 176 | - | - | 12 | M12 | - | 12.5 | - | 120 | 176±0.5 | 213 | 46.5 | - | - | - | - | - | HCK.176-ZN-M12-FKM-PC-NP | 250 | |
56.89 € | 1 | Available | 4 Days | 176 | - | - | 12 | M12 | - | 12.5 | - | 120 | 176±0.5 | 213 | 46.5 | - | - | - | - | - | HCK.176-ZN-M12-FKM-GL-P | 250 | |
54.96 € | 1 | Available | 4 Days | 176 | - | - | 12 | M12 | - | 12.5 | - | 120 | 176±0.5 | 213 | 46.5 | - | - | - | - | - | HCK.176-SST-M12-NBR-PC-P | 250 | |
49.59 € | 1 | Available | 4 Days | 176 | - | - | 12 | M12 | - | 12.5 | - | 120 | 176±0.5 | 213 | 46.5 | - | - | - | - | - | HCK.176-SST-M12-NBR-PC-NP | 250 | |
60.35 € | 1 | Available | 4 Days | 176 | - | - | 12 | M12 | - | 12.5 | - | 120 | 176±0.5 | 213 | 46.5 | - | - | - | - | - | HCK.176-SST-M12-NBR-GL-P | 250 | |
58.21 € | 1 | Available | 4 Days | 176 | - | - | 12 | M12 | - | 12.5 | - | 120 | 176±0.5 | 213 | 46.5 | - | - | - | - | - | HCK.176-SST-M12-FKM-PC-P | 250 | |
52.87 € | 1 | Available | 4 Days | 176 | - | - | 12 | M12 | - | 12.5 | - | 120 | 176±0.5 | 213 | 46.5 | - | - | - | - | - | HCK.176-SST-M12-FKM-PC-NP | 250 | |
55.99 € | 1 | Available | 4 Days | 254 | - | - | 12 | M12 | - | 12.5 | - | 198 | 254±0.5 | 291 | 46.5 | - | - | - | - | - | HCK.254-ZN-M12-FKM-PC-P | 298 | |
47.50 € | 1 | Available | 4 Days | 254 | - | - | 12 | M12 | - | 12.5 | - | 198 | 254±0.5 | 291 | 46.5 | - | - | - | - | - | HCK.254-ZN-M12-FKM-PC-NP | 298 | |
68.31 € | 1 | Available | 4 Days | 254 | - | - | 12 | M12 | - | 12.5 | - | 198 | 254±0.5 | 291 | 46.5 | - | - | - | - | - | HCK.254-ZN-M12-FKM-GL-P | 298 | |
66.29 € | 1 | Available | 4 Days | 254 | - | - | 12 | M12 | - | 12.5 | - | 198 | 254±0.5 | 291 | 46.5 | - | - | - | - | - | HCK.254-SST-M12-NBR-PC-P | 298 | |
55.64 € | 1 | Available | 4 Days | 254 | - | - | 12 | M12 | - | 12.5 | - | 198 | 254±0.5 | 291 | 46.5 | - | - | - | - | - | HCK.254-SST-M12-NBR-PC-NP | 298 | |
71.61 € | 1 | Available | 4 Days | 254 | - | - | 12 | M12 | - | 12.5 | - | 198 | 254±0.5 | 291 | 46.5 | - | - | - | - | - | HCK.254-SST-M12-NBR-GL-P | 298 | |
69.76 € | 1 | Available | 4 Days | 254 | - | - | 12 | M12 | - | 12.5 | - | 198 | 254±0.5 | 291 | 46.5 | - | - | - | - | - | HCK.254-SST-M12-FKM-PC-P | 298 | |
58.92 € | 1 | Available | 4 Days | 254 | - | - | 12 | M12 | - | 12.5 | - | 198 | 254±0.5 | 291 | 46.5 | - | - | - | - | - | HCK.254-SST-M12-FKM-PC-NP | 298 | |
70.38 € | 1 | Available | 4 Days | 381 | - | - | 12 | M12 | - | 12.5 | - | 325 | 381±0.5 | 418 | 46.5 | - | - | - | - | - | HCK.381-ZN-M12-FKM-PC-P | 377 | |
56.72 € | 1 | Available | 4 Days | 381 | - | - | 12 | M12 | - | 12.5 | - | 325 | 381±0.5 | 418 | 46.5 | - | - | - | - | - | HCK.381-ZN-M12-FKM-PC-NP | 377 | |
85.91 € | 1 | Available | 4 Days | 381 | - | - | 12 | M12 | - | 12.5 | - | 325 | 381±0.5 | 418 | 46.5 | - | - | - | - | - | HCK.381-ZN-M12-FKM-GL-P | 377 | |
81.58 € | 1 | Available | 4 Days | 381 | - | - | 12 | M12 | - | 12.5 | - | 325 | 381±0.5 | 418 | 46.5 | - | - | - | - | - | HCK.381-SST-M12-NBR-PC-P | 377 | |
65.40 € | 1 | Available | 4 Days | 381 | - | - | 12 | M12 | - | 12.5 | - | 325 | 381±0.5 | 418 | 46.5 | - | - | - | - | - | HCK.381-SST-M12-NBR-PC-NP | 377 | |
91.04 € | 1 | Available | 4 Days | 381 | - | - | 12 | M12 | - | 12.5 | - | 325 | 381±0.5 | 418 | 46.5 | - | - | - | - | - | HCK.381-SST-M12-NBR-GL-P | 377 | |
85.36 € | 1 | Available | 4 Days | 381 | - | - | 12 | M12 | - | 12.5 | - | 325 | 381±0.5 | 418 | 46.5 | - | - | - | - | - | HCK.381-SST-M12-FKM-PC-P | 377 | |
68.88 € | 1 | Available | 4 Days | 381 | - | - | 12 | M12 | - | 12.5 | - | 325 | 381±0.5 | 418 | 46.5 | - | - | - | - | - | HCK.381-SST-M12-FKM-PC-NP | 377 | |
84.13 € | 1 | Available | 4 Days | 508 | - | - | 12 | M12 | - | 12.5 | - | 452 | 508±0.5 | 545 | 46.5 | - | - | - | - | - | HCK.508-ZN-M12-FKM-PC-P | 455 | |
63.12 € | 1 | Available | 4 Days | 508 | - | - | 12 | M12 | - | 12.5 | - | 452 | 508±0.5 | 545 | 46.5 | - | - | - | - | - | HCK.508-ZN-M12-FKM-PC-NP | 455 | |
107.91 € | 1 | Available | 4 Days | 508 | - | - | 12 | M12 | - | 12.5 | - | 452 | 508±0.5 | 545 | 46.5 | - | - | - | - | - | HCK.508-ZN-M12-FKM-GL-P | 455 | |
96.38 € | 1 | Available | 4 Days | 508 | - | - | 12 | M12 | - | 12.5 | - | 452 | 508±0.5 | 545 | 46.5 | - | - | - | - | - | HCK.508-SST-M12-NBR-PC-P | 455 | |
72.03 € | 1 | Available | 4 Days | 508 | - | - | 12 | M12 | - | 12.5 | - | 452 | 508±0.5 | 545 | 46.5 | - | - | - | - | - | HCK.508-SST-M12-NBR-PC-NP | 455 | |
110.68 € | 1 | Available | 4 Days | 508 | - | - | 12 | M12 | - | 12.5 | - | 452 | 508±0.5 | 545 | 46.5 | - | - | - | - | - | HCK.508-SST-M12-NBR-GL-P | 455 | |
100.50 € | 1 | Available | 4 Days | 508 | - | - | 12 | M12 | - | 12.5 | - | 452 | 508±0.5 | 545 | 46.5 | - | - | - | - | - | HCK.508-SST-M12-FKM-PC-P | 455 | |
75.59 € | 1 | Available | 4 Days | 508 | - | - | 12 | M12 | - | 12.5 | - | 452 | 508±0.5 | 545 | 46.5 | - | - | - | - | - | HCK.508-SST-M12-FKM-PC-NP | 455 |
Loading...
Configure
Stock
-
- Show only stock items
Basic Attributes
-
f(mm)
-
A
-
B
-
C
-
D
-
d
-
d'
- 10.5
- 12.5
-
Diameter
-
e
-
f'
- 76 ±0.2
- 76±0.2
- 127±0.5
- 176±0.5
- 254±0.5
- 381±0.5
- 508±0.5
-
L
-
l1
- 35.5
- 46.5
-
l2
-
Material
- Technopolymer
-
torque 1
- 12
-
r
-
Sub execution
- HCK.
- HCK-NP
-
Type
- 111
- 1120
- 1131
- 1133
- 1134
- 1141
- 1142
- 1143
- 1144
- 1162
- 1163
- 1164
- 1165
- 1171
- 1172
- 1173
- 1174
- 1180
- 1182
- 1183
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 1 Day or Less
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
