LV.A / Levelling Elements, Technopolymer Base, Steel Stem

Features

The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.
The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor.

Material

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Articulated Stem

Threaded zinc-plated steel with regulation hexagon.

Standard Executions

- LV.A: without no-slip disk.
- LV.A-AS: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

Specifications

LV.A		LV.A-AS
Code	Description	Code	Description	D	d	L	L1#	l	l1	h	s	Articulation Ø	*Max. limit stati load [N]**	Weight	Weight#
303121	LV.A-60-14-M8x43	307121	LV.A-60-14-AS-M8x43	60	M8	76	79	43	33	24	14	14	14000	62	81
303125	LV.A-60-14-M8x68	307125	LV.A-60-14-AS-M8x68	60	M8	101	104	68	33	24	14	14	14000	74	93
303221	LV.A-60-14-M10x43	307221	LV.A-60-14-AS-M10x43	60	M10	76	79	43	33	24	14	14	14000	71	90
303225	LV.A-60-14-M10x68	307225	LV.A-60-14-AS-M10x68	60	M10	101	104	68	33	24	14	14	14000	83	102
303231	LV.A-60-14-M10x98	307231	LV.A-60-14-AS-M10x98	60	M10	131	134	98	33	24	14	14	14000	97	116
303321	LV.A-60-14-M12x43	307321	LV.A-60-14-AS-M12x43	60	M12	76	79	43	33	24	14	14	14000	81	100
303325	LV.A-60-14-M12x68	307325	LV.A-60-14-AS-M12x68	60	M12	101	104	68	33	24	14	14	14000	98	117
303331	LV.A-60-14-M12x98	307331	LV.A-60-14-AS-M12x98	60	M12	131	134	98	33	24	14	14	14000	119	138
303421	LV.A-60-14-M14X68	307421	LV.A-60-14-AS-M14X68	60	M14	101	104	68	33	24	14	14	14000	123	139
303431	LV.A-60-14-M14X98	307431	LV.A-60-14-AS-M14X98	60	M14	131	134	98	33	24	14	14	14000	144	160
303441	LV.A-60-14-M14X148	307441	LV.A-60-14-AS-M14X148	60	M14	181	184	148	33	24	14	14	14000	227	243
303521	LV.A-60-14-M16x68	307521	LV.A-60-14-AS-M16x68	60	M16	101	104	68	33	24	16	14	14000	142	161
303525	LV.A-60-14-M16x108	307525	LV.A-60-14-AS-M16x108	60	M16	141	144	108	33	24	16	14	14000	194	213
303541	LV.A-60-14-M16x148	307541	LV.A-60-14-AS-M16x148	60	M16	181	184	148	33	24	16	14	14000	246	265
303561	LV.A-60-14-M16x168	307561	LV.A-60-14-AS-M16x168	60	M16	201	204	168	33	24	16	14	14000	272	291
303625	LV.A-60-24-M16x98	307625	LV.A-60-24-AS-M16x98	60	M16	141	144	98	43	24	24	24	18000	256	275
303641	LV.A-60-24-M16x138	307641	LV.A-60-24-AS-M16x138	60	M16	181	184	138	43	24	24	24	18000	306	325
303661	LV.A-60-24-M16x158	307661	LV.A-60-24-AS-M16x158	60	M16	201	204	158	43	24	24	24	18000	333	352
303725	LV.A-60-24-M20x98	307725	LV.A-60-24-AS-M20x98	60	M20	141	144	98	43	24	24	24	18000	326	345
303741	LV.A-60-24-M20x138	307741	LV.A-60-24-AS-M20x138	60	M20	181	184	138	43	24	24	24	18000	405	424
303761	LV.A-60-24-M20x158	307761	LV.A-60-24-AS-M20x158	60	M20	201	204	158	43	24	24	24	18000	444	463
303781	LV.A-60-24-M20x198	307781	LV.A-60-24-AS-M20x198	60	M20	241	244	198	43	24	24	24	18000	527	546
303825	LV.A-60-24-M24x98	307825	LV.A-60-24-AS-M24x98	60	M24	141	144	98	43	24	24	24	18000	424	443
303861	LV.A-60-24-M24x158	307861	LV.A-60-24-AS-M24x158	60	M24	201	204	158	43	24	24	24	18000	596	615
303881	LV.A-60-24-M24x198	307881	LV.A-60-24-AS-M24x198	60	M24	241	244	198	43	24	24	24	18000	714	733
304005	LV.A-70-14-M8x43	308005	LV.A-70-14-AS-M8x43	70	M8	71	74	43	28	19	14	14	14000	60	80
304011	LV.A-70-14-M8x68	308011	LV.A-70-14-AS-M8x68	70	M8	96	99	68	28	19	14	14	14000	72	92
304021	LV.A-70-14-M10x43	308021	LV.A-70-14-AS-M10x43	70	M10	71	74	43	28	19	14	14	14000	69	89
304025	LV.A-70-14-M10x68	308025	LV.A-70-14-AS-M10x68	70	M10	96	99	68	28	19	14	14	14000	81	101
304031	LV.A-70-14-M10x98	308031	LV.A-70-14-AS-M10x98	70	M10	126	129	98	28	19	14	14	14000	95	115
304061	LV.A-70-14-M12x43	308061	LV.A-70-14-AS-M12x43	70	M12	71	74	43	28	19	14	14	14000	79	99
304065	LV.A-70-14-M12x68	308065	LV.A-70-14-AS-M12x68	70	M12	96	99	68	28	19	14	14	14000	96	116
304071	LV.A-70-14-M12x98	308071	LV.A-70-14-AS-M12x98	70	M12	126	129	98	28	19	14	14	14000	117	137
304075	LV.A-70-14-M14X68	308075	LV.A-70-14-AS-M14X68	70	M14	96	99	68	28	19	14	14	14000	118	138
304081	LV.A-70-14-M14X98	308081	LV.A-70-14-AS-M14X98	70	M14	126	129	98	28	19	14	14	14000	139	159
304085	LV.A-70-14-M14X148	308085	LV.A-70-14-AS-M14X148	70	M14	176	179	148	28	19	14	14	14000	222	242
304101	LV.A-70-14-M16x68	308101	LV.A-70-14-AS-M16x68	70	M16	96	99	68	28	19	16	14	14000	140	160
304105	LV.A-70-14-M16x108	308105	LV.A-70-14-AS-M16x108	70	M16	136	139	108	28	19	16	14	14000	192	212
304111	LV.A-70-14-M16x148	308111	LV.A-70-14-AS-M16x148	70	M16	176	179	148	28	19	16	14	14000	244	264
304115	LV.A-70-14-M16x168	308115	LV.A-70-14-AS-M16x168	70	M16	196	199	168	28	19	16	14	14000	270	290
304121	LV.A-80-14-M8x43	308121	LV.A-80-14-AS-M8x43	80	M8	76	79	43	33	24	14	14	16000	83	109
304125	LV.A-80-14-M8x68	308125	LV.A-80-14-AS-M8x68	80	M8	101	104	68	33	24	14	14	16000	95	121
304221	LV.A-80-14-M10x43	308221	LV.A-80-14-AS-M10x43	80	M10	76	79	43	33	24	14	14	16000	92	118
304225	LV.A-80-14-M10x68	308225	LV.A-80-14-AS-M10x68	80	M10	101	104	68	33	24	14	14	16000	104	130
304231	LV.A-80-14-M10x98	308231	LV.A-80-14-AS-M10x98	80	M10	131	134	98	33	24	14	14	16000	118	144
304321	LV.A-80-14-M12x43	308321	LV.A-80-14-AS-M12x43	80	M12	76	79	43	33	24	14	14	16000	102	128
304325	LV.A-80-14-M12x68	308325	LV.A-80-14-AS-M12x68	80	M12	101	104	68	33	24	14	14	16000	119	145
304331	LV.A-80-14-M12x98	308331	LV.A-80-14-AS-M12x98	80	M12	131	134	98	33	24	14	14	16000	140	166
304421	LV.A-80-14-M14X68	308421	LV.A-80-14-AS-M14X68	80	M14	101	104	68	33	24	14	14	16000	141	167
304431	LV.A-80-14-M14X98	308431	LV.A-80-14-AS-M14X98	80	M14	131	134	98	33	24	14	14	16000	162	188
304441	LV.A-80-14-M14X148	308441	LV.A-80-14-AS-M14X148	80	M14	181	184	148	33	24	14	14	16000	245	271
304521	LV.A-80-14-M16x68	308521	LV.A-80-14-AS-M16x68	80	M16	101	104	68	33	24	16	14	16000	163	189
304525	LV.A-80-14-M16x108	308525	LV.A-80-14-AS-M16x108	80	M16	141	144	108	33	24	16	14	16000	215	241
304541	LV.A-80-14-M16x148	308541	LV.A-80-14-AS-M16x148	80	M16	181	184	148	33	24	16	14	16000	267	293
304561	LV.A-80-14-M16x168	308561	LV.A-80-14-AS-M16x168	80	M16	201	204	168	33	24	16	14	16000	293	319
304621	LV.A-80-24-M16x58	308621	LV.A-80-24-AS-M16x58	80	M16	101	104	58	43	24	24	24	18000	225	251
304625	LV.A-80-24-M16x98	308625	LV.A-80-24-AS-M16x98	80	M16	141	144	98	43	24	24	24	18000	276	302
304641	LV.A-80-24-M16x138	308641	LV.A-80-24-AS-M16x138	80	M16	181	184	138	43	24	24	24	18000	326	352
304661	LV.A-80-24-M16x158	308661	LV.A-80-24-AS-M16x158	80	M16	201	204	158	43	24	24	24	18000	353	379
304725	LV.A-80-24-M20x98	308725	LV.A-80-24-AS-M20x98	80	M20	141	144	98	43	24	24	24	18000	346	372
304741	LV.A-80-24-M20x138	308741	LV.A-80-24-AS-M20x138	80	M20	181	184	138	43	24	24	24	18000	425	451
304761	LV.A-80-24-M20x158	308761	LV.A-80-24-AS-M20x158	80	M20	201	204	158	43	24	24	24	18000	464	490
304781	LV.A-80-24-M20x198	308781	LV.A-80-24-AS-M20x198	80	M20	241	244	198	43	24	24	24	18000	547	573
304825	LV.A-80-24-M24x98	308825	LV.A-80-24-AS-M24x98	80	M24	141	144	98	43	24	24	24	18000	444	470
304861	LV.A-80-24-M24x158	308861	LV.A-80-24-AS-M24x158	80	M24	201	204	158	43	24	24	24	18000	616	642
304881	LV.A-80-24-M24x198	308881	LV.A-80-24-AS-M24x198	80	M24	241	244	198	43	24	24	24	18000	734	760
305451	LV.A-100-14-M8x43	309451	LV.A-100-14-AS-M8x43	100	M8	76	79	43	33	24	14	14	18000	91	146
305453	LV.A-100-14-M8x68	309453	LV.A-100-14-AS-M8x68	100	M8	101	104	68	33	24	14	14	18000	103	158
305461	LV.A-100-14-M10x43	309461	LV.A-100-14-AS-M10x43	100	M10	76	79	43	33	24	14	14	18000	100	155
305463	LV.A-100-14-M10x68	309463	LV.A-100-14-AS-M10x68	100	M10	101	104	68	33	24	14	14	18000	112	167
305465	LV.A-100-14-M10x98	309465	LV.A-100-14-AS-M10x98	100	M10	131	134	98	33	24	14	14	18000	126	181
305471	LV.A-100-14-M12x43	309471	LV.A-100-14-AS-M12x43	100	M12	76	79	43	33	24	14	14	18000	110	165
305473	LV.A-100-14-M12x68	309473	LV.A-100-14-AS-M12x68	100	M12	101	104	68	33	24	14	14	18000	127	182
305475	LV.A-100-14-M12x98	309475	LV.A-100-14-AS-M12x98	100	M12	131	134	98	33	24	14	14	18000	148	203
305477	LV.A-100-14-M14X68	309477	LV.A-100-14-AS-M14X68	100	M14	101	104	68	33	24	14	14	18000	149	204
305479	LV.A-100-14-M14X98	309479	LV.A-100-14-AS-M14X98	100	M14	131	134	98	33	24	14	14	18000	170	225
305480	LV.A-100-14-M14X148	309480	LV.A-100-14-AS-M14X148	100	M14	181	184	148	33	24	14	14	18000	253	308
305481	LV.A-100-14-M16x68	309481	LV.A-100-14-AS-M16x68	100	M16	101	104	68	33	24	16	14	18000	171	226
305483	LV.A-100-14-M16x108	309483	LV.A-100-14-AS-M16x108	100	M16	141	144	108	33	24	16	14	18000	223	278
305485	LV.A-100-14-M16x148	309485	LV.A-100-14-AS-M16x148	100	M16	181	184	148	33	24	16	14	18000	275	330
305487	LV.A-100-14-M16x168	309487	LV.A-100-14-AS-M16x168	100	M16	201	204	168	33	24	16	14	18000	301	356
305521	LV.A-100-24-M16x58	309521	LV.A-100-24-AS-M16x58	100	M16	101	104	58	43	24	24	24	25000	251	305
305525	LV.A-100-24-M16x98	309525	LV.A-100-24-AS-M16x98	100	M16	141	144	98	43	24	24	24	25000	302	356
305541	LV.A-100-24-M16x138	309541	LV.A-100-24-AS-M16x138	100	M16	181	184	138	43	24	24	24	25000	352	406
305561	LV.A-100-24-M16x158	309561	LV.A-100-24-AS-M16x158	100	M16	201	204	158	43	24	24	24	25000	379	433
305625	LV.A-100-24-M20x98	309625	LV.A-100-24-AS-M20x98	100	M20	141	144	98	43	24	24	24	25000	372	426
305641	LV.A-100-24-M20x138	309641	LV.A-100-24-AS-M20x138	100	M20	181	184	138	43	24	24	24	25000	451	505
305661	LV.A-100-24-M20x158	309661	LV.A-100-24-AS-M20x158	100	M20	201	204	158	43	24	24	24	25000	490	544
305681	LV.A-100-24-M20x198	309681	LV.A-100-24-AS-M20x198	100	M20	241	244	198	43	24	24	24	25000	573	627
305725	LV.A-100-24-M24x98	309725	LV.A-100-24-AS-M24x98	100	M24	141	144	98	43	24	24	24	25000	470	524
305761	LV.A-100-24-M24x158	309761	LV.A-100-24-AS-M24x158	100	M24	201	204	158	43	24	24	24	25000	642	696
305781	LV.A-100-24-M24x198	309781	LV.A-100-24-AS-M24x198	100	M24	241	244	198	43	24	24	24	25000	760	814
306521	LV.A-125-24-M16x58	310221	LV.A-125-24-AS-M16x58	125	M16	125	128	58	67	46	24	24	28000	386	512
306525	LV.A-125-24-M16x98	310225	LV.A-125-24-AS-M16x98	125	M16	165	168	98	67	46	24	24	28000	437	563
306541	LV.A-125-24-M16x138	310241	LV.A-125-24-AS-M16x138	125	M16	205	208	138	67	46	24	24	28000	487	613
306561	LV.A-125-24-M16x158	310261	LV.A-125-24-AS-M16x158	125	M16	225	228	158	67	46	24	24	28000	514	640
306625	LV.A-125-24-M20x98	310325	LV.A-125-24-AS-M20x98	125	M20	165	168	98	67	46	24	24	28000	507	633
306641	LV.A-125-24-M20x138	310341	LV.A-125-24-AS-M20x138	125	M20	205	208	138	67	46	24	24	28000	586	712
306661	LV.A-125-24-M20x158	310361	LV.A-125-24-AS-M20x158	125	M20	225	228	158	67	46	24	24	28000	625	751
306681	LV.A-125-24-M20x198	310381	LV.A-125-24-AS-M20x198	125	M20	265	268	198	67	46	24	24	28000	708	834
306725	LV.A-125-24-M24x98	310425	LV.A-125-24-AS-M24x98	125	M24	165	168	98	67	46	24	24	28000	605	731
306761	LV.A-125-24-M24x158	310461	LV.A-125-24-AS-M24x158	125	M24	225	228	158	67	46	24	24	28000	777	903
306781	LV.A-125-24-M24x198	310481	LV.A-125-24-AS-M24x198	125	M24	265	268	198	67	46	24	24	28000	895	1021

* The max static load is the value above which the load applied to the element may cause some plastic material breakage, in particular conditions of use. Obviously, a factor that takes into consideration the importance and the safety level of the specific application must be applied to this value.
# Data with no-slip disk mounted.

Order Information

The levelling elements are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.
To order bases and stems separately, see:
- table of possible combinations Bases/Stems
- the codes of the Bases
- the codes of the Stems.

Accessories on Request

Zinc-plated steel nut.

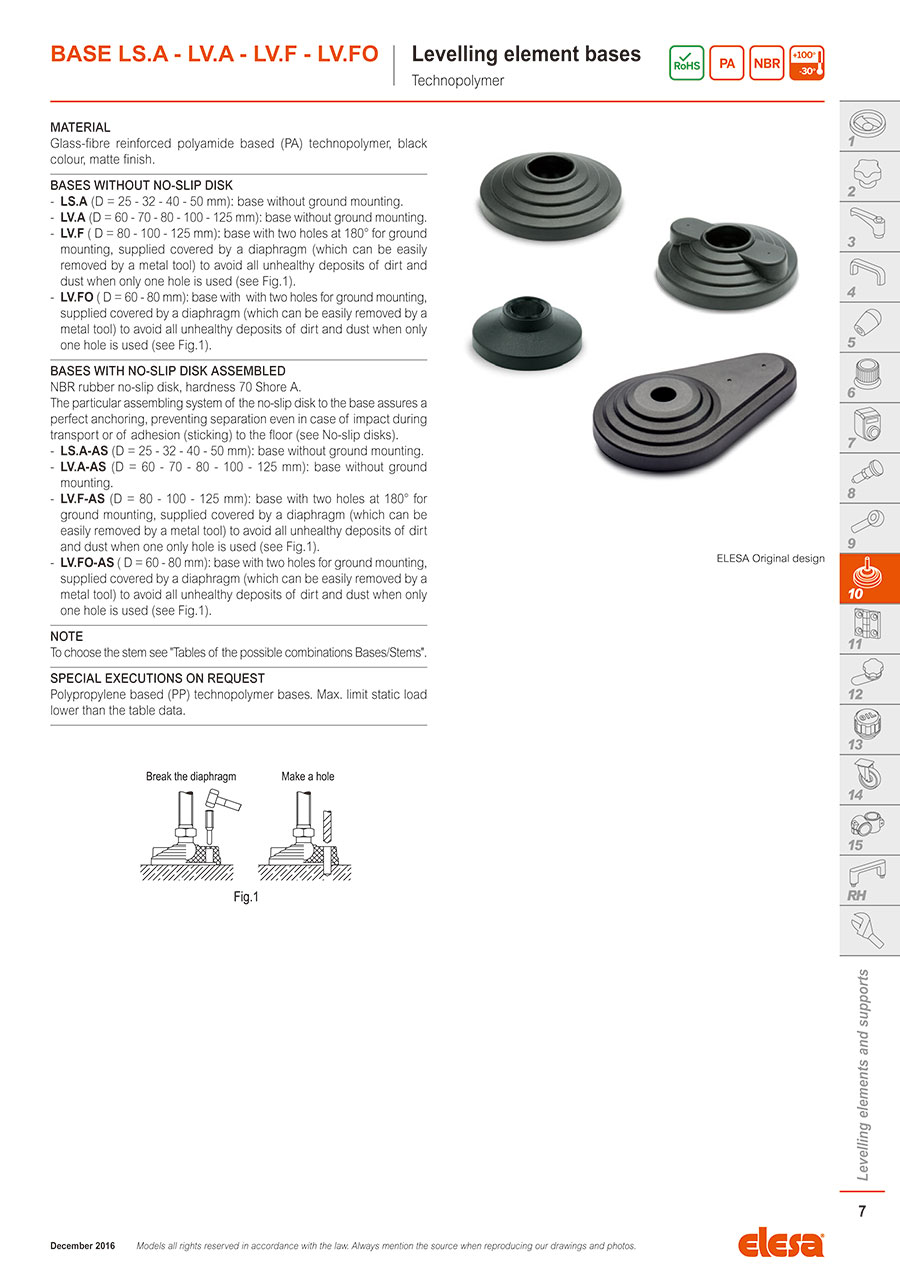

Base LV.A / Levelling Element Bases, Technopolymer

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Bases without No-Slip Disk

LV.A (D = 60 - 70 - 80 - 100 - 125 mm): base without ground mounting.

Bases with No-Slip Disk Assembled

NBR rubber no-slip disk, hardness 70 Shore A.
The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disks).
LV.A-AS (D = 60 - 70 - 80 - 100 - 125 mm): base without ground mounting.

Note

To choose the stem see "Tables of the possible combinations Bases/Stems".

Special Executions on Request

Polypropylene based (PP) technopolymer bases. Max. limit static load lower than the table data.

Specifications

Code	Description	Code	Description	D	d1	d2	h	h1	h2	h3#	B	f	f1	Ground mounting	*Max. limit static load [N]**	Weight	Weight#
301241	LV.A-60-14	301741	LV.A-60-14-AS	60	-	14	24	-	9	27	-	-	-	-	14000	32	51
301242	LV.A-60-24	301742	LV.A-60-24-AS	60	-	24	24	-	9	27	-	-	-	-	18000	29	48
301246	LV.A-70-14	301746	LV.A-70-14-AS	70	-	14	19	-	7	22	-	-	-	-	14000	30	50
301251	LV.A-80-14	301751	LV.A-80-14-AS	80	-	14	24	-	9	27	-	-	-	-	16000	53	79
301252	LV.A-80-24	301752	LV.A-80-24-AS	80	-	24	24	-	9	27	-	-	-	-	18000	49	75
301261	LV.A-100-14	301761	LV.A-100-14-AS	100	-	14	24	-	9	27	-	-	-	-	18000	82	136
301262	LV.A-100-24	301762	LV.A-100-24-AS	100	-	24	24	-	9	27	-	-	-	-	25000	81	135
301272	LV.A-125-24	301772	LV.A-125-24-AS	125	-	24	46	-	15	49	-	-	-	-	28000	190	315

Part number list

Number of items

Part number

Order suspended 301241
301242
301246
Order suspended 301251
301252
Order suspended 301261
Order suspended 301262
301272
Order suspended 301741
Order suspended 301742
Order suspended 301746
Order suspended 301751
301752
Order suspended 301761
Order suspended 301762
301772
303121
303125
303221
303225
303231
Order suspended 303321
Order suspended 303325
303331
303421
303431
303441
303521
303525
303541
303561
Order suspended 303621
303625
303641
303661
303725
303741
303761
303781
303825
303861
303881
304005
304011
304021
304025
304031
304061
304065
304071
304075
304081
304085
304101
304105
304111
304115
304121
304125
304221

Type

Adjusting Bolt Shape Type

Swivel Angle θ

(deg)

Thread Material

Thread Surface Treatment

Bottom Rubber Material

(mm)

Max limit static load unit

(kN)

(mm)

Properties

Swivel Mechanism

Articulation Ø

Sub execution

h3#

Execution

Description

Weight

Minimum order quantity

Leg End	-	-	-	-	-	60	14	-	24	-	Standard	Not Provided	14	-	-	-	9	-	LS.A - LV.A - LV.F - LV.FO	LV.A-60-14	32	4 pieces
Leg End	-	-	-	-	-	60	18	-	24	-	Standard	Not Provided	24	-	-	-	9	-	LS.A - LV.A - LV.F - LV.FO	LV.A-60-24	29	4 pieces
Leg End	-	-	-	-	-	70	14	-	19	-	Standard	Not Provided	14	-	-	-	7	-	LS.A - LV.A - LV.F - LV.FO	LV.A-70-14	30	4 pieces
Leg End	-	-	-	-	-	80	16	-	24	-	Standard	Not Provided	14	-	-	-	9	-	LS.A - LV.A - LV.F - LV.FO	LV.A-80-14	53	4 pieces
Leg End	-	-	-	-	-	80	18	-	24	-	Standard	Not Provided	24	-	-	-	9	-	LS.A - LV.A - LV.F - LV.FO	LV.A-80-24	49	4 pieces
Leg End	-	-	-	-	-	100	18	-	24	-	Standard	Not Provided	14	-	-	-	9	-	LS.A - LV.A - LV.F - LV.FO	LV.A-100-14	82	4 pieces
Leg End	-	-	-	-	-	100	25	-	24	-	Standard	Not Provided	24	-	-	-	9	-	LS.A - LV.A - LV.F - LV.FO	LV.A-100-24	81	4 pieces
Leg End	-	-	-	-	-	125	28	-	46	-	Standard	Not Provided	24	-	-	-	15	-	LS.A - LV.A - LV.F - LV.FO	LV.A-125-24	190	4 pieces
Leg End	-	-	-	-	Nitrile Rubber	60	14	-	24	-	Impact Resistant	Not Provided	14	-	-	-	9	27	LS.A-AS-LV.A-AS-LV.F-AS-LV.FO-AS	LV.A-60-14-AS	51	4 pieces
Leg End	-	-	-	-	Nitrile Rubber	60	18	-	24	-	Impact Resistant	Not Provided	24	-	-	-	9	27	LS.A-AS-LV.A-AS-LV.F-AS-LV.FO-AS	LV.A-60-24-AS	48	4 pieces
Leg End	-	-	-	-	Nitrile Rubber	70	14	-	19	-	Impact Resistant	Not Provided	14	-	-	-	7	22	LS.A-AS-LV.A-AS-LV.F-AS-LV.FO-AS	LV.A-70-14-AS	50	4 pieces
Leg End	-	-	-	-	Nitrile Rubber	80	16	-	24	-	Impact Resistant	Not Provided	14	-	-	-	9	27	LS.A-AS-LV.A-AS-LV.F-AS-LV.FO-AS	LV.A-80-14-AS	79	4 pieces
Leg End	-	-	-	-	Nitrile Rubber	80	18	-	24	-	Impact Resistant	Not Provided	24	-	-	-	9	27	LS.A-AS-LV.A-AS-LV.F-AS-LV.FO-AS	LV.A-80-24-AS	75	4 pieces
Leg End	-	-	-	-	Nitrile Rubber	100	18	-	24	-	Impact Resistant	Not Provided	14	-	-	-	9	27	LS.A-AS-LV.A-AS-LV.F-AS-LV.FO-AS	LV.A-100-14-AS	136	4 pieces
Leg End	-	-	-	-	Nitrile Rubber	100	25	-	24	-	Impact Resistant	Not Provided	24	-	-	-	9	27	LS.A-AS-LV.A-AS-LV.F-AS-LV.FO-AS	LV.A-100-24-AS	135	4 pieces
Leg End	-	-	-	-	Nitrile Rubber	125	28	-	46	-	Impact Resistant	Not Provided	24	-	-	-	15	49	LS.A-AS-LV.A-AS-LV.F-AS-LV.FO-AS	LV.A-125-24-AS	315	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	43	24	M8	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-60-14-M8x43	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	68	24	M8	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-60-14-M8x68	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	43	24	M10	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-60-14-M10x43	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	68	24	M10	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-60-14-M10x68	-	1 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	98	24	M10	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-60-14-M10x98	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	43	24	M12	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-60-14-M12x43	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	68	24	M12	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-60-14-M12x68	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	98	24	M12	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-60-14-M12x98	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	68	24	M14	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-60-14-M14x68	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	98	24	M14	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-60-14-M14x98	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	148	24	M14	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-60-14-M14x148	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	68	24	M16	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-60-14-M16x68	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	108	24	M16	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-60-14-M16x108	-	1 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	148	24	M16	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-60-14-M16x148	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	168	24	M16	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-60-14-M16x168	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	58	24	M16	Standard	Provided	-	43	24	LV.A	-	-	-	LV.A-60-24-M16x58	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	98	24	M16	Standard	Provided	-	43	24	LV.A	-	-	-	LV.A-60-24-M16x98	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	138	24	M16	Standard	Provided	-	43	24	LV.A	-	-	-	LV.A-60-24-M16x138	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	158	24	M16	Standard	Provided	-	43	24	LV.A	-	-	-	LV.A-60-24-M16x158	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	98	24	M20	Standard	Provided	-	43	24	LV.A	-	-	-	LV.A-60-24-M20x98	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	138	24	M20	Standard	Provided	-	43	24	LV.A	-	-	-	LV.A-60-24-M20x138	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	158	24	M20	Standard	Provided	-	43	24	LV.A	-	-	-	LV.A-60-24-M20x158	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	198	24	M20	Standard	Provided	-	43	24	LV.A	-	-	-	LV.A-60-24-M20x198	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	98	24	M24	Standard	Provided	-	43	24	LV.A	-	-	-	LV.A-60-24-M24x98	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	158	24	M24	Standard	Provided	-	43	24	LV.A	-	-	-	LV.A-60-24-M24x158	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	60	-	198	24	M24	Standard	Provided	-	43	24	LV.A	-	-	-	LV.A-60-24-M24x198	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	70	-	43	19	M8	Standard	Provided	-	28	14	LV.A	-	-	-	LV.A-70-14-M8x43	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	70	-	68	19	M8	Standard	Provided	-	28	14	LV.A	-	-	-	LV.A-70-14-M8x68	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	70	-	43	19	M10	Standard	Provided	-	28	14	LV.A	-	-	-	LV.A-70-14-M10x43	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	70	-	68	19	M10	Standard	Provided	-	28	14	LV.A	-	-	-	LV.A-70-14-M10x68	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	70	-	98	19	M10	Standard	Provided	-	28	14	LV.A	-	-	-	LV.A-70-14-M10x98	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	70	-	43	19	M12	Standard	Provided	-	28	14	LV.A	-	-	-	LV.A-70-14-M12x43	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	70	-	68	19	M12	Standard	Provided	-	28	14	LV.A	-	-	-	LV.A-70-14-M12x68	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	70	-	98	19	M12	Standard	Provided	-	28	14	LV.A	-	-	-	LV.A-70-14-M12x98	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	70	-	68	19	M14	Standard	Provided	-	28	14	LV.A	-	-	-	LV.A-70-14-M14x68	-	1 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	70	-	98	19	M14	Standard	Provided	-	28	14	LV.A	-	-	-	LV.A-70-14-M14x98	-	1 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	70	-	148	19	M14	Standard	Provided	-	28	14	LV.A	-	-	-	LV.A-70-14-M14x148	-	1 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	70	-	68	19	M16	Standard	Provided	-	28	14	LV.A	-	-	-	LV.A-70-14-M16x68	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	70	-	108	19	M16	Standard	Provided	-	28	14	LV.A	-	-	-	LV.A-70-14-M16x108	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	70	-	148	19	M16	Standard	Provided	-	28	14	LV.A	-	-	-	LV.A-70-14-M16x148	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	70	-	168	19	M16	Standard	Provided	-	28	14	LV.A	-	-	-	LV.A-70-14-M16x168	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	80	-	43	24	M8	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-80-14-M8x43	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	80	-	68	24	M8	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-80-14-M8x68	-	4 pieces
Adjusting Bolt Type	-	15	Steel	Zinc Plating	-	80	-	43	24	M10	Standard	Provided	-	33	14	LV.A	-	-	-	LV.A-80-14-M10x43	-	4 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

1.67 € ( 1.99 € )	4 working days
1.67 € ( 1.99 € )	4 working days
2.07 € ( 2.46 € )	4 working days
2.15 € ( 2.56 € )	4 working days
2.16 € ( 2.57 € )	4 working days
2.97 € ( 3.53 € )	4 working days
2.97 € ( 3.53 € )	4 working days
6.56 € ( 7.81 € )	4 working days
3.87 € ( 4.61 € )	4 working days
3.87 € ( 4.61 € )	4 working days
4.82 € ( 5.74 € )	4 working days
4.93 € ( 5.87 € )	4 working days
4.93 € ( 5.87 € )	4 working days
7.26 € ( 8.64 € )	4 working days
7.26 € ( 8.64 € )	4 working days
14.59 € ( 17.36 € )	4 working days
4.31 € ( 5.13 € )	4 working days
5.06 € ( 6.02 € )	4 working days
4.29 € ( 5.11 € )	4 working days
5.13 €2.46 € ( 2.93 € )	Stock item: 1 working dayAvailable for same-day shipping
6.07 € ( 7.22 € )	4 working days
4.29 € ( 5.11 € )	5 working days
5.15 € ( 6.13 € )	5 working days
6.11 € ( 7.27 € )	1 working days
5.52 € ( 6.57 € )	1 working days
7.15 € ( 8.51 € )	1 working days
8.71 € ( 10.36 € )	1 working days
6.36 € ( 7.57 € )	1 working days
8.47 €4.07 € ( 4.84 € )	Stock item: 1 working dayAvailable for same-day shipping
9.00 € ( 10.71 € )	1 working days
10.25 € ( 12.20 € )	1 working days
10.25 € ( 12.20 € )	5 working days
11.51 € ( 13.70 € )	5 working days
11.75 € ( 13.98 € )	1 working days
12.74 € ( 15.16 € )	1 working days
11.62 € ( 13.83 € )	1 working days
12.46 € ( 14.83 € )	1 working days
14.61 € ( 17.39 € )	1 working days
15.64 € ( 18.61 € )	1 working days
11.62 € ( 13.83 € )	1 working days
14.36 € ( 17.09 € )	1 working days
15.65 € ( 18.62 € )	1 working days
4.71 € ( 5.60 € )	5 working days
5.45 € ( 6.49 € )	1 working days
4.69 € ( 5.58 € )	1 working days
5.50 € ( 6.54 € )	1 working days
6.47 € ( 7.70 € )	1 working days
4.69 € ( 5.58 € )	1 working days
5.52 € ( 6.57 € )	4 working days
6.49 € ( 7.72 € )	1 working days
5.92 €3.20 € ( 3.81 € )	Stock item: 1 working dayAvailable for same-day shipping
7.54 €3.77 € ( 4.49 € )	Stock item: 1 working dayAvailable for same-day shipping
9.11 €4.37 € ( 5.20 € )	Stock item: 1 working dayAvailable for same-day shipping
6.73 € ( 8.01 € )	5 working days
8.87 € ( 10.56 € )	1 working days
9.37 € ( 11.15 € )	1 working days
10.65 € ( 12.67 € )	5 working days
4.80 € ( 5.71 € )	1 working days
5.52 € ( 6.57 € )	1 working days
4.75 € ( 5.65 € )	1 working days

Basic information

Basic information

Levelling elements with base in black glass fibre reinforced polyamide-based technopolymer, threaded polished zinc-plated steel articulated stem with adjusting hexagon and option of having it without no-slip disk or with SBR rubber no-slip disk fixed to the base.
The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

Catalog

Products homepage

Catalog (2-page spread)

LV.A - Levelling elements -Technopolymer base steel stem

Product information

LV.A / Levelling Elements, Technopolymer Base, Steel Stem

Features

Material

Base

Articulated Stem

Standard Executions

Specifications

Order Information

Accessories on Request

Base LV.A / Levelling Element Bases, Technopolymer

Material

Bases without No-Slip Disk

Bases with No-Slip Disk Assembled

Note

Special Executions on Request

Specifications

Part number list

More Information

Basic information

Catalog
