LV.F-125-ACV - Levelling elements for ground mounting -Technopolymer base steel stem

LV.F-125-ACV - Levelling elements for ground mounting -Technopolymer base steel stem

Part number:

Still undefined. 12 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    313921
    313925
    313931
    313935
    313941
    313945
    316921
    316925
    316931
    316935
    316941
    316945

    Sub execution

    Description

    		Minimum order quantity
    LV.F-ACV
    LV.F-125-ACV-M20x136
    4 pieces
    LV.F-ACV
    LV.F-125-ACV-M20x186
    4 pieces
    LV.F-ACV
    LV.F-125-ACV-M24x136
    4 pieces
    LV.F-ACV
    LV.F-125-ACV-M24x186
    4 pieces
    LV.F-ACV
    LV.F-125-ACV-M30x136
    4 pieces
    LV.F-ACV
    LV.F-125-ACV-M30x186
    4 pieces
    LV.F-ACV-AS
    LV.F-125-ACV-AS-M20x136
    4 pieces
    LV.F-ACV-AS
    LV.F-125-ACV-AS-M20x186
    4 pieces
    LV.F-ACV-AS
    LV.F-125-ACV-AS-M24x136
    4 pieces
    LV.F-ACV-AS
    LV.F-125-ACV-AS-M24x186
    4 pieces
    LV.F-ACV-AS
    LV.F-125-ACV-AS-M30x136
    4 pieces
    LV.F-ACV-AS
    LV.F-125-ACV-AS-M30x186
    4 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    32.37 €
    ( 38.52 € )
    1 working days
    35.26 €
    ( 41.96 € )
    1 working days
    31.13 €
    ( 37.04 € )
    1 working days
    36.19 €
    ( 43.07 € )
    1 working days
    38.72 €
    ( 46.08 € )
    1 working days
    43.70 €
    ( 52.00 € )
    1 working days
    49.81 €
    ( 59.27 € )
    1 working days
    52.69 €
    ( 62.70 € )
    1 working days
    48.60 €
    ( 57.83 € )
    1 working days
    53.66 €
    ( 63.86 € )
    1 working days
    58.77 €
    ( 69.94 € )
    1 working days
    63.76 €
    ( 75.87 € )
    1 working days
  • 1

    • More Information

    Basic information

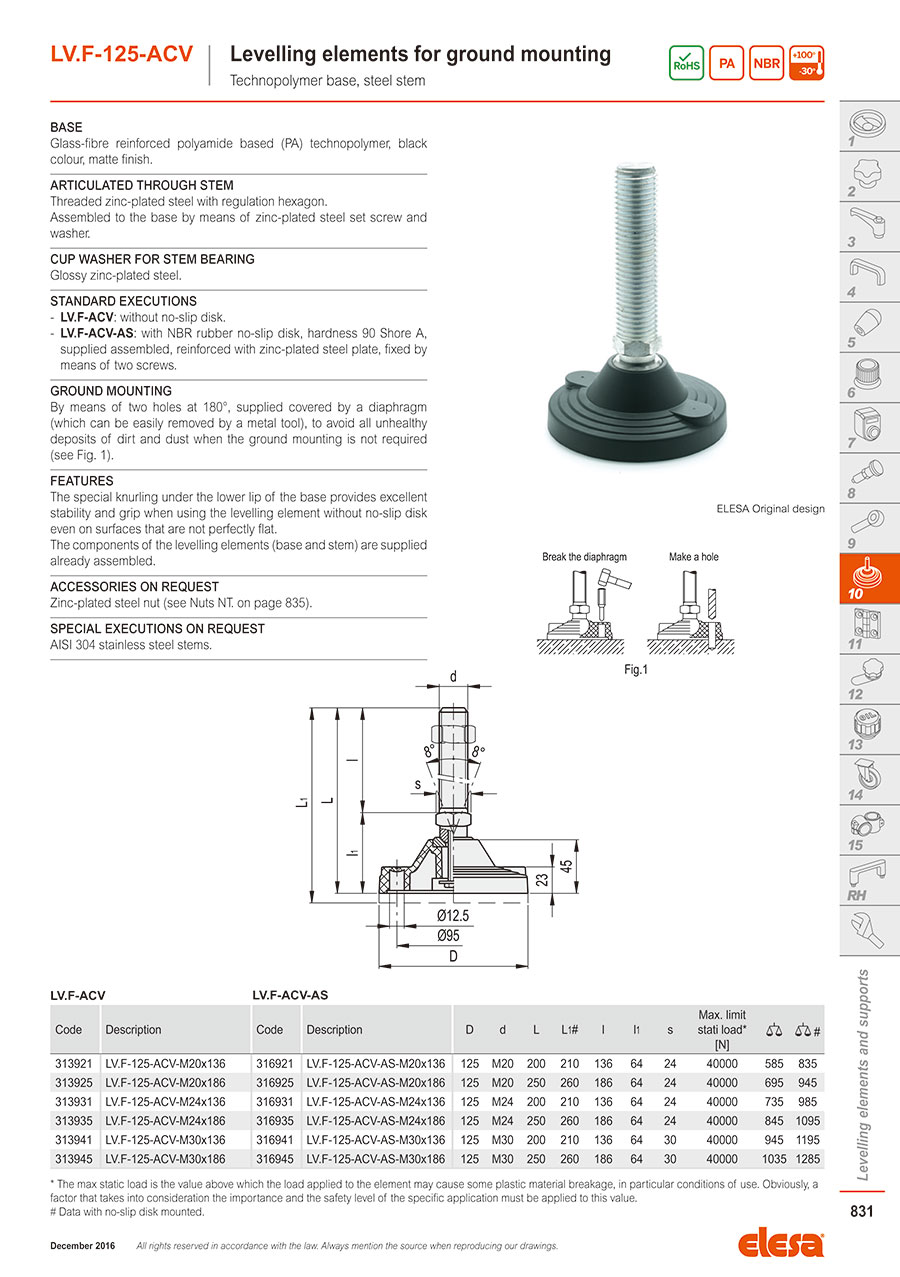

    Levelling elements for fixing to the ground with base in black glass fibre reinforced polyamide-based technopolymer, threaded polished zinc-plated steel articulated pass-through stem with adjusting hexagon fixed to the base by means of a screw and concave washer supporting the stem in polished zinc-plated steel and option of having it without or with NBR rubber no-slip disk fixed to the base.
