SMC

25(Axial Exhaust), Silencer

25(Axial Exhaust), Silencer

Caution

  • Refer to the catalog for product specifications.
  • CAD data is not supported by some of the model numbers
  • Product pictures are representations.

Part number:

Still undefined. 14 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    2504-002
    2504-N002
    2505-003
    2505-N003
    2506-004
    2506-N004
    2507-006
    2507-N006
    2508-010
    2508-N010
    2510-002
    2510-N002
    2511-003
    2511-N003

    Pipe Connection Port Type

    Effective Sectional Area

    (mm2)

    Effective Sectional Area【classification】

    (mm2)

    Mounting Thread Nominal

    Recommended Flow Rate

    (m3/min(ANR))

    Length A

    (mm)

    Body size

    		Minimum order quantity
    [Flange] 4B(100A)JIS 10K FF Flange
    33.9
    Up to 40
    [3/8] 3/8
    2.2 or less
    62
    04
    1 pieces
    NPT
    33.9
    Up to 40
    [3/8] 3/8
    2.2 or less
    62
    04
    1 pieces
    [Flange] 4B(100A)JIS 10K FF Flange
    45.9
    Up to 50
    [1/2] 1/2
    3.0 or less
    64
    05
    1 pieces
    NPT
    45.9
    Up to 50
    [1/2] 1/2
    3.0 or less
    64
    05
    1 pieces
    [Flange] 4B(100A)JIS 10K FF Flange
    50
    Up to 50
    [3/4] 3/4
    4.0 or less
    68
    06
    1 pieces
    NPT
    50
    Up to 50
    [3/4] 3/4
    4.0 or less
    68
    06
    1 pieces
    [Flange] 4B(100A)JIS 10K FF Flange
    105.6
    Up to 200
    [1] 1
    8.0 or less
    88.5
    07
    1 pieces
    NPT
    105.6
    Up to 200
    [1] 1
    8.0 or less
    88.5
    07
    1 pieces
    [Flange] 4B(100A)JIS 10K FF Flange
    129.6
    Up to 200
    [1 1/4] 1 1/4
    10.0 or less
    97.5
    08
    1 pieces
    NPT
    129.6
    Up to 200
    [1 1/4] 1 1/4
    10.0 or less
    97.5
    08
    1 pieces
    [Flange] 4B(100A)JIS 10K FF Flange
    17.2
    Up to 20
    [3/8] 3/8
    1.5 or less
    54
    10
    1 pieces
    NPT
    17.2
    Up to 20
    [3/8] 3/8
    1.5 or less
    54
    10
    1 pieces
    [Flange] 4B(100A)JIS 10K FF Flange
    17.2
    Up to 20
    [1/2] 1/2
    1.5 or less
    56
    11
    1 pieces
    NPT
    17.2
    Up to 20
    [1/2] 1/2
    1.5 or less
    56
    11
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    11.24 €
    ( 13.38 € )
    4 working days
    11.24 €
    ( 13.38 € )
    11 working days
    11.24 €
    ( 13.38 € )
    4 working days
    11.24 €
    ( 13.38 € )
    11 working days
    11.24 €
    ( 13.38 € )
    4 working days
    11.24 €
    ( 13.38 € )
    11 working days
    31.86 €
    ( 37.91 € )
    4 working days
    31.86 €
    ( 37.91 € )
    11 working days
    39.57 €
    ( 47.09 € )
    4 working days
    39.57 €
    ( 47.09 € )
    29 working days
    10.64 €
    ( 12.66 € )
    4 working days
    10.64 €
    ( 12.66 € )
    19 working days
    11.24 €
    ( 13.38 € )
    25 working days
    11.24 €
    ( 13.38 € )
    11 working days
  • 1

    • More Information

    Basic information

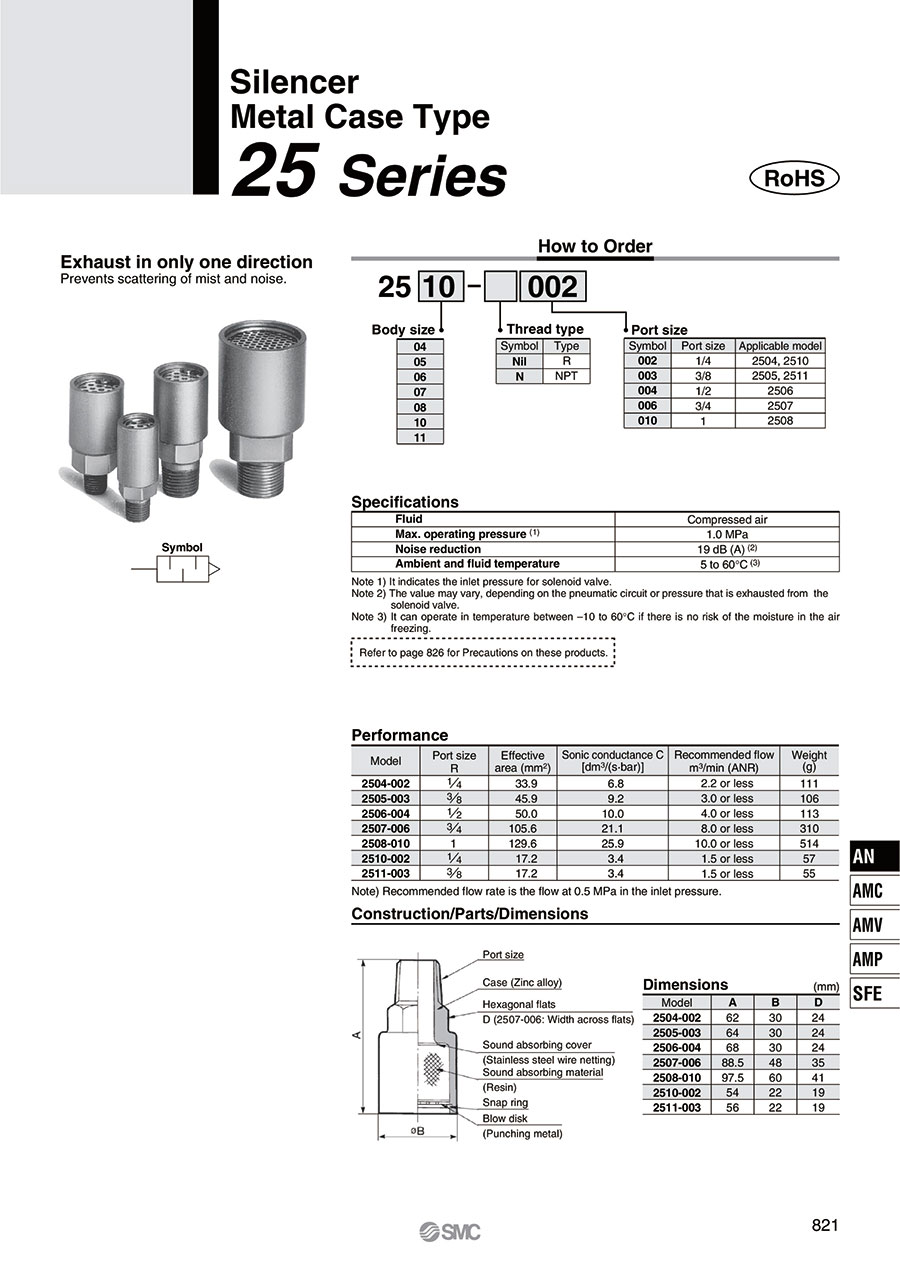

    The 25 Series Metal Case Type Silencer prevents the spread of mist and sound from exhaust.
    [Features]
    · Exhaust is emitted in the axial direction only.
