Adapter sleeves H31, main dimensions to DIN 5415, taper 1:12

Configure

Inner diameter(mm)
- 90
- 100
- 110
- 115
- 125
- 135
- 140
- 150
- 160
- 170
- 180
- 200
- 220
- 240
- 260
- 280
- 300
Outer diameter(mm)
- 130
- 145
- 155
- 165
- 180
- 195
- 210
- 220
- 230
- 240
- 250
- 280
- 300
- 330
- 350
- 380
- 400
Width(mm)
- 76
- 81
- 88
- 92
- 97
- 111
- 119
- 122
- 131
- 141
- 150
- 161
- 172
- 190
- 195
- 208
- 226
Thread G
Sleeve length B1(mm)
- 76
- 81
- 88
- 92
- 97
- 111
- 119
- 122
- 131
- 141
- 150
- 161
- 172
- 190
- 195
- 208
- 226
Bore diameter bearing d(mm)
- 100
- 110
- 120
- 130
- 140
- 150
- 160
- 170
- 180
- 190
- 200
- 220
- 240
- 260
- 280
- 300
- 320
Fuse
- MB20
- MB22
- MB24
- MB26
- MB28
- MB30
- MB32
- MB34
- MB36
- MB38
- MB40
- MB44
- MB48
- MB52
- MB56
- MS3160
- MS3164
Locknut
- KM20
- KM22
- KM24
- KM26
- KM28
- KM30
- KM32
- KM34
- KM36
- KM38
- KM40
- HM44T
- HM48T
- HM52T
- HM56T
- HM3160
- HM3164
Width nut and lock B2(mm)
- 19.75
- 20.75
- 22
- 23
- 24
- 26
- 27.5
- 28.5
- 29.5
- 30.5
- 31.5
- 35
- 37
- 38
- 39
- 40
Width nut and lock B3(mm)
- 52
- 55
Thread oil connector G1
- M6
Distance oil connector a(mm)
- 3.5
- 4.2
Thread depth oil connector I_G1(mm)
- 7
Type
- H31
Est. shipping days
- All
- Within 3 working days
- Within 4 working days
- Within 5 working days
- Within 9 working days
- Within 17 working days

FAG

Adapter sleeves H31, main dimensions to DIN 5415, taper 1:12

Catalog

Part number:

Still undefined. 27 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Inner diameter

(mm)

Outer diameter

(mm)

Width

(mm)

Thread G

Sleeve length B1

(mm)

Bore diameter bearing d

(mm)

Fuse

Locknut

Width nut and lock B2

(mm)

Width nut and lock B3

(mm)

Thread oil connector G1

Distance oil connector a

(mm)

Thread depth oil connector I_G1

(mm)

Minimum order quantity

Data sheet	90	130	76	M100x2	76	100	MB20	KM20	19.75	-	-	-	-	1 pieces
Data sheet	100	145	81	M110x2	81	110	MB22	KM22	20.75	-	-	-	-	1 pieces
Data sheet	110	155	88	M120x2	88	120	MB24	KM24	22	-	-	-	-	1 pieces
Data sheet	115	165	92	M130x2	92	130	MB26	KM26	23	-	-	-	-	1 pieces
Data sheet	125	180	97	M140x2	97	140	MB28	KM28	24	-	-	-	-	1 pieces
Data sheet	135	195	111	M150x2	111	150	MB30	KM30	26	-	-	-	-	1 pieces
Data sheet	140	210	119	M160x3	119	160	MB32	KM32	27.5	-	-	-	-	1 pieces
Data sheet	140	210	119	M160x3	119	160	MB32	KM32	27.5	-	M6	4.2	7	1 pieces
Data sheet	150	220	122	M170x3	122	170	MB34	KM34	28.5	-	-	-	-	1 pieces
Data sheet	150	220	122	M170x3	122	170	MB34	KM34	28.5	-	M6	4.2	7	1 pieces
Data sheet	160	230	131	M180x3	131	180	MB36	KM36	29.5	-	-	-	-	1 pieces
Data sheet	160	230	131	M180x3	131	180	MB36	KM36	29.5	-	M6	4.2	7	1 pieces
Data sheet	170	240	141	M190x3	141	190	MB38	KM38	30.5	-	-	-	-	1 pieces
Data sheet	170	240	141	M190x3	141	190	MB38	KM38	30.5	-	M6	4.2	7	1 pieces
Data sheet	180	250	150	M200x3	150	200	MB40	KM40	31.5	-	M6	4.2	7	1 pieces
Data sheet	200	280	161	Tr220X4	161	220	MB44	HM44T	35	-	-	-	-	1 pieces
Data sheet	200	280	161	Tr220X4	161	220	MB44	HM44T	35	-	M6	4.2	7	1 pieces
Data sheet	220	300	172	Tr240X4	172	240	MB48	HM48T	37	-	-	-	-	1 pieces
Data sheet	220	300	172	Tr240X4	172	240	MB48	HM48T	37	-	M6	4.2	7	1 pieces
Data sheet	240	330	190	Tr260X4	190	260	MB52	HM52T	38	-	-	-	-	1 pieces
Data sheet	240	330	190	Tr260X4	190	260	MB52	HM52T	38	-	M6	4.2	7	1 pieces
Data sheet	260	350	195	Tr280X4	195	280	MB56	HM56T	39	-	-	-	-	1 pieces
Data sheet	260	350	195	Tr280X4	195	280	MB56	HM56T	39	-	M6	4.2	7	1 pieces
Data sheet	280	380	208	Tr300X4	208	300	MS3160	HM3160	40	52	-	-	-	1 pieces
Data sheet	280	380	208	Tr300X4	208	300	MS3160	HM3160	-	52	M6	4.2	7	1 pieces
-	300	400	226	Tr320X5	226	320	MS3164	HM3164	-	55	M6	3.5	7	1 pieces
Data sheet	300	400	226	Tr320X5	226	320	MS3164	HM3164	-	55	M6	3.5	7	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

111.02 € ( 132.11 € )	3 working days
122.13 € ( 145.33 € )	5 working days
122.13 € ( 145.33 € )	5 working days
152.33 € ( 181.27 € )	5 working days
179.31 € ( 213.38 € )	3 working days
247.20 € ( 294.17 € )	3 working days
317.36 € ( 377.66 € )	5 working days
734.53 € ( 874.09 € )	5 working days
341.45 € ( 406.33 € )	5 working days
787.09 € ( 936.64 € )	5 working days
477.77 € ( 568.55 € )	17 working days
845.02 € ( 1,005.57 € )	9 working days
427.31 € ( 508.50 € )	3 working days
931.53 € ( 1,108.52 € )	5 working days
847.48 € ( 1,008.50 € )	5 working days
890.39 € ( 1,059.56 € )	5 working days
1,082.12 € ( 1,287.72 € )	5 working days
912.91 € ( 1,086.36 € )	3 working days
1,201.18 € ( 1,429.40 € )	5 working days
1,232.70 € ( 1,466.91 € )	5 working days
1,479.60 € ( 1,760.72 € )	5 working days
1,526.86 € ( 1,816.96 € )	5 working days
1,867.45 € ( 2,222.27 € )	5 working days
1,767.64 € ( 2,103.49 € )	5 working days
2,274.55 € ( 2,706.71 € )	5 working days
2,882.83 € ( 3,430.57 € )	4 working days
3,691.11 € ( 4,392.42 € )	5 working days

Catalog

Products homepage

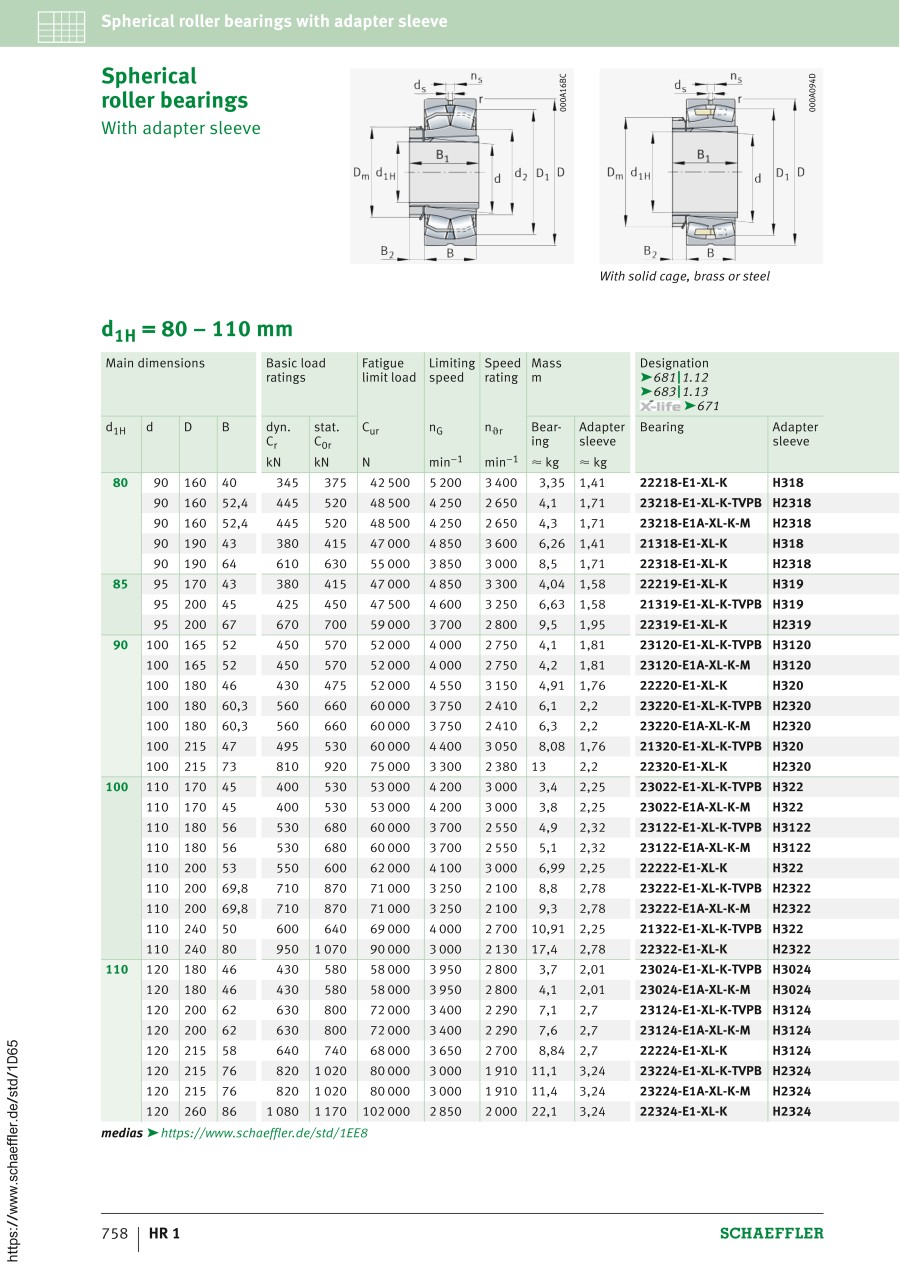

Catalog (2-page spread)
