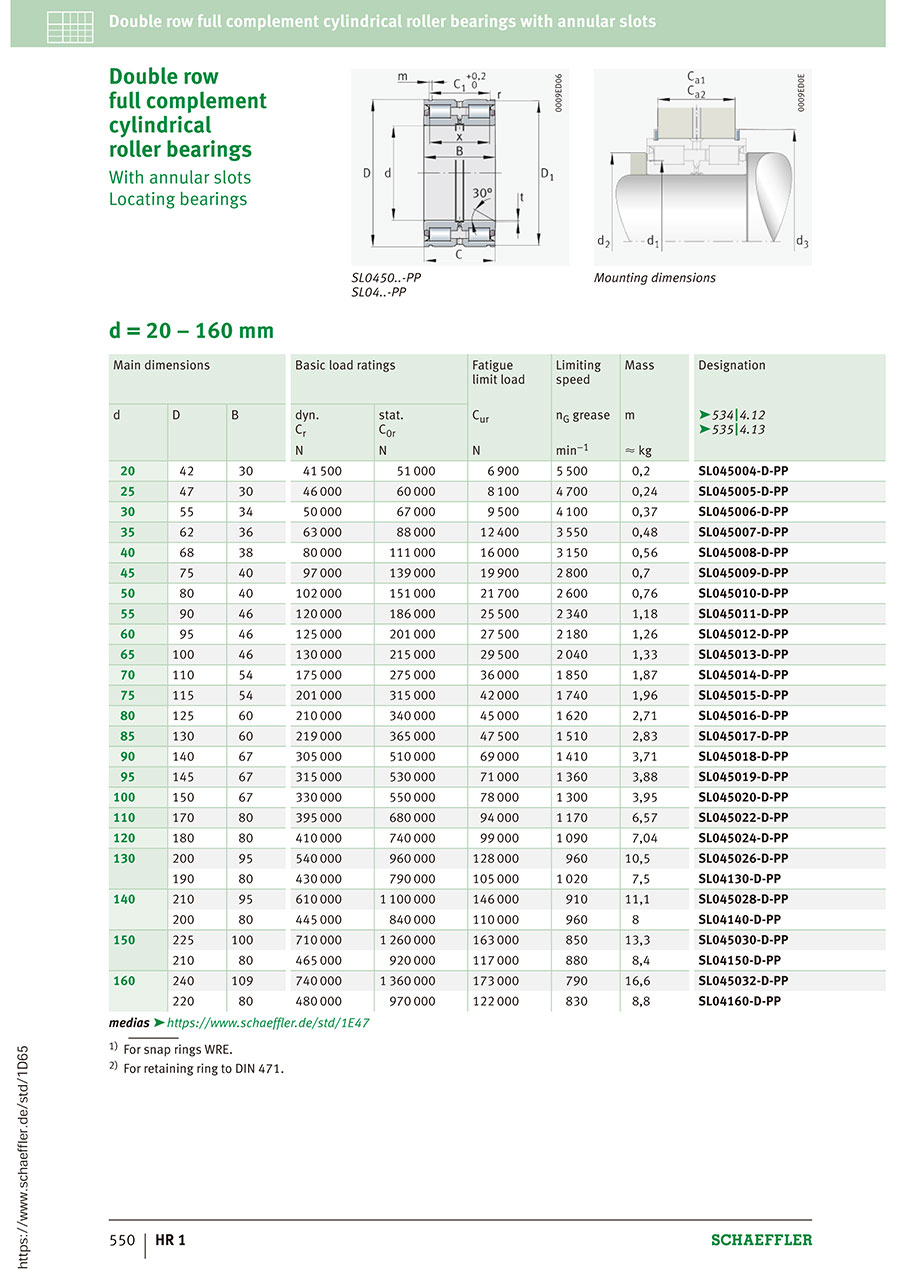

Cylindrical roller bearings SL04..-PP, locating bearing, double row, full complement cylindrical roller set, light series, with annular slots, lip seals on both sides
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Internal Diameter (mm) | Outer Diameter (mm) | Width (mm) | Basic Load Rating, Dynamic Rating (N) | Basic Load Rating, Static Rating (N) | Bearing clearance identifier | RoHS Certificate | REACH Certificate | Customs tariff — weight | Customs tariff — weight unit | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 722.03 € | 1 | Available | 3 Days | 100 | 160 | 80 | - | - | - | Available | Available | 5.8 | kg | |
| - | 722.03 € | 1 | Available | 3 Days | 100 | 160 | 80 | - | - | C3 | Available | Available | 5.8 | kg | |
793.68 € | 1 | Available | 3 Days | 130 | 190 | 80 | 430000 | 790000 | - | - | - | - | - | ||
| - | 990.88 € | 1 | Available | 5 Days | 130 | 190 | 80 | - | - | - | - | - | - | - | |
| - | 943.34 € | 1 | Available | 5 Days | 130 | 190 | 80 | - | - | - | - | - | - | - | |
| - | - | 1 | 4 Days | 130 | 190 | 80 | - | - | - | - | - | - | - | ||
807.62 € | 1 | Available | 3 Days | 140 | 200 | 80 | 445000 | 840000 | - | - | - | - | - | ||
| - | 1,008.60 € | 1 | Available | 5 Days | 140 | 200 | 80 | 445000 | 840000 | - | - | - | - | - | |
| - | - | 1 | 4 Days | 140 | 200 | 80 | - | - | C3 | Available | Available | 7.6 | kg | ||
| - | 959.92 € | 1 | Available | 5 Days | 140 | 200 | 80 | - | - | - | - | - | - | - | |
1,152.37 € | 1 | Available | 5 Days | 150 | 210 | 80 | 465000 | 920000 | - | - | - | - | - | ||
| - | 1,210.97 € | 1 | Available | 5 Days | 150 | 210 | 80 | - | - | - | - | - | - | - | |
| - | - | 1 | 4 Days | 150 | 210 | 80 | - | - | C3 | Available | Available | 7.936 | kg | ||
| - | 1,152.37 € | 1 | Available | 5 Days | 150 | 210 | 80 | - | - | - | - | - | - | - | |
1,047.68 € | 1 | Available | 3 Days | 160 | 220 | 80 | 480000 | 970000 | - | - | - | - | - | ||
| - | 1,308.27 € | 1 | Available | 5 Days | 160 | 220 | 80 | - | - | - | - | - | - | - | |
| - | - | 1 | 4 Days | 160 | 220 | 80 | - | - | C3 | Available | Available | 8.32 | kg | ||
| - | 1,245.23 € | 1 | Available | 5 Days | 160 | 220 | 80 | - | - | - | - | - | - | - | |
| - | - | 1 | 4 Days | 160 | 220 | 80 | - | - | - | - | - | - | - | ||
1,345.88 € | 1 | Available | 5 Days | 170 | 230 | 80 | 490000 | 1030000 | - | - | - | - | - | ||
| - | 1,412.23 € | 1 | Available | 5 Days | 170 | 230 | 80 | - | - | - | - | - | - | - | |
| - | - | 1 | 4 Days | 170 | 230 | 80 | - | - | - | - | - | - | - | ||
1,452.03 € | 1 | Available | 5 Days | 180 | 240 | 80 | 500000 | 1080000 | - | - | - | - | - | ||
| - | 1,525.03 € | 1 | Available | 5 Days | 180 | 240 | 80 | - | - | - | - | - | - | - | |
| - | - | 1 | 4 Days | 180 | 240 | 80 | - | - | - | - | - | - | - | ||
| - | - | 1 | 4 Days | 180 | 240 | 80 | - | - | - | - | - | - | - | ||
| - | - | 1 | 4 Days | 180 | 240 | 80 | - | - | - | - | - | - | - | ||
2,003.89 € | 1 | Available | 5 Days | 190 | 260 | 80 | 520000 | 1160000 | - | - | - | - | - | ||
| - | - | 1 | 4 Days | 190 | 260 | 80 | - | - | - | - | - | - | - | ||
| - | - | 1 | 4 Days | 190 | 260 | 80 | - | - | - | - | - | - | - | ||
1,702.71 € | 1 | Available | 3 Days | 200 | 270 | 80 | 540000 | 1210000 | - | - | - | - | - | ||
| - | 2,125.54 € | 1 | Available | 5 Days | 200 | 270 | 80 | - | - | - | - | - | - | - | |
| - | 2,023.80 € | 1 | Available | 5 Days | 200 | 270 | 80 | - | - | - | - | - | - | - | |
| - | - | 1 | 4 Days | 200 | 270 | 80 | - | - | - | - | - | - | - | ||
2,915.15 € | 1 | Available | 5 Days | 220 | 300 | 95 | 700000 | 1550000 | - | - | - | - | - | ||
| - | 3,061.12 € | 1 | Available | 5 Days | 220 | 300 | 95 | - | - | - | - | - | - | - | |
| - | - | 1 | 4 Days | 220 | 300 | 95 | - | - | - | - | - | - | - | ||
| - | - | 1 | 4 Days | 220 | 300 | 95 | - | - | - | - | - | - | - | ||
2,973.75 € | 1 | Available | 5 Days | 240 | 320 | 95 | 740000 | 1700000 | - | - | - | - | - | ||
| - | - | 1 | 4 Days | 240 | 320 | 95 | - | - | - | - | - | - | - | ||
| - | - | 1 | 4 Days | 240 | 320 | 95 | - | - | - | - | - | - | - | ||
| - | - | 1 | 4 Days | 240 | 320 | 95 | - | - | - | - | - | - | - | ||
3,419.45 € | 1 | Available | 5 Days | 260 | 340 | 95 | 840000 | 1990000 | - | - | - | - | - | ||
| - | - | 1 | 4 Days | 260 | 340 | 95 | - | - | - | - | - | - | - | ||
- | 1 | 4 Days | 300 | 380 | 95 | 900000 | 2250000 | - | Available | Available | 23.9 | kg | |||
| - | - | 1 | 4 Days | 300 | 380 | 95 | - | - | C3 | Available | Available | 23.9 | kg |
Loading...
Configure
Basic Attributes
-
Internal Diameter(mm)
-
Outer Diameter(mm)
-
Width(mm)
-
Bearing clearance identifier
- C3
-
RoHS Certificate
- Available
-
REACH Certificate
- Available
-
Customs tariff — weight
-
Customs tariff — weight unit
- kg
-
Type
- SL
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 3 Days or Less
- 4 Days or Less
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
