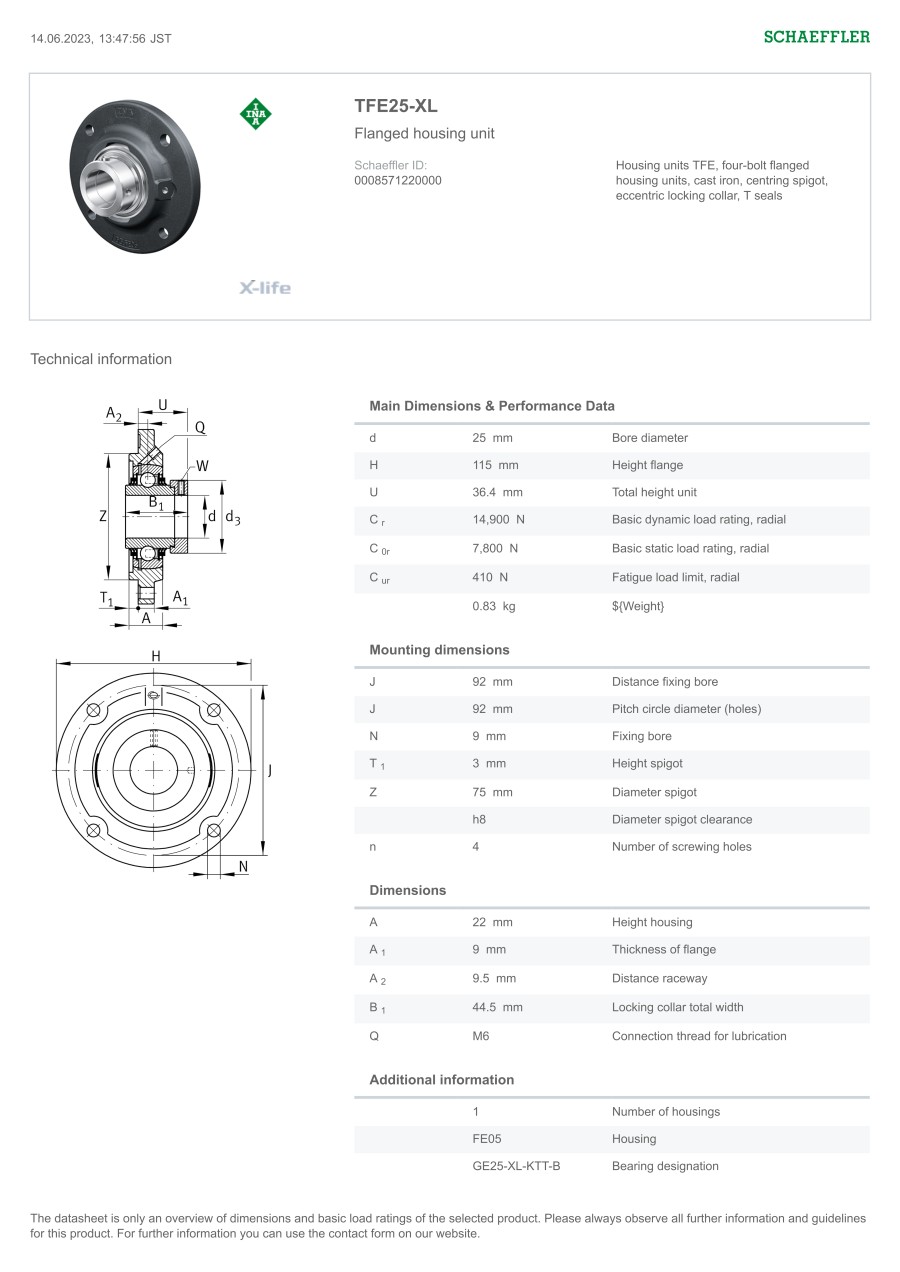

Housing units TFE, four-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, T seals
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| TFE25-XL |
| TFE30-XL |
| TFE35-XL |
| TFE40-XL |
| TFE50-XL-N |
| TFE60-XL |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Shaft Bore Dia. d (mm) | Basic Load Rating, Dynamic Rating (N) | Basic Load Rating, Static Rating (N) | Width (mm) | H (mm) | Housing | |
|---|---|---|---|---|---|---|---|---|---|---|---|
59.82 € | 1 | Available | 5 Days | 25 | 14900 | 7800 | 44.5 | - | FE05 | ||
72.73 € | 1 | Available | 5 Days | 30 | 20700 | 11300 | 48.4 | 127 | FE06 | ||
61.88 € | 1 | Available | 3 Days | 35 | 25500 | 15300 | 51.1 | 135 | FE07 | ||
97.98 € | 1 | Available | 5 Days | 40 | 34500 | 19800 | 56.5 | - | FE08 | ||
123.97 € | 1 | Available | 5 Days | 50 | 37500 | 23200 | 62.8 | - | FE10 | ||
203.87 € | 1 | Available | 5 Days | 60 | 56000 | 36000 | 77.9 | - | FE12 |
Loading...
Configure
Basic Attributes
-
Shaft Bore Dia. d(mm)
-
Width(mm)
-
H(mm)
-
Housing
-
Type
- TFE
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 3 Days or Less
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
