Hydraulic rod ends GK..-DO, with welding face, requiring maintenance, to DIN ISO 12 240
- Volume Discount
・I.D. D(mm): 17-80
・Outer Diameter(mm): 46-180
・Product size (length)(mm): 58-231
・DIN ISO 12 240
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|

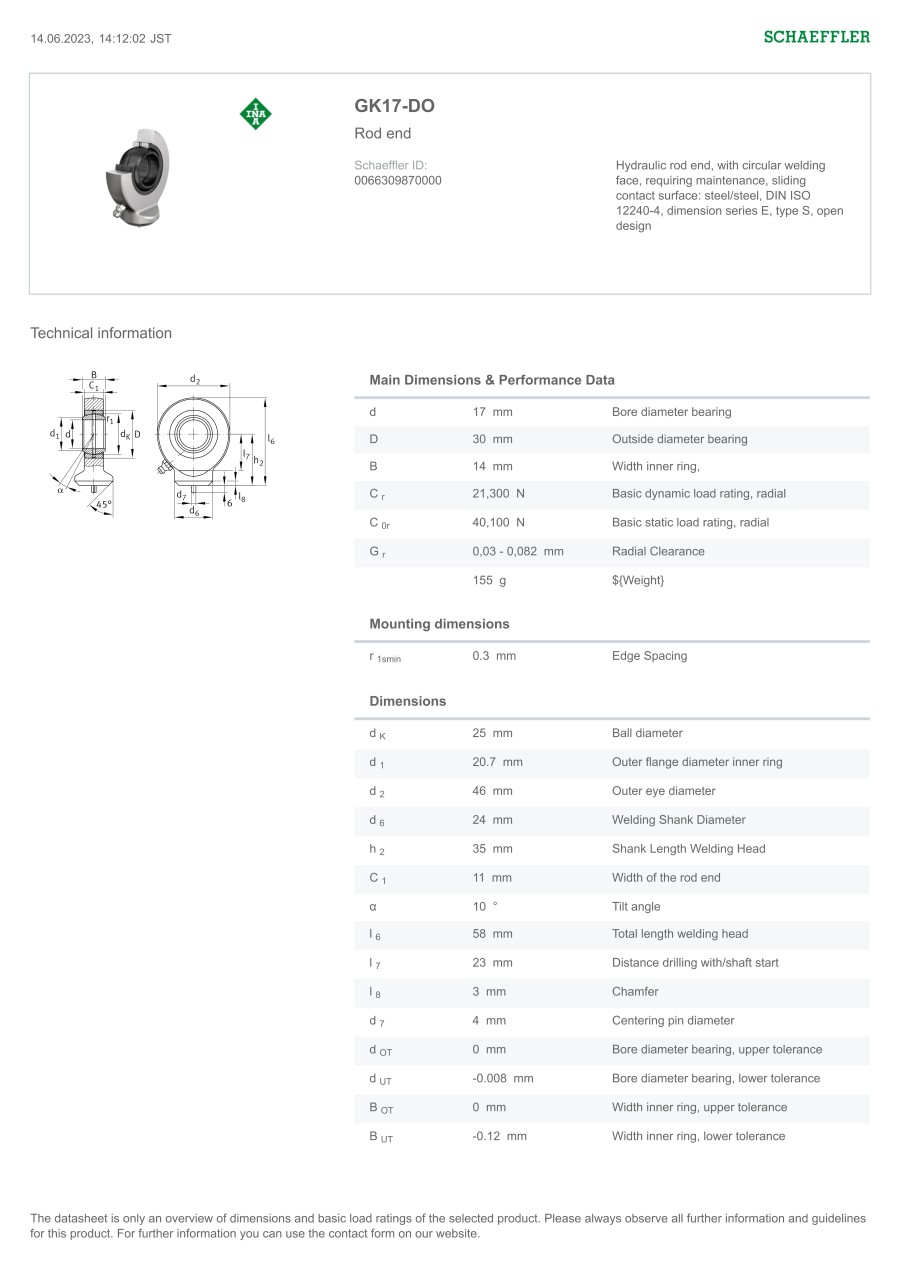

| GK17-DO |
| GK20-DO |
| GK25-DO |
| GK30-DO |
| GK35-DO |
| GK40-DO |
| GK45-DO |
| GK50-DO |
| GK60-DO |
| GK70-DO |
| GK80-DO |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | I.D. D (mm) | Static load capacity radial (N) | Basic Load Rating (kN) | Allowable Tilt Angle α (deg) | Outer Diameter (mm) | Product size (length) (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
31.91 € | 1 | Available | 3 Days | 17 | 40100 | 21.3 | 10 | 46 | 58 | ||
45.60 € | 1 | Available | 5 Days | 20 | 53700 | 29.6 | 9 | 53 | 64.5 | ||
45.62 € | 1 | Available | 3 Days | 25 | 70800 | 48.3 | 7 | 64 | 77 | ||
72.50 € | 1 | Available | 5 Days | 30 | 95700 | 62.3 | 6 | 73 | 87.5 | ||
66.62 € | 1 | Available | 3 Days | 35 | 128000 | 79.9 | 6 | 82 | 102 | ||
83.88 € | 1 | Available | 3 Days | 40 | 156000 | 99.1 | 7 | 92 | 115 | ||
143.42 € | 1 | 17 Days | 45 | 208000 | 128 | 7 | 102 | 128 | |||
187.42 € | 1 | Available | 5 Days | 50 | 252000 | 157 | 6 | 112 | 144 | ||
246.75 € | 1 | Available | 5 Days | 60 | 389000 | 245 | 6 | 135 | 167.5 | ||
298.22 € | 1 | Available | 3 Days | 70 | 511000 | 313 | 6 | 160 | 195 | ||
433.35 € | 1 | Available | 3 Days | 80 | 624000 | 402 | 6 | 180 | 231 |
Loading...
Basic information
| Operating Temperature Range(°C) | -60::200 |
|---|
Configure
Basic Attributes
-
I.D. D(mm)
-
Allowable Tilt Angle α(deg)
-
Outer Diameter(mm)
-
Product size (length)(mm)
-
Type
- GK
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 3 Days or Less
- 5 Days or Less
- 17 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
