Spherical roller bearings 213..-E1, main dimensions to DIN 635-2

Configure

Inner Diameter d(mm)
- 20
- 25
- 30
- 35
- 40
- 45
- 50
- 55
- 60
- 65
- 70
- 75
- 80
- 85
- 90
- 95
- 100
- 110
Outer Diameter D(mm)
- 52
- 62
- 72
- 80
- 90
- 100
- 110
- 120
- 130
- 140
- 150
- 160
- 170
- 180
- 190
- 200
- 215
- 240
Width B (or T)(mm)
- 15
- 17
- 19
- 21
- 23
- 25
- 27
- 29
- 31
- 33
- 35
- 37
- 39
- 41
- 43
- 45
- 47
- 50
Bearing clearance identifier
- C3
Type
- 2130
- 2131
- 2132
CAD
- 3D
Est. shipping days
- All
- Within 3 working days
- Within 5 working days
- Within 6 working days
- Within 12 working days
- Within 17 working days

FAG

Spherical roller bearings 213..-E1, main dimensions to DIN 635-2

Catalog

Part number:

Still undefined. 58 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Inner Diameter d

(mm)

Outer Diameter D

(mm)

Width B (or T)

(mm)

Rotational Speed

(1/min)

Basic Load Rating, Dynamic Rating

(N)

Basic Load Rating, Static Rating

(N)

Bearing clearance identifier

Minimum order quantity

Data sheet	20	52	15	16000	41000	33000	-	1 pieces
-	20	52	15	-	-	-	C3	1 pieces
Data sheet	25	62	17	13900	52000	43500	-	1 pieces
-	25	62	17	-	-	-	C3	1 pieces
Data sheet	30	72	19	12000	72000	63000	-	1 pieces
-	30	72	19	-	-	-	C3	1 pieces
Data sheet	35	80	21	10900	83000	74000	-	1 pieces
-	35	80	21	-	-	-	C3	1 pieces
Data sheet	40	90	23	9800	109000	107000	-	1 pieces
-	40	90	23	-	-	-	C3	1 pieces
-	40	90	23	-	-	-	-	1 pieces
-	40	90	23	-	-	-	C3	1 pieces
Data sheet	45	100	25	9000	129000	130000	-	1 pieces
-	45	100	25	-	-	-	C3	1 pieces
-	45	100	25	-	-	-	-	1 pieces
Data sheet	50	110	27	9000	129000	130000	-	1 pieces
-	50	110	27	-	-	-	C3	1 pieces
-	50	110	27	-	-	-	-	1 pieces
-	50	110	27	-	-	-	C3	1 pieces
Data sheet	55	120	29	8100	160000	155000	-	1 pieces
-	55	120	29	-	-	-	C3	1 pieces
-	55	120	29	-	-	-	-	1 pieces
-	55	120	29	-	-	-	C3	1 pieces
Data sheet	60	130	31	6700	211000	226000	-	1 pieces
-	60	130	31	-	-	-	C3	1 pieces
-	60	130	31	-	-	-	-	1 pieces
-	60	130	31	-	-	-	C3	1 pieces
Data sheet	65	140	33	6200	250000	270000	-	1 pieces
-	65	140	33	-	-	-	C3	1 pieces
-	65	140	33	-	-	-	-	1 pieces
-	65	140	33	-	-	-	C3	1 pieces
Data sheet	70	150	35	6200	250000	270000	-	1 pieces
-	70	150	35	-	-	-	C3	1 pieces
-	70	150	35	-	-	-	-	1 pieces
-	70	150	35	-	-	-	C3	1 pieces
Data sheet	75	160	37	5700	305000	325000	-	1 pieces
-	75	160	37	-	-	-	C3	1 pieces
-	75	160	37	-	-	-	-	1 pieces
-	75	160	37	-	-	-	C3	1 pieces
Data sheet	80	170	39	5700	305000	325000	-	1 pieces
-	80	170	39	-	-	-	C3	1 pieces
-	80	170	39	-	-	-	-	1 pieces
-	80	170	39	-	-	-	C3	1 pieces
Data sheet	85	180	41	5200	345000	375000	-	1 pieces
-	85	180	41	-	-	-	C3	1 pieces
-	85	180	41	-	-	-	C3	1 pieces
Data sheet	90	190	43	4850	380000	415000	-	1 pieces
-	90	190	43	-	-	-	C3	1 pieces
-	90	190	43	-	-	-	-	1 pieces
-	90	190	43	-	-	-	C3	1 pieces
-	95	200	45	-	-	-	-	1 pieces
-	95	200	45	-	-	-	C3	1 pieces
Data sheet	95	200	45	4600	425000	450000	-	1 pieces
-	95	200	45	-	-	-	C3	1 pieces
Data sheet	100	215	47	4400	495000	530000	-	1 pieces
-	100	215	47	-	-	-	C3	1 pieces
Data sheet	110	240	50	4000	600000	640000	-	1 pieces
-	110	240	50	-	-	-	C3	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

53.72 € ( 63.93 € )	3 working days
53.72 € ( 63.93 € )	3 working days
56.48 € ( 67.21 € )	3 working days
56.48 € ( 67.21 € )	3 working days
75.04 € ( 89.30 € )	5 working days
59.23 € ( 70.48 € )	3 working days
62.26 € ( 74.09 € )	3 working days
62.26 € ( 74.09 € )	3 working days
84.95 € ( 101.09 € )	5 working days
84.95 € ( 101.09 € )	5 working days
84.95 € ( 101.09 € )	5 working days
84.95 € ( 101.09 € )	5 working days
73.40 € ( 87.35 € )	3 working days
73.40 € ( 87.35 € )	3 working days
73.40 € ( 87.35 € )	3 working days
84.15 € ( 100.14 € )	3 working days
84.15 € ( 100.14 € )	3 working days
84.15 € ( 100.14 € )	3 working days
84.15 € ( 100.14 € )	3 working days
98.42 € ( 117.12 € )	3 working days
98.42 € ( 117.12 € )	3 working days
98.42 € ( 117.12 € )	3 working days
98.42 € ( 117.12 € )	3 working days
141.57 € ( 168.47 € )	5 working days
141.57 € ( 168.47 € )	5 working days
141.57 € ( 168.47 € )	5 working days
141.57 € ( 168.47 € )	5 working days
130.62 € ( 155.44 € )	3 working days
130.62 € ( 155.44 € )	3 working days
130.62 € ( 155.44 € )	3 working days
130.62 € ( 155.44 € )	3 working days
150.85 € ( 179.51 € )	3 working days
150.85 € ( 179.51 € )	3 working days
150.85 € ( 179.51 € )	3 working days
150.85 € ( 179.51 € )	6 working days
192.10 € ( 228.60 € )	12 working days
168.32 € ( 200.30 € )	3 working days
168.32 € ( 200.30 € )	3 working days
213.23 € ( 253.74 € )	5 working days
189.48 € ( 225.48 € )	3 working days
189.48 € ( 225.48 € )	3 working days
189.48 € ( 225.48 € )	3 working days
189.48 € ( 225.48 € )	3 working days
272.07 € ( 323.76 € )	5 working days
214.77 € ( 255.58 € )	3 working days
214.77 € ( 255.58 € )	3 working days
244.66 € ( 291.15 € )	3 working days
244.66 € ( 291.15 € )	3 working days
309.93 € ( 368.82 € )	5 working days
309.93 € ( 368.82 € )	5 working days
331.73 € ( 394.76 € )	17 working days
290.66 € ( 345.89 € )	3 working days
290.66 € ( 345.89 € )	3 working days
290.66 € ( 345.89 € )	3 working days
341.26 € ( 406.10 € )	3 working days
341.26 € ( 406.10 € )	3 working days
512.28 € ( 609.61 € )	17 working days
448.86 € ( 534.14 € )	3 working days

Catalog

Products homepage

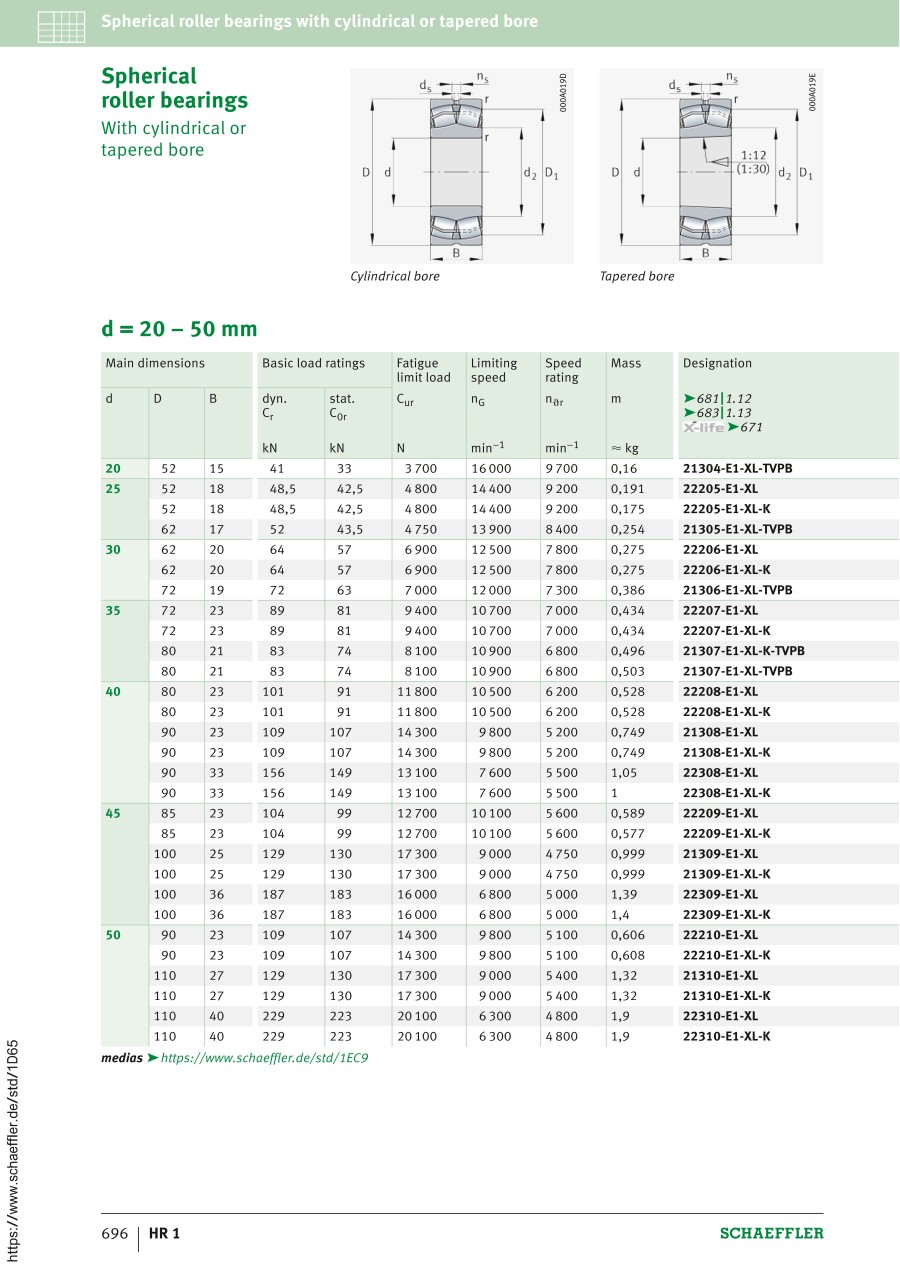

Catalog (2-page spread)
