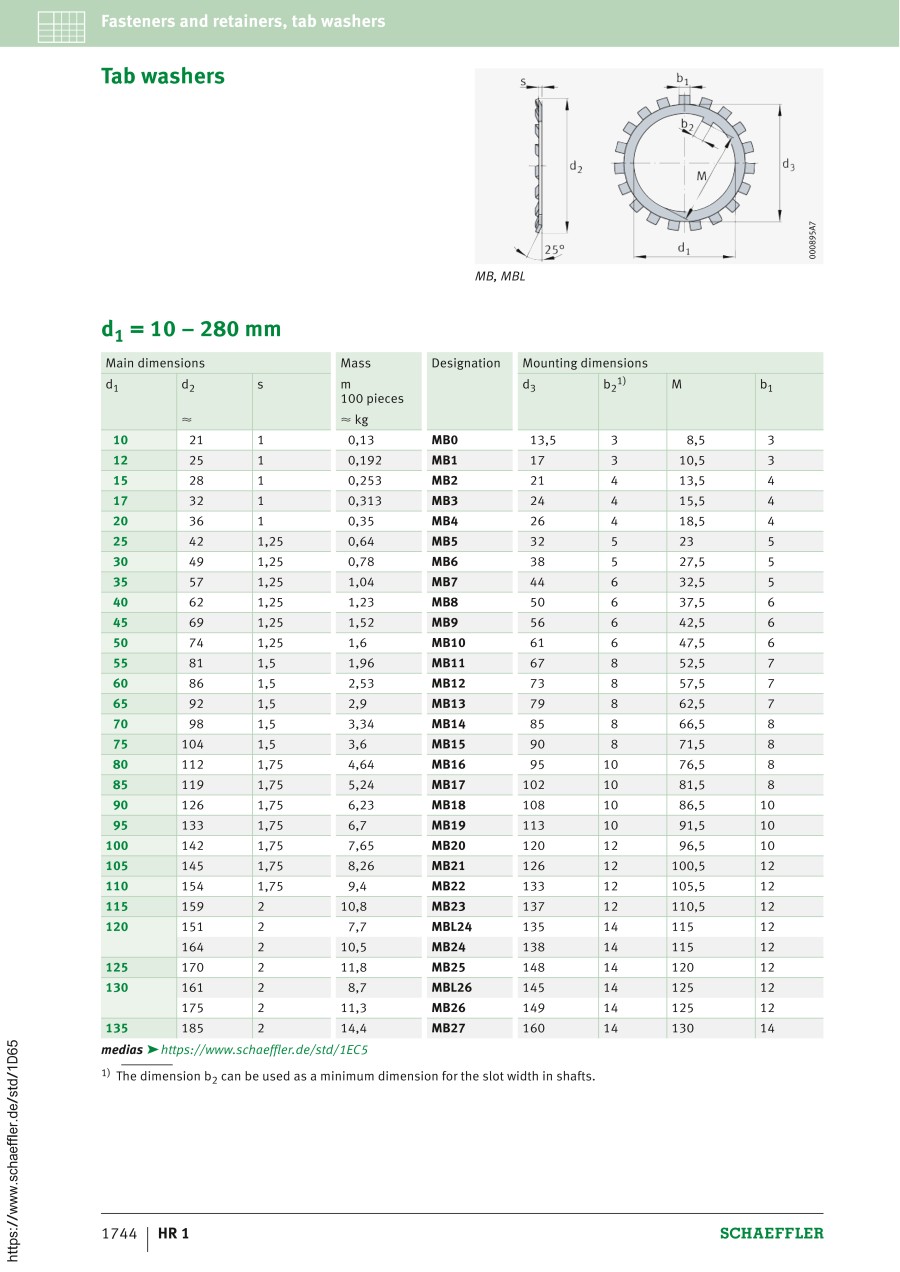

Tab washers MBL, main dimensions to DIN 5406
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| MBL24 |
| MBL26 |
| MBL28 |
| MBL30 |
| MBL32 |
| MBL34 |
| MBL36 |
| MBL38 |
| MBL40 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Inner Diameter (mm) | Outer Diameter (mm) | Width (mm) | |
|---|---|---|---|---|---|---|---|---|
25.75 € | 1 | Available | 3 Days | 120 | 151 | 2 | ||
29.23 € | 1 | Available | 5 Days | 130 | 161 | 2 | ||
29.23 € | 1 | Available | 5 Days | 140 | 171 | 2 | ||
26.60 € | 1 | Available | 3 Days | 150 | 188 | 2 | ||
39.27 € | 1 | Available | 5 Days | 160 | 199 | 2.5 | ||
37.31 € | 1 | Available | 3 Days | 170 | 211 | 2.5 | ||
37.51 € | 1 | Available | 3 Days | 180 | 221 | 2.5 | ||
53.31 € | 1 | Available | 5 Days | 190 | 231 | 2.5 | ||
53.59 € | 1 | Available | 5 Days | 200 | 248 | 2.5 |
Loading...
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
