SMC

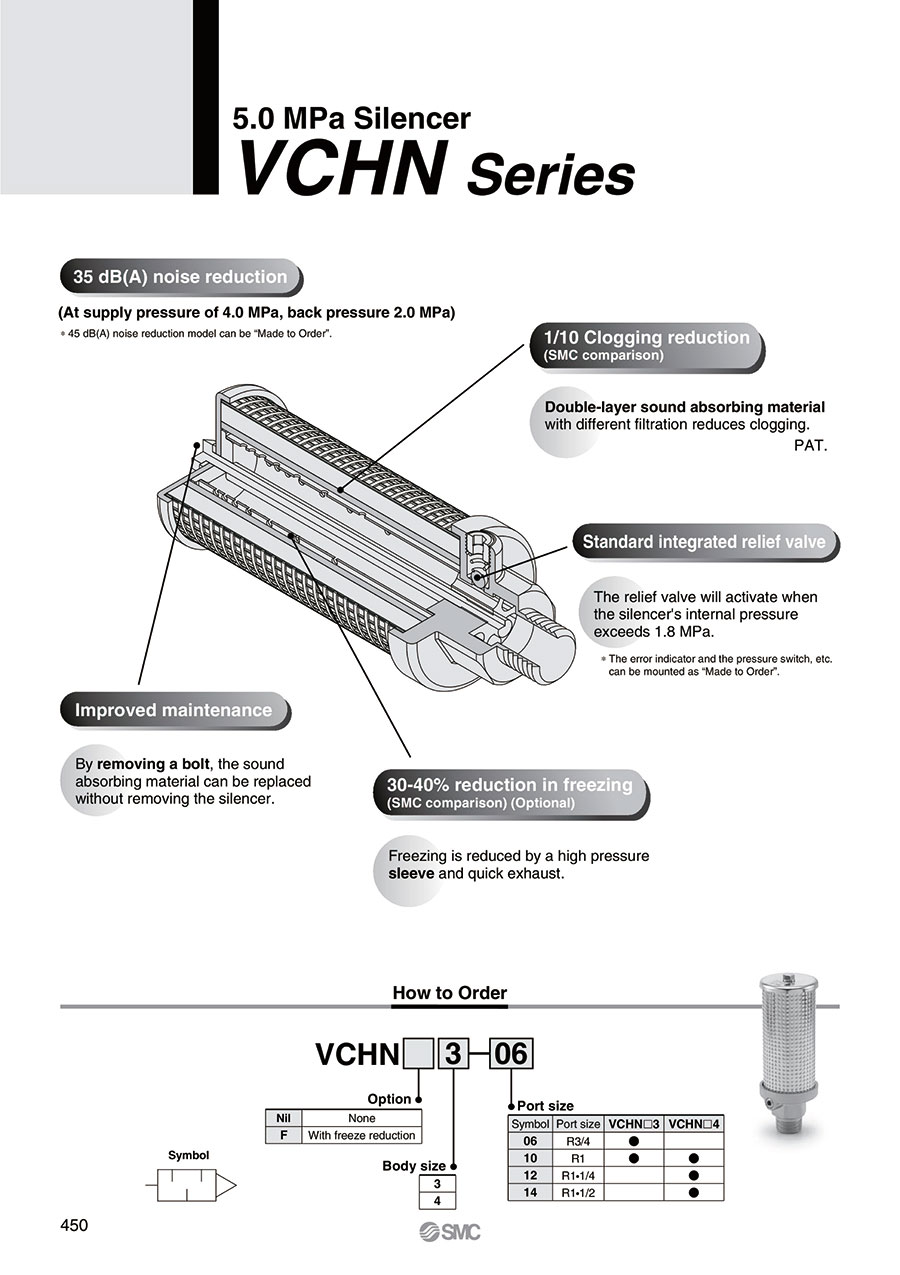

VCHN3 / 4, 5.0 MPa Silencer

VCHN3 / 4, 5.0 MPa Silencer

Caution

  • Product images may be representative images. Refer to the catalog for details.

Part number:

Still undefined. 9 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    VCHN3-06
    VCHN3-10
    VCHN4-10
    VCHN4-14
    VCHNF3-06
    VCHNF3-10
    VCHNF4-10
    VCHNF4-12
    VCHNF4-14

    Effective Sectional Area

    (mm2)

    Effective Sectional Area【classification】

    (mm2)

    Mounting Thread Nominal

    Body size

    Option

    		Minimum order quantity
    200
    Up to 200
    [3/4] 3/4
    3
    None
    1 pieces
    280
    Up to 300
    [1] 1
    3
    None
    1 pieces
    280
    Up to 300
    [1] 1
    4
    None
    1 pieces
    370
    Up to 400
    [1 1/2] 1 1/2
    4
    None
    1 pieces
    160
    Up to 200
    [3/4] 3/4
    3
    With freeze reduction
    1 pieces
    180
    Up to 200
    [1] 1
    3
    With freeze reduction
    1 pieces
    180
    Up to 200
    [1] 1
    4
    With freeze reduction
    1 pieces
    320
    Up to 400
    [1 1/4] 1 1/4
    4
    With freeze reduction
    1 pieces
    320
    Up to 400
    [1 1/2] 1 1/2
    4
    With freeze reduction
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    121.47 €
    ( 144.55 € )
    7 working days
    121.47 €
    ( 144.55 € )
    4 working days
    144.32 €
    ( 171.74 € )
    68 working days
    144.32 €
    ( 171.74 € )
    4 working days
    142.50 €
    ( 169.57 € )
    12 working days
    142.50 €
    ( 169.57 € )
    26 working days
    165.35 €
    ( 196.77 € )
    26 working days
    165.35 €
    ( 196.77 € )
    4 working days
    165.35 €
    ( 196.77 € )
    4 working days
  • 1

    • More Information

    Basic information

    Silencer made by SMC.
    [Features]
    · Noise reduction effect of 35 dB (A)
    · Reduced clogging by 1/10 (in-house comparison).
    · Relief valve built-in standard
    · Enhanced maintainability
    · 30 to 40% freezing reduction effect (option)
