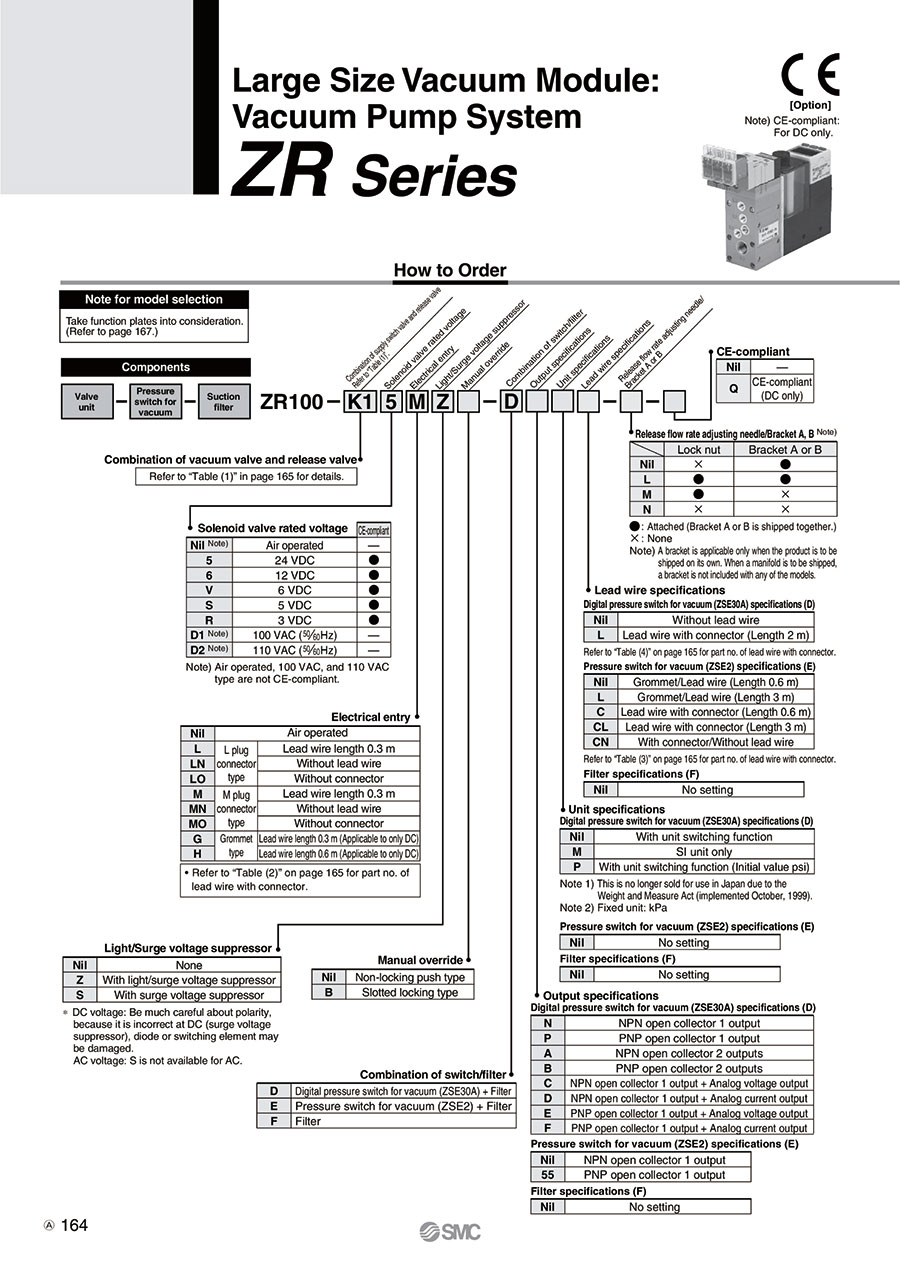

Large Size Vacuum Module: Vacuum Pump System ZR Series
[Features]
· Ideal for use with multiple or large-sized pads.
· A vacuum module which is suitable for workpieces ranging in size from 0.5 to 5 kg.
· Modular design makes it possible to combine functions as required.
· Vacuum self-holding function by means of double solenoid valves ensures safety.
· Compact and lightweight.
· Suitable for use in manifolds.
(i)Remark
- Refer to the manufacturer's catalog for specifications and material details.
- The product images may be representative images only. Refer to the manufacturer's catalog for shape details.
- CAD data is not available for some models.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Additional Function | Combination of supply valve and release valve | Electrical entry | Light/surge voltage suppressor | Manual | Output specifications | Unit specifications | Lead wire specifications | Vacuum switch type | Vacuum switch electrical entry | Vacuum break flow adjusting needle | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
363.15 € | 1 | 26 Days | Filter / Valves For Vacuum Generation / Vacuum Destructive Valve | Supply valve (double solenoid) / release valve (N.C.) | L-type plug connector type | With light/surge voltage suppressor | Non-locking push type | N/A | N/A | Without lead wire | Filter | N/A | Lock nut | ||
452.18 € | 1 | 26 Days | Filter / Valves For Vacuum Generation / Mechanical Type, Pressure Switch for Vacuum / Vacuum Destructive Valve | Supply valve (double solenoid) / release valve (N.C.) | L-type plug connector type | With light/surge voltage suppressor | Non-locking push type | PNP open collector 1 output | N/A | No connector | Vacuum pressure switch (ZSE2) + filter | Without lead wire with connector | No | ||
458.94 € | 1 | 26 Days | Filter / Valves For Vacuum Generation / Mechanical Type, Pressure Switch for Vacuum / Vacuum Destructive Valve | Supply valve (double solenoid) / release valve (N.C.) | L-type plug connector type | With light/surge voltage suppressor | Non-locking push type | PNP open collector 1 output | N/A | Lead wire length 0.3 m | Vacuum pressure switch (ZSE2) + filter | Lead wire with connector (length 3 m) | No | ||
458.94 € | 1 | 26 Days | Filter / Valves For Vacuum Generation / Mechanical Type, Pressure Switch for Vacuum / Vacuum Destructive Valve | Supply valve (double solenoid) / release valve (N.C.) | L-type plug connector type | With light/surge voltage suppressor | Non-locking push type | NPN open collector 1 output | N/A | Lead wire length 0.3 m | Vacuum pressure switch (ZSE2) + filter | Lead wire with connector (length 3 m) | No | ||
519.40 € | 1 | 26 Days | Filter / Valves For Vacuum Generation / With LED Display, Pressure Switch for Vacuum / Vacuum Destructive Valve | Supply valve (double solenoid) / release valve (N.C.) | M-type plug connector type | With light/surge voltage suppressor | Non-locking push type | PNP open collector 2 outputs | SI unit fixed | No connector | Digital pressure switch for vacuum (ZSE30A) + filter | Lead wire with connector (length: 2 m) | No | ||
355.81 € | 1 | 26 Days | Filter / Valves For Vacuum Generation / Vacuum Destructive Valve | Supply valve (double solenoid) / release valve (N.C.) | M-type plug connector type | With light/surge voltage suppressor | Non-locking push type | N/A | N/A | No connector | Filter | N/A | No | ||
355.81 € | 1 | 26 Days | Filter / Valves For Vacuum Generation / Vacuum Destructive Valve | Supply valve (double solenoid) / release valve (N.C.) | M-type plug connector type | With light/surge voltage suppressor | Locking slotted type | N/A | N/A | No connector | Filter | N/A | No | ||
357.76 € | 1 | 26 Days | Filter / Valves For Vacuum Generation / Vacuum Destructive Valve | Supply valve (double solenoid) / release valve (N.C.) | M-type plug connector type | With surge voltage suppressor | Non-locking push type | N/A | N/A | Lead wire length 0.3 m | Filter | N/A | No | ||
359.77 € | 1 | 26 Days | Filter / Valves For Vacuum Generation / Vacuum Destructive Valve | Supply valve (double solenoid) / release valve (N.C.) | M-type plug connector type | With light/surge voltage suppressor | Non-locking push type | N/A | N/A | Lead wire length 0.3 m | Filter | N/A | No | ||
465.92 € | 1 | 26 Days | Filter / Valves For Vacuum Generation / With LED Display, Pressure Switch for Vacuum / Vacuum Destructive Valve | Supply valve (N.C.) / release valve (N.C.) | L-type plug connector type | With light/surge voltage suppressor | Non-locking push type | PNP open collector 2 outputs | With unit selection function | Lead wire length 0.3 m | Digital pressure switch for vacuum (ZSE30A) + filter | Lead wire with connector (length: 2 m) | No | ||
398.69 € | 1 | 26 Days | Filter / Valves For Vacuum Generation / Mechanical Type, Pressure Switch for Vacuum / Vacuum Destructive Valve | Supply valve (N.C.) / release valve (N.C.) | L-type plug connector type | With light/surge voltage suppressor | Non-locking push type | NPN open collector 1 output | N/A | Lead wire length 0.3 m | Vacuum pressure switch (ZSE2) + filter | Lead wire with connector (length 0.6 m) | No | ||
308.69 € | 1 | 26 Days | Filter / Valves For Vacuum Generation / Vacuum Destructive Valve | Supply valve (N.C.) / release valve (N.C.) | L-type plug connector type | With light/surge voltage suppressor | Non-locking push type | N/A | N/A | Lead wire length 0.3 m | Filter | N/A | Lock nut | ||
302.31 € | 1 | 26 Days | Filter / Valves For Vacuum Generation / Vacuum Destructive Valve | Supply valve (N.C.) / release valve (N.C.) | M-type plug connector type | With light/surge voltage suppressor | Non-locking push type | N/A | N/A | Lead wire length 0.3 m | Filter | N/A | No |
Loading...
Basic information
| Type | Unit | Vacuum Port Connecting Port Shape | Rc1/8 | Air Supply Port Connecting Port Shape | Rc1/8 |
|---|---|---|---|---|---|
| Application | Single Item | Operating Temperature Range(°C) | 5::50 | Rated voltage | 24 V DC |
| Accessories | Bracket A or B | CE-marked | CE-marked |
Configure
Basic Attributes
-
Additional Function
- Filter
- Valves For Vacuum Generation
- Mechanical Type, Pressure Switch for Vacuum
- With LED Display, Pressure Switch for Vacuum
- Vacuum Destructive Valve
-
Combination of supply valve and release valve
- Supply valve (N.C.) / release valve (N.C.)
- Supply valve (double solenoid) / release valve (N.C.)
-
Electrical entry
- L-type plug connector type
- M-type plug connector type
-
Light/surge voltage suppressor
- With light/surge voltage suppressor
- With surge voltage suppressor
-
Manual
- Locking slotted type
- Non-locking push type
-
Output specifications
- NPN open collector 1 output
- PNP open collector 1 output
- PNP open collector 2 outputs
- N/A
-
Unit specifications
- N/A
- SI unit fixed
- With unit selection function
-
Lead wire specifications
- Lead wire length 0.3 m
- No connector
- Without lead wire
-
Vacuum switch type
- Vacuum pressure switch (ZSE2) + filter
- Digital pressure switch for vacuum (ZSE30A) + filter
- Filter
-
Vacuum switch electrical entry
- Lead wire with connector (length 0.6 m)
- Lead wire with connector (length: 2 m)
- Lead wire with connector (length 3 m)
- N/A
- Without lead wire with connector
-
Vacuum break flow adjusting needle
- Lock nut
- No
-
Type
- ZR100-K1
- ZR100-K2
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 26 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
