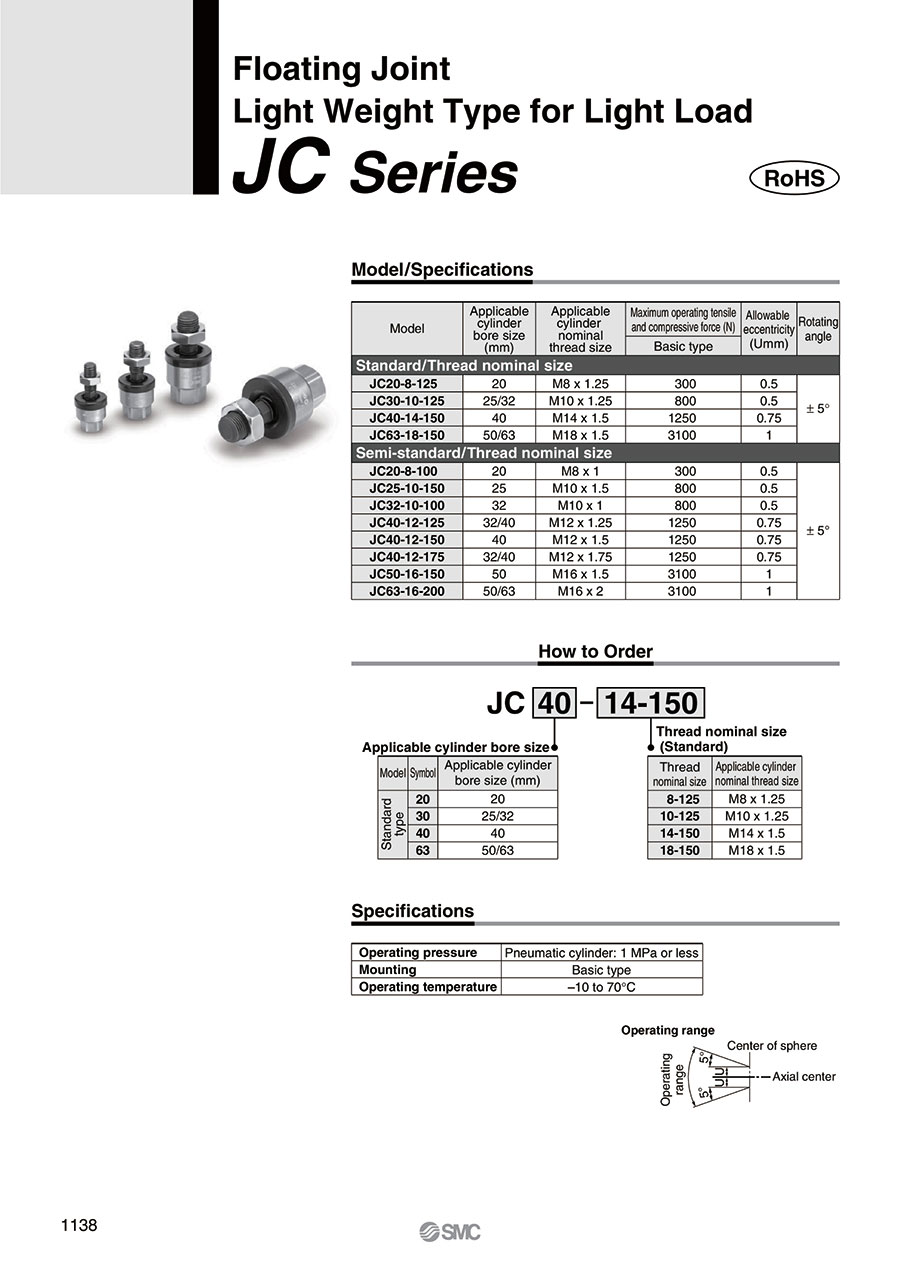

JC, Floating Joint, Standard, Light Weight Type

JC, Floating Joint, Standard, Light Weight Type

Caution

  • Product images may be representative images. Refer to the catalog for details.

Part number:

Still undefined. 12 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    JC20-8-100
    JC20-8-125
    JC25-10-150
    JC30-10-125
    JC32-10-100
    JC40-12-125
    JC40-12-150
    JC40-12-175
    JC40-14-150
    JC50-16-150
    JC63-16-200
    JC63-18-150

    Max. Operating Pull Force

    (kN)

    Allowable Misalignment U

    (mm)

    Applicable cylinder bore size

    (ø)

    Applicable cylinder nominal thread

    		Minimum order quantity
    0.3
    0.5
    20
    M8 × 1
    1 pieces
    0.3
    0.5
    20
    M8 × 1.25
    1 pieces
    0.8
    0.5
    25
    M10 × 1.5
    1 pieces
    0.8
    0.5
    25/32
    M10 × 1.25
    1 pieces
    0.8
    0.5
    32
    M10 × 1
    1 pieces
    1.25
    0.75
    32/40
    M12 × 1.25
    1 pieces
    1.25
    0.75
    40
    M12 × 1.5
    1 pieces
    1.25
    0.75
    32/40
    M12 × 1.75
    1 pieces
    1.25
    0.75
    40
    M14 × 1.5
    1 pieces
    3.1
    1
    50
    M16 × 1.5
    1 pieces
    3.1
    1
    50/63
    M16 × 2
    1 pieces
    3.1
    1
    50/63
    M18 × 1.5
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    26.76 €
    ( 31.84 € )
    26 working days
    26.76 €
    ( 31.84 € )
    4 working days
    27.87 €
    ( 33.17 € )
    26 working days
    27.87 €
    ( 33.17 € )
    4 working days
    27.87 €
    ( 33.17 € )
    26 working days
    35.69 €
    ( 42.47 € )
    26 working days
    35.69 €
    ( 42.47 € )
    26 working days
    35.69 €
    ( 42.47 € )
    26 working days
    36.81 €
    ( 43.80 € )
    4 working days
    50.18 €
    ( 59.71 € )
    4 working days
    50.18 €
    ( 59.71 € )
    26 working days
    51.31 €
    ( 61.06 € )
    4 working days
  • 1

    • More Information

    Basic information

    [Features]
    · Use of a lightweight aluminum case has reduced the weight by 30% (compared to JA40)
    · Quality suitable for air cylinders
    · Absorbs any misalignment between the workpiece and the cylinder
    · Mounting is interchangeable with the current JA series
