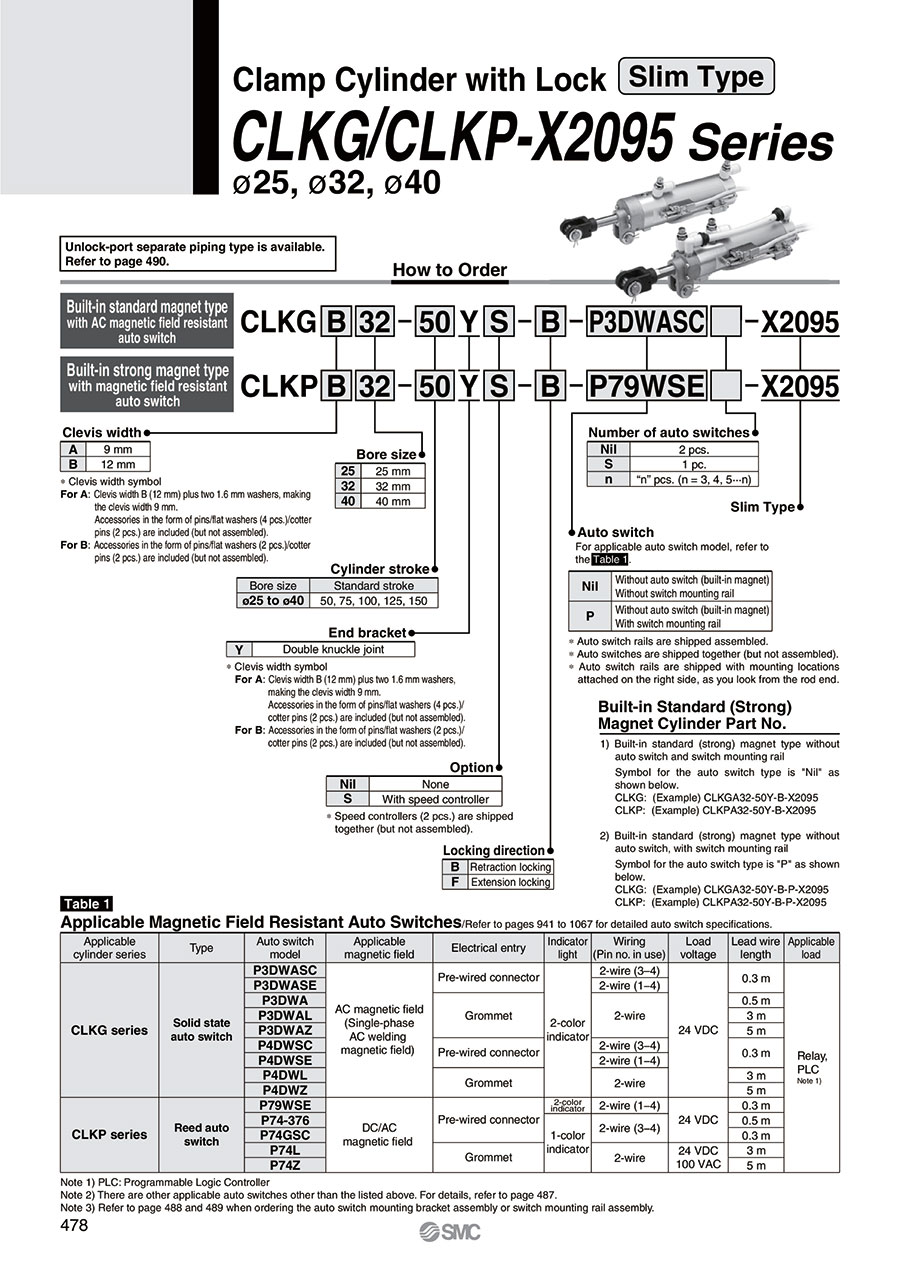

Slim Style Clamp Cylinder With Lock CLKG-X2095, CLKP-X2095 (Built-In Standard / Strong Magnet Type)
[Features]
· Compact auto switch (D-P3DWA).
· Magnetic-field-resistant 2-color indication solid state auto switch.
· Setting part no. for the model with speed controller reduces hassle of selecting and ordering.
· CLKG: built-in standard magnet type / D-P3DWA, D-P4DW.
· CLKP: built-in strong magnet type / D-P7.
· End bracket: double knuckle joint.
(i)Remark
- See the catalog for specification details.
- Product images may be representative images. Refer to the manufacturer's catalog for shape details.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Cylinder Diameter (Ø) | Stroke (mm) | Body options | Clamping Force (kN) | Auto Switch | Specifications | Clevis width (mm) | Locking direction | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
362.03 € | 1 | 26 Days | 32 | 75 | No (Standard) | 0.402 | Without auto switch (built-in magnet) / with auto switch mounting rail | Built-in standard magnet type | 9 | Retraction locking | ||
378.06 € | 1 | 26 Days | 40 | 50 | No (Standard) | 0.63 | Without auto switch (built-in magnet) / with auto switch mounting rail | Built-in standard magnet type | 9 | Retraction locking | ||
392.32 € | 1 | 26 Days | 40 | 50 | No (Standard) | 0.63 | Without auto switch (built-in magnet) / with auto switch mounting rail | Built-in standard magnet type | 9 | Extension locking | ||
229.56 € | 1 | 26 Days | 32 | 75 | No (Standard) | 0.402 | Without auto switch (built-in magnet) / without auto switch mounting rail | Built-in standard magnet type | 12 | Extension locking | ||
390.45 € | 1 | 26 Days | 32 | 75 | Speed Controller | 0.402 | Without auto switch (built-in magnet) / without auto switch mounting rail | Built-in standard magnet type | 12 | Retraction locking | ||
401.85 € | 1 | 26 Days | 32 | 75 | Speed Controller | 0.402 | Without auto switch (built-in magnet) / without auto switch mounting rail | Built-in standard magnet type | 12 | Extension locking | ||
400.76 € | 1 | 26 Days | 32 | 150 | Speed Controller | 0.402 | Without auto switch (built-in magnet) / without auto switch mounting rail | Built-in standard magnet type | 12 | Retraction locking | ||
378.06 € | 1 | 26 Days | 40 | 50 | No (Standard) | 0.63 | Without auto switch (built-in magnet) / with auto switch mounting rail | Built-in standard magnet type | 12 | Retraction locking | ||
380.34 € | 1 | 26 Days | 40 | 50 | No (Standard) | 0.63 | Without auto switch (built-in magnet) / without auto switch mounting rail | Built-in standard magnet type | 12 | Extension locking | ||
382.65 € | 1 | 26 Days | 40 | 75 | No (Standard) | 0.63 | Without auto switch (built-in magnet) / with auto switch mounting rail | Built-in standard magnet type | 12 | Retraction locking | ||
400.94 € | 1 | 26 Days | 40 | 100 | No (Standard) | 0.63 | Without auto switch (built-in magnet) / with auto switch mounting rail | Built-in standard magnet type | 12 | Extension locking | ||
390.24 € | 1 | 26 Days | 32 | 50 | No (Standard) | 0.402 | Without auto switch (built-in magnet) / without auto switch mounting rail | Built-in strong magnet type | 12 | Retraction locking | ||
405.15 € | 1 | 26 Days | 32 | 75 | No (Standard) | 0.402 | Without auto switch (built-in magnet) / with auto switch mounting rail | Built-in strong magnet type | 12 | Retraction locking | ||
412.05 € | 1 | 26 Days | 32 | 125 | No (Standard) | 0.402 | Without auto switch (built-in magnet) / with auto switch mounting rail | Built-in strong magnet type | 12 | Retraction locking |
Loading...
Basic information
| Operation Method | Straight Advancing Stroke | Rod Tip Shape | Clevis shape | Support Type | Clevis |
|---|---|---|---|---|---|
| Rod Motion | Double Acting Piece Rod | Max. Pressure(MPa) | 1 | Operating Temperature Range(℃) | -10::60 |
| Lead Wire Length(m) | None | Number of Switches | None | Tip fitting | U-Shaped Knuckle Joint |
Configure
Basic Attributes
-
Cylinder Diameter(Ø)
-
Stroke(mm)
-
Body options
- No (Standard)
- Speed Controller
-
Clamping Force(kN)
-
Auto Switch
-
Specifications
- Built-in standard magnet type
- Built-in strong magnet type
-
Clevis width(mm)
- 9
- 12
-
Locking direction
- Extension locking
- Retraction locking
-
Type
- CLKGA□□
- CLKGB□□
- CLKPB□□
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 26 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
