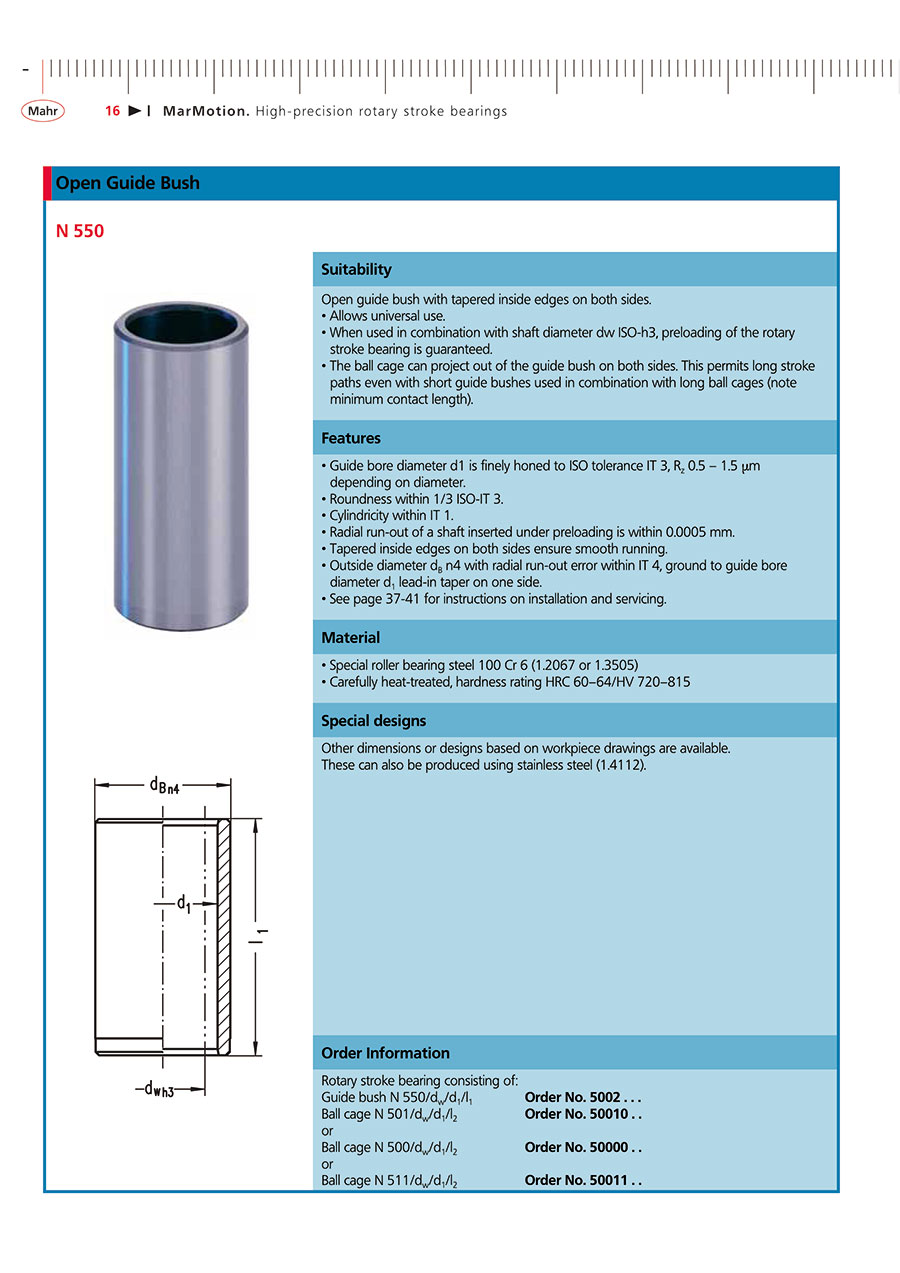

Open Guide Bush N 550

Product Information

Suitability

Open guide bush with tapered inside edges on both sides.
• Allows universal use.
• When used in combination with shaft diameter d_w ISO-h3, preloading of the rotary stroke bearing is guaranteed.
• The ball cage can project out of the guide bush on both sides. This permits long stroke paths even with short guide bushes used in combination with long ball cages (note minimum contact length).

Features

• Guide bore diameter d₁ is finely honed to ISO tolerance IT 3, R_z 0.5 – 1.5 μm depending on diameter.
• Roundness within 1/3 ISO-IT 3.
• Cylindricity within IT 1.
• Radial run-out of a shaft inserted under preloading is within 0.0005 mm.
• Tapered inside edges on both sides ensure smooth running.
• Outside diameter d_B n4 with radial run-out error within IT 4, ground to guide bore diameter d₁ lead-in taper on one side.
• See page 37-41 for instructions on installation and servicing.

Material

• Special roller bearing steel 100 Cr 6 (1.2067 or 1.3505)
• Carefully heat-treated, hardness rating HRC 60–64/HV 720–815

Special designs

Other dimensions or designs based on workpiece drawings are available.
These can also be produced using stainless steel (1.4112).

Order Information

Rotary stroke bearing consisting of:

Guide bush N 550/d_w/d₁/l₁		Order No. 5002 . . .
Ball cage N 501/d_w/d₁/l₂		Order No. 50010 . .
or
Ball cage N 500/d_w/d₁/l₂		Order No. 50000 . .
or
Ball cage N 511/d_w/d₁/l₂		Order No. 50011 . .

Drawing

Specifications

d_w	d₁	d_B	l₁	Order No.
4	7	10	12	5002002
			20	5002003
			30	5002068
6	10	14	16	5002004
			25	5002005
			40	5002071
			60	5002072
8	13	18	20	5002006
			30	5002007
			40	5002073
			65	5002074
10	15	20	25	5002008
			36	5002009
			50	5002075
			70	5002076
12	17	22	25	5002010
			36	5002011
			50	5002077
			75	5002078
14	20	25	33	5002012
			45	5002013
15	21	25	33	5002014
			45	5002015
16	22	28	25	5002016
			33	5002017
			45	5002018
			60	5002019
			92	5002081
18	24	30	42	5002082
			56	5002083
18	24	32	33	5002020
			56	5002021
			64	5002022
19	25	32	33	5002023
			56	5002024
			64	5002025
20	26	32	33	5002026
			42	5002027
			56	5002028
			64	5002029
			112	5002088
24	30	38	45	5002030
			63	5002031
			70	5002032
			79	5002033
25	31	38	45	5002034
			63	5002035
			70	5002036
			79	5002037
			132	5002089
30	38	48	50	5002038
			75	5002039
			90	5002040
32	40	48	50	5002041
			63	5002042
			75	5002043
			90	5002044
			145	5002090
40	48	60	63	5002045
			80	5002046
			90	5002047
			96	5002048
			120	5002049
			172	5002091
42	50	60	80	5002051
			96	5002053
50	60	72	80	5002054
			100	5002055
52	62	72	80	5002057
			100	5002058
63	73	90	125	5002060
80	92	120	140	5002062
100	112	140	160	5002063

Open Guide Bush N 550 Mini Range

Product Information

Suitability

Open guide bush with tapered inside edges on both sides for use with Mini Range ball cage N 502.
• Minimal installation space when used with Mini Range ball cages N 502.
• Allows universal use.
• When used in combination with shaft diameter d_w ISO-h3, preloading of the rotary stroke bearing is guaranteed.
• The ball cage can project out of the guide bush on both sides to permit longer stroke paths (note minimum contact length).

Features

• Guide bore diameter d₁ is finely honed to ISO tolerance IT 3, R_z 0.5 – 1.5 μm depending on diameter.
• Roundness within 1/3 ISO-IT 3.
• Cylindricity within IT 1.
• Radial run-out of a shaft inserted under preloading is within 0.0005 mm.
• Tapered inside edges on both sides ensure smooth running.
• Outside diameter d_B n4 with radial run-out error within IT 4, ground to guide bore diameter d1, lead-in taper on one side.
• See page 37-41 for instructions on installation and servicing.

Material

• Special roller bearing steel 100 Cr 6 (1.2067 or 1.3505)
• Carefully heat-treated, hardness rating HRC 60–64/HV 720–815

Special designs

Other dimensions or designs based on workpiece drawings are available.
These can also be produced using stainless steel (1.4112).

Order Information

Rotary stroke bearing consisting of:

Guide bush N 550/d_w/d₁/l₁		Order No. 5002 . . .
Ball cage N 502/d_w/d₁/l₂		Order No. 50002 . .

Drawing

Specifications

d_w	d₁	d_B	l₁	Order No.
2.5	4.1	6	10	5002092
			12.5	5002093
			15	5002094
3	5	7	12.5	5002064
			15	5002079
			20	5002065
4	6	8	15	5002066
			25	5002067
5	7	10	12	5002002
			20	5002003
			30	5002068
6	8	11	12	5002080
			20	5002069
			35	5002070
8	10	14	16	5002004
			25	5002005
			40	5002071
			60	5002072
10	13	18	20	5002006
			30	5002007
			40	5002073
			65	5002074
12	15	20	25	5002008
			36	5002009
			50	5002075
			70	5002076
14	17	22	25	5002010
			36	5002011
			50	5002077
			75	5002078
16	20	25	33	5002012
			45	5002013
18	22	28	25	5002016
			33	5002017
			45	5002018
			60	5002019
			92	5002081
20	24	30	42	5002082
			56	5002083
22	26	32	33	5002026
			42	5002027
			56	5002028
			64	5002029
			112	5002088
