Tamper Proof Dual Speed Controller With One-Touch Fitting, ASD□□□F-T Series
[Features]
· With one-touch fitting.
· Prevents unintentional manual operation.
· RoHS compliant.
· Fluid: air.
· Proof pressure: 1.5 MPa.
· Maximum operating pressure: 1 MPa.
· Minimum operating pressure: 0.1 MPa.
· Ambient and fluid temperature: -5 to +60°C (no freezing).
(i)Remark
- ■ SMC Product Line
Webpages for products currently without individual pages on this site will be released on an ad-hoc basis.
Click here for a quotation or to make an order if you have a model number.
■ Products Planned for Online Release
Air cylinder-related product pages will be released on this site on an ad-hoc basis.
CQ2, MG types, etc., are already available. Click here to check.
*Vacuum equipment, FRLs, solenoid valves, etc., will also be released on dedicated pages on this site on an ad-hoc basis.

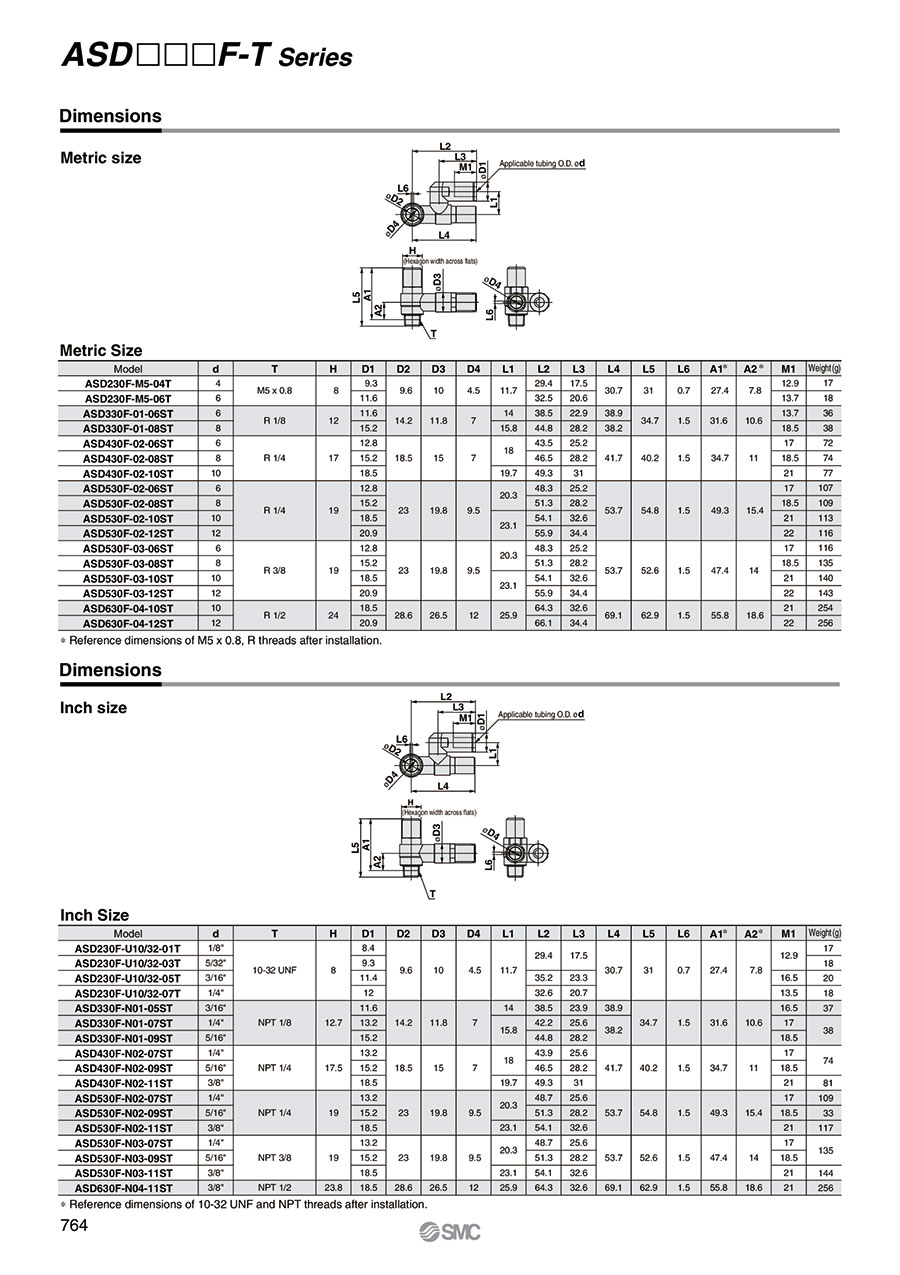

*The information above is correct as of December 2018. - See catalog for specification details.
- Product images may be representative images. Refer to the manufacturer's catalog for shape details.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Max. Flow (l/min) | Connection Dia. | Option | Types of Screw | Applicable Tube O.D. mm (mm) | Body Size | |
|---|---|---|---|---|---|---|---|---|---|---|
16.69 € | 1 | 26 Days | 75 | 5 × 0.8 | No seal | M | 4 | M5 standard | ||
16.69 € | 1 | 26 Days | 75 | 5 × 0.8 | No seal | M | 6 | M5 standard | ||
22.10 € | 1 | 26 Days | 175 | 1/8 | With seal | R | 6 | 1/8 standard | ||
23.39 € | 1 | 26 Days | 175 | 1/8 | With seal | R | 8 | 1/8 standard | ||
24.77 € | 1 | 26 Days | 500 | 1/4 | With seal | R | 6 | 1/4 standard | ||
28.13 € | 1 | 26 Days | 350 | 1/4 | With seal | R | 8 | 1/4 standard | ||
28.13 € | 1 | 26 Days | 350 | 1/4 | With seal | R | 10 | 1/4 standard | ||
30.89 € | 1 | 26 Days | 600 | 1/4 | With seal | R | 8 | 3/8 standard | ||
30.89 € | 1 | 26 Days | 700 | 1/4 | With seal | R | 10 | 3/8 standard | ||
31.53 € | 1 | 26 Days | 500 | 3/8 | With seal | R | 6 | 3/8 standard | ||
31.53 € | 1 | 26 Days | 600 | 3/8 | With seal | R | 8 | 3/8 standard | ||
31.53 € | 1 | 26 Days | 700 | 3/8 | With seal | R | 10 | 3/8 standard | ||
33.81 € | 1 | 26 Days | 700 | 3/8 | With seal | R | 12 | 3/8 standard | ||
44.35 € | 1 | 26 Days | 1,200 | 1/2 | With seal | R | 10 | 1/2 standard | ||
44.35 € | 1 | 26 Days | 1,300 | 1/2 | With seal | R | 12 | 1/2 standard |
Loading...
Basic information
| Type | Speed Controller | Main Body Shape | Dual | Control Direction | Meter Out / In |
|---|---|---|---|---|---|
| Joint Type | Male thread + One-Touch Couplings | Main Body Material | PBT / Brass + Electroless Nickel Plating | Usage Environment/Application | Standard |
| Thread Material | Stainless Steel (EN 1.4305 Equiv.) | Knob Type | Tamper-Proof | Lock Nut Type | Hexagon Shape Lock Nut |
| Operating Temperature Range(℃) | -5::60 | Operating Pressure Range(MPa) | 0.1::1.0 | Made-to-order specifications | None |
Configure
Basic Attributes
-
Connection Dia.
- 1/2
- 1/4
- 1/8
- 3/8
- 5 × 0.8
-
Option
- No seal
- With seal
-
Types of Screw
-
Applicable Tube O.D. mm(mm)
- 4
- 6
- 8
- 10
- 12
-
Body Size
-
Type
- ASD230F
- ASD330F
- ASD430F
- ASD530F
- ASD630F
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 26 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
