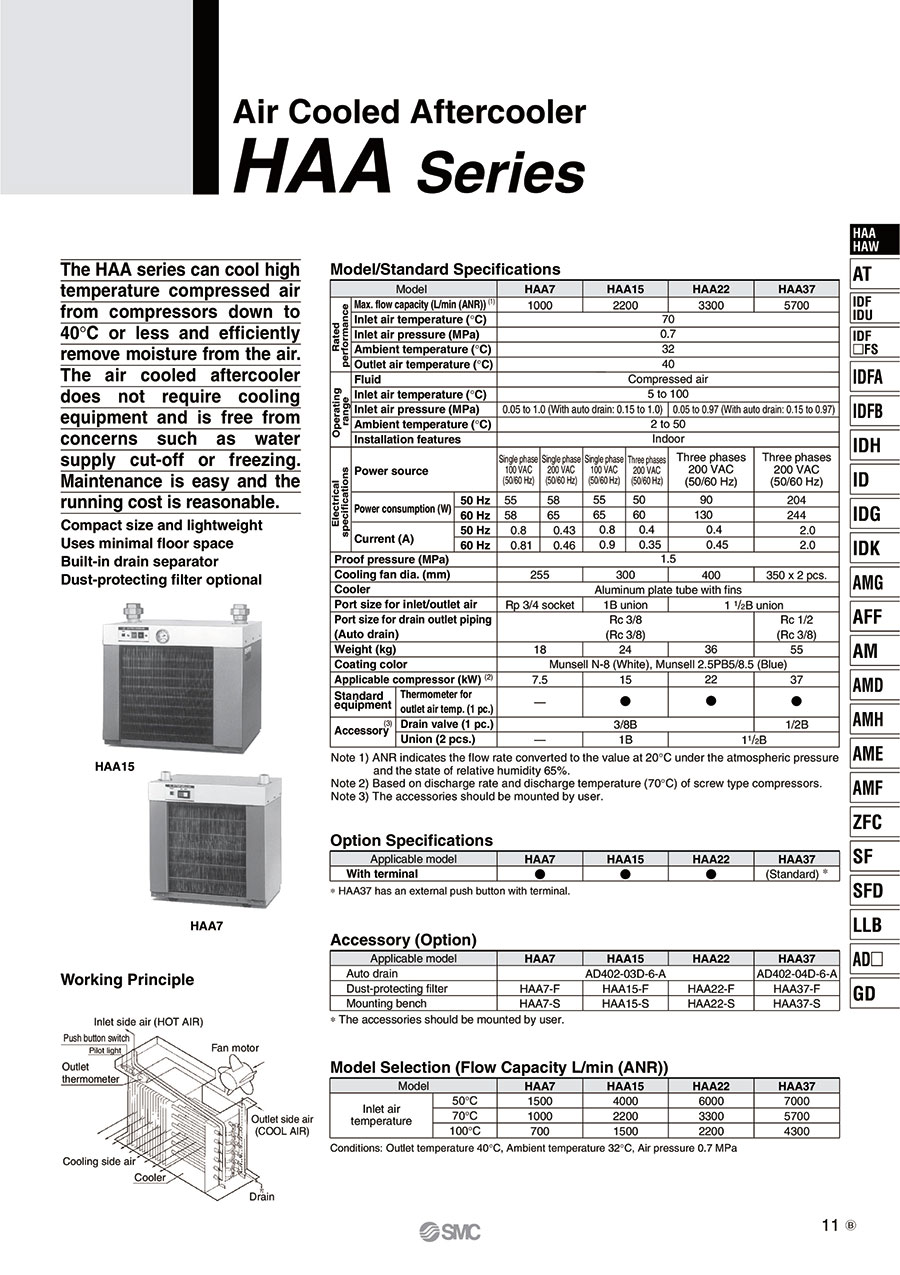

Air Cooled Aftercooler HAA Series
[Features]
· Cools high temperature compressed air from a compressor down to 40°C or less and removes moisture from the air.
· Compact size and light weight.
· Uses minimal floor space.
· Built-in drain separator.
· Dust-protecting filter optional.
(i)Remark
- ■ SMC Product Line
Webpages for products currently without individual pages on this site will be released on an ad-hoc basis.
■ Products Planned for Online Release
Air cylinder-related product pages will be released on this site on an ad-hoc basis.
CQ2/MG types, etc., are already available.
*Vacuum equipment, FRLs, solenoid valves, etc., will also be released on dedicated pages on this site on an ad-hoc basis.
*The information above is correct as of December 2018. - See catalog for specification details.
- Product images may be representative images. Refer to the manufacturer's catalog for shape details.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| HAA7-062DF-T |
| HAA15-103D-T |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Air compressor size (screw type) (KW) | Piping connection port diameter | Power supply voltage (V) | Filter for dust intrusion prevention | |
|---|---|---|---|---|---|---|---|---|
2,113.99 € | 1 | 26 Days | 7.5 | Rp3/4 | Single-phase 200 | With dust-protecting filter | ||
2,936.30 € | 1 | 68 Days | 15 | 1B | Three-phase 200 | None |
Loading...
Basic information
| Type | After Cooler | Auto drain | With auto drain | Frame | None |
|---|---|---|---|---|---|
| Terminal | With terminal |
Configure
Basic Attributes
-
Air compressor size (screw type)(KW)
- 7.5
- 15
-
Piping connection port diameter
- 1B
- Rp3/4
-
Power supply voltage(V)
- Single-phase 200
- Three-phase 200
-
Filter for dust intrusion prevention
- None
- With dust-protecting filter
-
Type
- HAA15
- HAA7
Filter by standard shipping days
-
- All
- 26 Days or Less
- 68 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
