Configure

Thread Nominal M
Shaft Diameter d1(mm)
- 0.875
- 1.375
- 1.625
- 1.875
- 2.375
- 2.625
- 2.875
- 3.125
- 3.375
- 3.625
- 3.875
- 4.375
- 4.875
- 5.375
- 5.875
- 6.375
- 6.625
- 7.125
Shaft Diameter d1(inch)
Bearing Inner Diameter d(mm)
- 30
- 40
- 45
- 50
- 55
- 65
- 75
- 85
- 90
- 95
- 100
- 110
- 120
- 140
- 150
- 170
- 180
- 190
- 200
Length l(mm)
- 27
- 31
- 35
- 36
- 37
- 38
- 39
- 40
- 42
- 43
- 45
- 46
- 50
- 52
- 55
- 58
- 59
- 63
- 65
- 68
- 71
- 72
- 73
- 76
- 77
- 81
- 82
- 86
- 87
- 88
- 90
- 97
- 101
- 105
- 109
- 111
- 112
- 120
- 122
- 131
- 139
- 141
- 150
- 154
- 161
- 169
- 176
Lock Nut Oouter Diameter Dm(mm)
- 45
- 58
- 70
- 75
- 85
- 98
- 110
- 120
- 125
- 130
- 145
- 155
- 165
- 180
- 195
- 200
- 210
- 220
- 230
- 240
- 250
Mass(kg)
- 0.105
- 0.115
- 0.137
- 0.145
- 0.155
- 0.165
- 0.188
- 0.2
- 0.223
- 0.295
- 0.325
- 0.335
- 0.345
- 0.35
- 0.366
- 0.391
- 0.4
- 0.414
- 0.436
- 0.455
- 0.485
- 0.521
- 0.575
- 0.684
- 0.75
- 0.857
- 1.02
- 1.083
- 1.15
- 1.153
- 1.215
- 1.271
- 1.326
- 1.4
- 1.438
- 1.445
- 1.49
- 1.512
- 1.69
- 1.8
- 1.837
- 1.838
- 1.92
- 1.93
- 1.97
- 1.978
- 2.093
- 2.113
- 2.15
- 2.188
- 2.2
- 2.25
- 2.27
- 2.68
- 2.7
- 2.96
- 3.16
- 3.19
- 3.238
- 3.312
- 3.725
- 3.89
- 4
- 4.165
- 4.21
- 4.512
- 4.8
- 4.835
- 5.165
- 5.2
- 5.8
- 5.99
- 6.83
- 6.956
- 7.075
- 7.45
- 7.911
- 7.963
- 8
- 8.935
- 9.19
- 9.4
- 9.5
- 10.2
- 11.3
- 12.6
- 13.264
- 13.9
Lock Nut + Locking Device
Assembly Tool - Hook Spanner
- HN 6
- HN 8
- HN 9
- HN 10
- HN 11
- HN 13
- HN 15
- HN 17
- HN 18
- HN 19
- HN 20
- HN 22
- HN 24
- HN 26
- HN 28
- HN 30
- HN 31
- HN 32-HN 33
- HN 34
- HN 36
- HN 38
- HN 40
Assembly Tool - Hydraulic Nut
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 21 working days

BGL

Adapter Sleeves - Series HS

Catalog

Part number:

Still undefined. 90 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Thread Nominal M

Shaft Diameter d1

(mm)

Shaft Diameter d1

(inch)

Bearing Inner Diameter d

(mm)

Length l

(mm)

Lock Nut Oouter Diameter Dm

(mm)

Mass

(kg)

Lock Nut + Locking Device

Assembly Tool - Hook Spanner

Assembly Tool - Hydraulic Nut

Minimum order quantity

M 30x1,5	0.875	7/8"	30	27	45	0.105	BGL KM 6 + BGL MB 6	HN 6	N/A	1 pieces
M 40x1,5	1.375	1.3/8"	40	31	85	0.155	BGL KM 8 + BGL MB 8	HN 8	N/A	1 pieces
M 50x1,5	1.625	1.5/8"	50	35	145	0.295	BGL KM 10 + BGL MB 10	HN 10	HMV 10E	1 pieces
M 55x1,5	1.875	1.7/8"	55	37	75	0.325	BGL KM 11x1.5 + BGL MB 11	HN 11	HMV 11x1.5E	1 pieces
M 65x1,5	2.375	2.3/8"	65	40	120	0.345	BGL KM 13x1.5 + BGL MB 13	HN 13	HMV 13x1.5E	1 pieces
M 75x2	2.625	2.5/8"	75	43	58	0.575	BGL KM 15 + BGL MB 15	HN 15	HMV 15E	1 pieces
M 85x2	2.875	2.7/8"	85	50	98	1.02	BGL KM 17 + BGL MB 17	HN 17	HMV 17E	1 pieces
M 90x2	3.125	3.1/8"	90	52	130	1.083	BGL KM 18 + BGL MB 18	HN 18	HMV 18E	1 pieces
M 95x2	3.375	3.3/8"	95	55	195	1.153	BGL KM 19 + BGL MB 19	HN 19	HMV 19E	1 pieces
M 100x2	3.625	3.5/8"	100	58	250	1.49	BGL KM 20 + BGL MB 20	HN 20	HMV 20E	1 pieces
M 110x2	3.875	3.7/8"	110	63	240	1.837	BGL KM 22 + BGL MB 22	HN 22	HMV 22E	1 pieces
M 30x1,5	0.875	7/8"	30	38	75	0.145	BGL KM 6 + BGL MB 6	HN 6	N/A	1 pieces
M 40x1,5	1.375	1.3/8"	40	46	120	0.2	BGL KM 8 + BGL MB 8	HN 8	N/A	1 pieces
M 40x1,5	1.375	1.3/8"	40	46	125	0.223	BGL KMFE 8	HN 8	N/A	1 pieces
M 50x1,5	1.625	1.5/8"	50	55	70	0.414	BGL KM 10 + BGL MB 10	HN 10	HMV 10E	1 pieces
M 55x1,5	1.875	1.7/8"	55	59	110	0.455	BGL KM 11x1.5 + BGL MB 11	HN 11	HMV 11x1.5E	1 pieces
M 65x1,5	2.375	2.3/8"	65	65	145	0.485	BGL KM 13x1.5 + BGL MB 13	HN 13	HMV 13x1.5E	1 pieces
M 65x1,5	2.375	2.3/8"	65	50	45	0.521	BGL KMFE 13x1.5	HN 13	HMV 13x1.5E	1 pieces
M 75x2	2.625	2.5/8"	75	73	85	0.857	BGL KM 15 + BGL MB 15	HN 15	HMV 15E	1 pieces
M 85x2	2.875	2.7/8"	85	82	125	1.445	BGL KM 17 + BGL MB 17	HN 17	HMV 17E	1 pieces
M 90x2	3.125	3.1/8"	90	86	180	1.69	BGL KM 18 + BGL MB 18	HN 18	HMV 18E	1 pieces
M 95x2	3.375	3.3/8"	95	90	240	1.92	BGL KM 19 + BGL MB 19	HN 19	HMV 19E	1 pieces
M 100x2	3.625	3.5/8"	100	97	210	2.15	BGL KM 20 + BGL MB 20	HN 20	HMV 20E	1 pieces
M 100x2	3.625	3.5/8"	100	71	220	2.188	BGL KMFE 20	HN 20	HMV 20E	1 pieces
M 110x2	3.875	3.7/8"	110	105	195	2.68	BGL KM 22 + BGL MB 22	HN 22	HMV 22E	1 pieces
M 110x2	3.875	3.7/8"	110	77	220	2.7	BGL KMFE 22	HN 22	HMV 22E	1 pieces
M 120x2	4.375	4.3/8"	120	112	145	3.19	BGL KM 24 + BGL MB 24	HN 24	HMV 24E	1 pieces
M 120x2	4.375	4.3/8"	120	72	165	3.238	BGL KMFE 24	HN 24	HMV 24E	1 pieces
M 120x2	4.375	4.3/8"	120	72	180	2.96	BGL KML 24 + BGL MBL 24	HN 22	HMV 24E	1 pieces
M 140x2	4.875	4.7/8"	140	131	130	5.2	BGL KM 28 + BGL MB 28	HN 28	HMV 28E	1 pieces
M 140x2	4.875	4.7/8"	140	97	145	4.512	BGL KML 28 + BGL MBL 28	HN 26	HMV 28E	1 pieces
M 150x2	5.375	5.3/8"	150	139	240	5.8	BGL KM 30 + BGL MB 30	HN 30	HMV 30E	1 pieces
M 150x2	5.375	5.3/8"	150	111	250	5.165	BGL KML 30 + BGL MBL 30	HN 28	HMV 30E	1 pieces
M 170x3	5.875	5.7/8"	170	154	180	9.4	BGL KM 34 + BGL MB 34	HN 34	HMV 34E	1 pieces
M 180x3	6.375	6.3/8"	180	161	240	11.3	BGL KM 36 + BGL MB 36	HN 36	HMV 36E	1 pieces
M 190x3	6.625	6.5/8"	190	169	220	12.6	BGL KM 38 + BGL MB 38	HN 38	HMV 38E	1 pieces
M 200x3	7.125	7.1/8"	200	176	240	13.9	BGL KM 40 + BGL MB 40	HN 40	HMV 40E	1 pieces
M 200x3	7.125	7.1/8"	200	150	250	13.264	BGL KML 40 + BGL MBL 40	HN 38	HMV 40E	1 pieces
M 120x2	4.375	4.3/8"	120	72	230	1.93	BGL KML 24 + BGL MBL 24	HN 22	HMV 24E	1 pieces
M 120x2	4.375	4.3/8"	120	72	240	1.978	BGL KMFE 24	HN 24	HMV 24E	1 pieces
M 140x2	4.875	4.7/8"	140	82	200	3.16	BGL KML 28 + BGL MBL 28	HN 26	HMV 28E	1 pieces
M 140x2	4.875	4.7/8"	140	82	210	3.725	BGL KMFE 28	HN 28	HMV 28E	1 pieces
M 150x2	5.375	5.3/8"	150	87	155	3.89	BGL KML 30 + BGL MBL 30	HN 28	HMV 30E	1 pieces
M 150x2	5.375	5.3/8"	150	87	180	4.21	BGL KMFE 30	HN 30	HMV 30E	1 pieces
M 170x3	5.875	5.7/8"	170	101	220	5.99	BGL KML 34 + BGL MBL 34	HN 31	HMV 34E	1 pieces
M 170x3	5.875	5.7/8"	170	101	240	6.956	BGL KMFE 34	HN 31	HMV 34E	1 pieces
M 180x3	6.375	6.3/8"	180	109	195	6.83	BGL KML 36 + BGL MBL 36	HN 32-HN 33	HMV 36E	1 pieces
M 180x3	6.375	6.3/8"	180	109	220	7.963	BGL KMFE 36	HN 32-HN 33	HMV 36E	1 pieces
M 190x3	6.625	6.5/8"	190	112	250	7.45	BGL KML 38 + BGL MBL 38	HN 34	HMV 38E	1 pieces
M 200x3	7.125	7.1/8"	200	120	230	9.19	BGL KML 40 + BGL MBL 40	HN 38	HMV 40E	1 pieces
M 30x1,5	0.875	7/8"	30	31	58	0.115	BGL KM 6 + BGL MB 6	HN 6	N/A	1 pieces
M 30x1,5	0.875	7/8"	30	31	70	0.137	BGL KMFE 6	HN 6	N/A	1 pieces
M 40x1,5	1.375	1.3/8"	40	36	98	0.165	BGL KM 8 + BGL MB 8	HN 8	N/A	1 pieces
M 40x1,5	1.375	1.3/8"	40	36	110	0.188	BGL KMFE 8	HN 8	N/A	1 pieces
M 45x1,5	1.375	1.3/8"	45	39	130	0.165	BGL KM 9 + BGL MB 9	HN 9	N/A	1 pieces
M 50x1,5	1.625	1.5/8"	50	42	45	0.335	BGL KM 10 + BGL MB 10	HN 10	HMV 10E	1 pieces
M 50x1,5	1.625	1.5/8"	50	42	58	0.35	BGL KMFE 10	HN 10	HMV 10E	1 pieces
M 55x1,5	1.875	1.7/8"	55	45	85	0.366	BGL KM 11x1.5 + BGL MB 11	HN 11	HMV 11x1.5E	1 pieces
M 55x1,5	1.875	1.7/8"	55	45	98	0.391	BGL KMFE 11x1.5	HN 11	HMV 11x1.5E	1 pieces
M 100x2	3.625	3.5/8"	100	76	180	1.8	BGL KM 20 + BGL MB 20	HN 20	HMV 20E	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

13.03 € ( 15.51 € )	21 working days
13.92 € ( 16.56 € )	21 working days
16.55 € ( 19.69 € )	21 working days
18.02 € ( 21.44 € )	21 working days
22.62 € ( 26.92 € )	21 working days
29.42 € ( 35.01 € )	21 working days
36.22 € ( 43.10 € )	21 working days
50.57 € ( 60.18 € )	21 working days
57.30 € ( 68.19 € )	21 working days
61.08 € ( 72.69 € )	21 working days
79.22 € ( 94.27 € )	21 working days
16.55 € ( 19.69 € )	21 working days
17.40 € ( 20.71 € )	21 working days
51.70 € ( 61.52 € )	21 working days
20.05 € ( 23.86 € )	21 working days
20.90 € ( 24.87 € )	21 working days
27.88 € ( 33.18 € )	21 working days
76.90 € ( 91.51 € )	21 working days
37.12 € ( 44.17 € )	21 working days
43.77 € ( 52.09 € )	21 working days
61.08 € ( 72.69 € )	21 working days
69.42 € ( 82.61 € )	21 working days
77.72 € ( 92.49 € )	21 working days
181.47 € ( 215.95 € )	21 working days
98.87 € ( 117.66 € )	21 working days
206.03 € ( 245.18 € )	21 working days
115.30 € ( 137.21 € )	21 working days
212.13 € ( 252.43 € )	21 working days
115.30 € ( 137.21 € )	21 working days
181.25 € ( 215.69 € )	21 working days
181.25 € ( 215.69 € )	21 working days
190.18 € ( 226.31 € )	21 working days
190.18 € ( 226.31 € )	21 working days
292.03 € ( 347.52 € )	21 working days
325.28 € ( 387.08 € )	21 working days
396.42 € ( 471.74 € )	21 working days
568.07 € ( 676.00 € )	21 working days
568.08 € ( 676.02 € )	21 working days
110.78 € ( 131.83 € )	21 working days
207.63 € ( 247.08 € )	21 working days
149.20 € ( 177.55 € )	21 working days
236.73 € ( 281.71 € )	21 working days
153.05 € ( 182.13 € )	21 working days
244.10 € ( 290.48 € )	21 working days
236.93 € ( 281.95 € )	21 working days
323.33 € ( 384.76 € )	21 working days
266.43 € ( 317.05 € )	21 working days
359.78 € ( 428.14 € )	21 working days
358.63 € ( 426.77 € )	21 working days
480.32 € ( 571.58 € )	21 working days
13.03 € ( 15.51 € )	21 working days
46.38 € ( 55.19 € )	21 working days
13.92 € ( 16.56 € )	21 working days
48.22 € ( 57.38 € )	21 working days
13.92 € ( 16.56 € )	21 working days
16.55 € ( 19.69 € )	21 working days
52.68 € ( 62.69 € )	21 working days
18.02 € ( 21.44 € )	21 working days
59.18 € ( 70.42 € )	21 working days
78.45 € ( 93.36 € )	21 working days

Basic information

Basic information

Adapter Sleeves are mainly supplied with Lock Nuts and Lock washers. They can be ordered in Metric, Inch or custom design.

Catalog

Products homepage

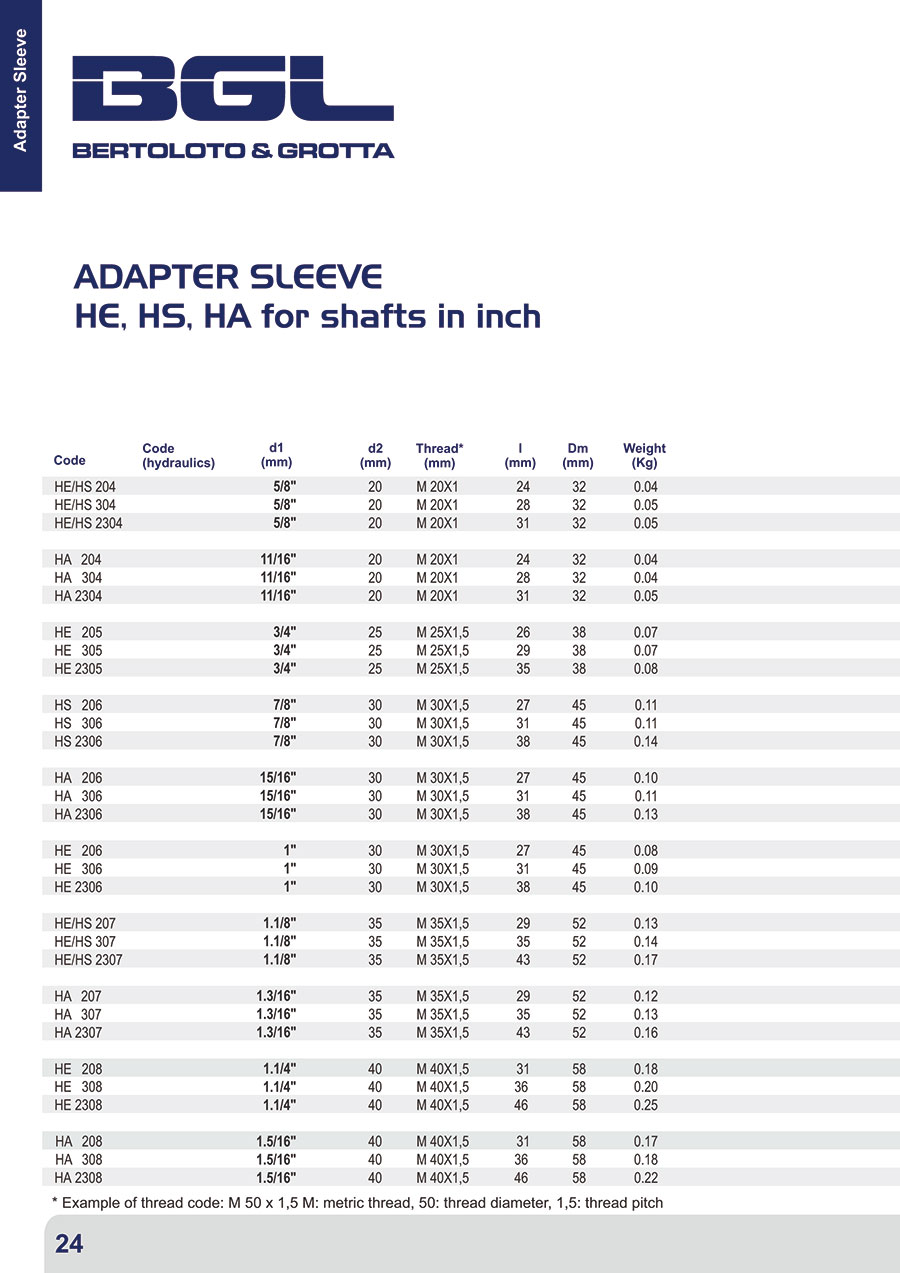

Catalog (2-page spread)
