SMC

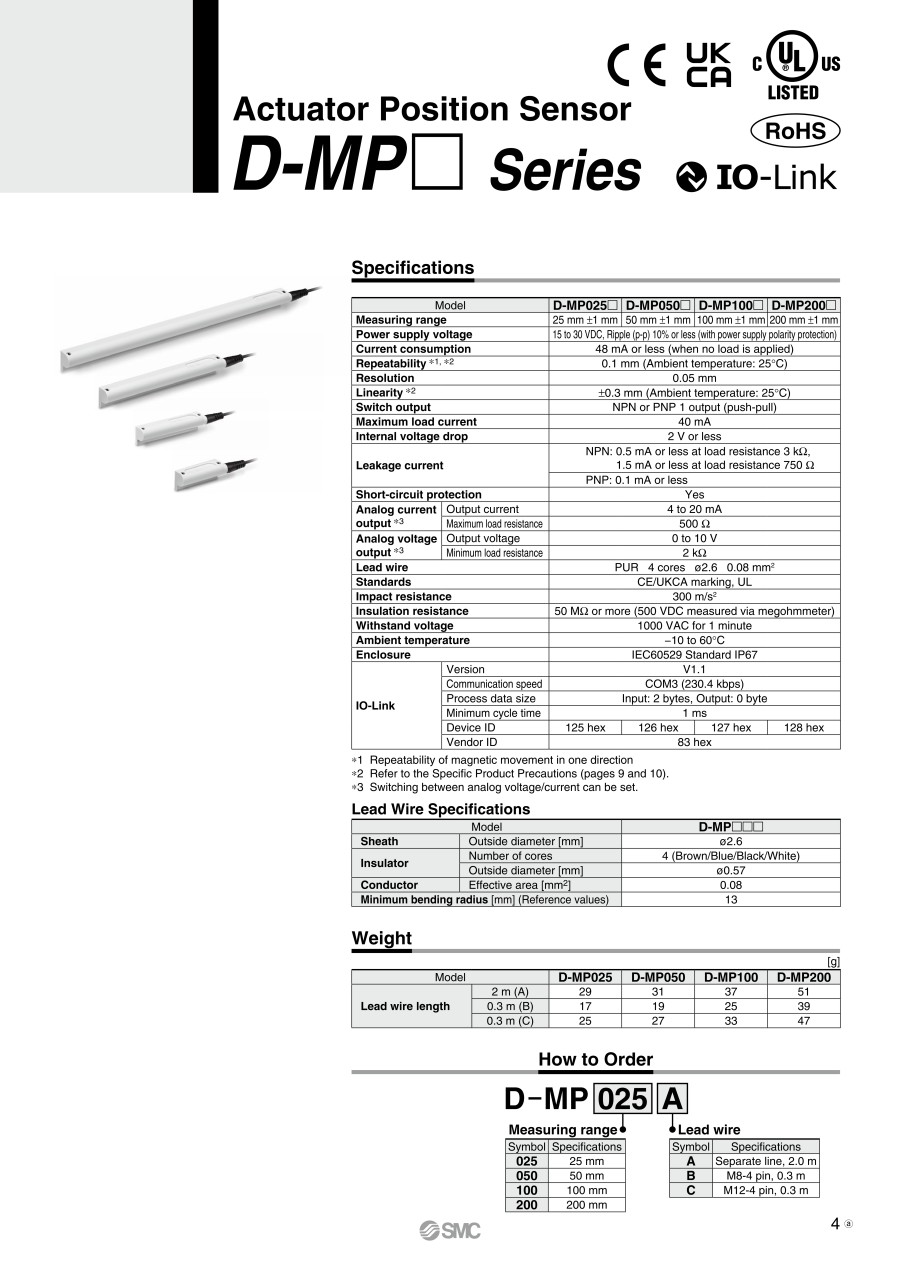

Actuator Position Sensor D-MP□ Series

Actuator Position Sensor D-MP□ Series

Caution

  • Product images may be representative only. Please see the manufacturer's catalog for shape details.

Part number:

Still undefined. 12 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    D-MP025A
    D-MP025B
    D-MP025C
    D-MP050A
    D-MP050B
    D-MP050C
    D-MP100A
    D-MP100B
    D-MP100C
    D-MP200A
    D-MP200B
    D-MP200C

    Electrical entry

    Lead wire length

    (m)

    Measurement range

    (mm)

    		Minimum order quantity
    Discrete Wire
    2.0
    25 ± 1
    1 pieces
    M8, 4 pin
    0.3
    25 ± 1
    1 pieces
    M12, 4 pin
    0.3
    25 ± 1
    1 pieces
    Discrete Wire
    2.0
    50 ± 1
    1 pieces
    M8, 4 pin
    0.3
    50 ± 1
    1 pieces
    M12, 4 pin
    0.3
    50 ± 1
    1 pieces
    Discrete Wire
    2.0
    100 ± 1
    1 pieces
    M8, 4 pin
    0.3
    100 ± 1
    1 pieces
    M12, 4 pin
    0.3
    100 ± 1
    1 pieces
    Discrete Wire
    2.0
    200 ± 1
    1 pieces
    M8, 4 pin
    0.3
    200 ± 1
    1 pieces
    M12, 4 pin
    0.3
    200 ± 1
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    201.47 €
    ( 239.75 € )
    39 working days
    203.69 €
    ( 242.39 € )
    39 working days
    203.69 €
    ( 242.39 € )
    39 working days
    264.50 €
    ( 314.75 € )
    43 working days
    266.76 €
    ( 317.44 € )
    43 working days
    266.76 €
    ( 317.44 € )
    46 working days
    336.53 €
    ( 400.47 € )
    43 working days
    338.77 €
    ( 403.14 € )
    39 working days
    338.77 €
    ( 403.14 € )
    39 working days
    438.94 €
    ( 522.34 € )
    43 working days
    441.19 €
    ( 525.02 € )
    39 working days
    441.19 €
    ( 525.02 € )
    39 working days
  • 1

    • More Information

    Basic information

    Outputs analog signals for actuator stroke position.
    [Features]
    · Supports analog output with 4 types of measurement range.
    · Switch output available, IO-Link compatible.
    · Can be installed to the mounting groove on the cylinder auto switches from the top side.
    · Lead connection type: Discrete wire (2 m), M8 4 pin (0.3 m), M12 4 pin (0.3 m)
    [Applications]
    · Determines vertical/horizontal positioning, detects lifter position, performs machined hole inspection and dimensional measurements.
