Configure
- a(mm)
- 150
- 200
- b1(mm)
- 400
- 500
- 630
- b2(mm)
- 100
- 200
- b3(mm)
- 35
- 40
- 60
- c(mm)
- 50
- 60
- 70
- d(mm)
- 20
- 25
- l1(mm)
- 400
- 500
- 630
- l2(mm)
- 100
- 200
- l3(mm)
- 35
- 40
- y(mm)
- 12
- 16
- Number of T-slotsa1
- 5
- 7
- 9
- Number of T-slotsa2
- 5
- 7
- 9
- CAD
- 3D
- Est. shipping days
- All
- Within 4 working days

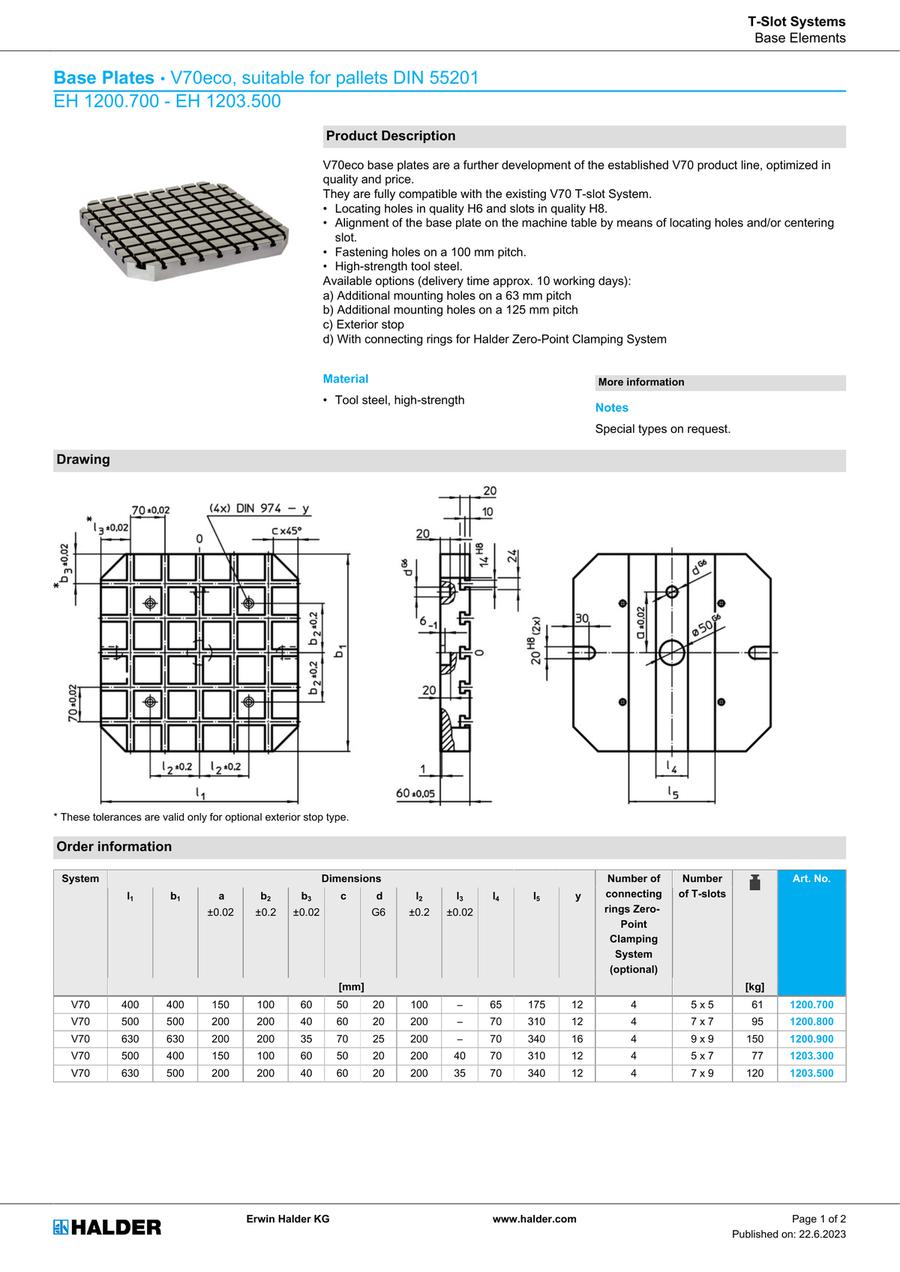

Base Plates, V70eco, overall dimensions same as pallets DIN 55201
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
3,409.42 € ( 4,057.21 € ) | 4 working days |
4,210.07 € ( 5,009.98 € ) | 4 working days |
5,360.23 € ( 6,378.67 € ) | 4 working days |
3,872.00 € ( 4,607.68 € ) | 4 working days |
4,818.30 € ( 5,733.78 € ) | 4 working days |
More Information
Basic information
V70eco base plates are a further development of the established V70 product line, optimized in quality and price.
They are fully compatible with the existing V70 T-slot System.
• Centers to H6 tolerance and slots to H8 tolerance.
• Alignment of the base plate on the machine table by means of centers and/or centering slot.
• Fastening holes on a 100 mm pitch.
• High tensile tool steel.
