Clamping Angles, semi-finished

Catalog

Part number:

Still undefined. 6 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Order suspended

Order suspended

(mm)

b₁

(mm)

b₂

(mm)

h₁

(mm)

l₁

(mm)

l₂

(mm)

l₃

(mm)

l₄

(mm)

Suitable for

Amount fastening holes n

Weight

(g)

Minimum order quantity

Data sheet	150	400	150	475	400	400	-	-	150	4	81	12	M12	4	150	1 pieces
Data sheet	150	400	150	475	400	400	500	-	150	4	81	12	M12	4	173	1 pieces
Data sheet	200	500	200	595	500	500	-	-	200	6	101	12	M12	6	284	1 pieces
Data sheet	200	500	200	595	500	500	630	-	200	6	101	12	M12	6	334	1 pieces
Data sheet	200	630	200	725	630	630	-	-	200	6	131	16	M16	6	470	1 pieces
Data sheet	300	800	300	910	800	800	-	100	300	8	151	16	M16	8	745	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

3,125.04 € ( 3,718.80 € )	4 working days
3,544.35 € ( 4,217.78 € )	4 working days
3,825.07 € ( 4,551.83 € )	4 working days
4,451.77 € ( 5,297.61 € )	4 working days
5,842.16 € ( 6,952.17 € )	4 working days
7,872.76 € ( 9,368.58 € )	4 working days

More Information

Basic information

Basic information

[Specifications]
・Material: Grey cast iron GG
・a(mm): 150, 200, 300
・Suitable for: M12, M16

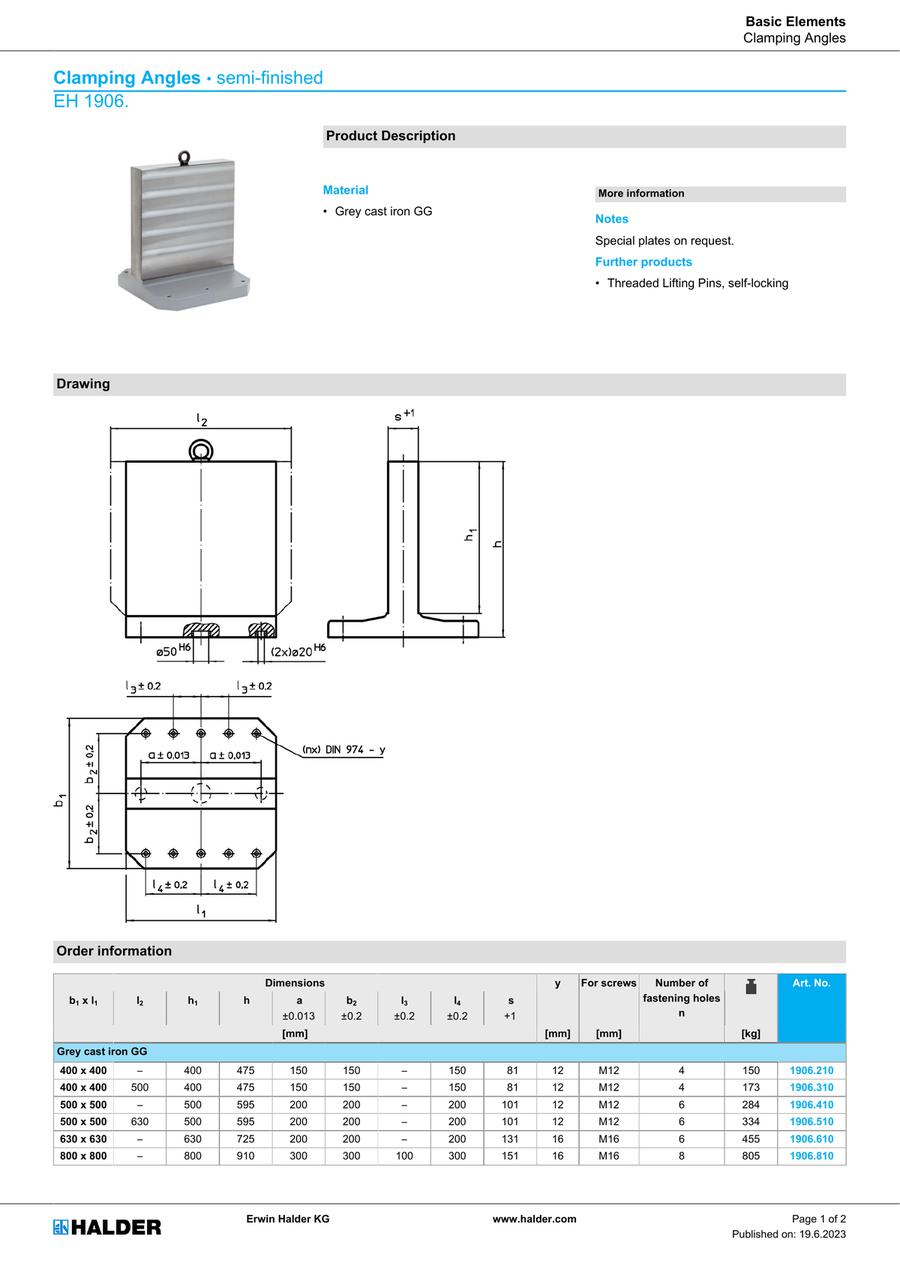

Clamping Angles, semi-finished EH 1906.Threaded Lifting Pins, self-locking.

Catalog

Products homepage

Catalog (2-page spread)
