Fixed Drilling Supports, adjustable
・Material: Steel, case-hardened, ground
・System: L12

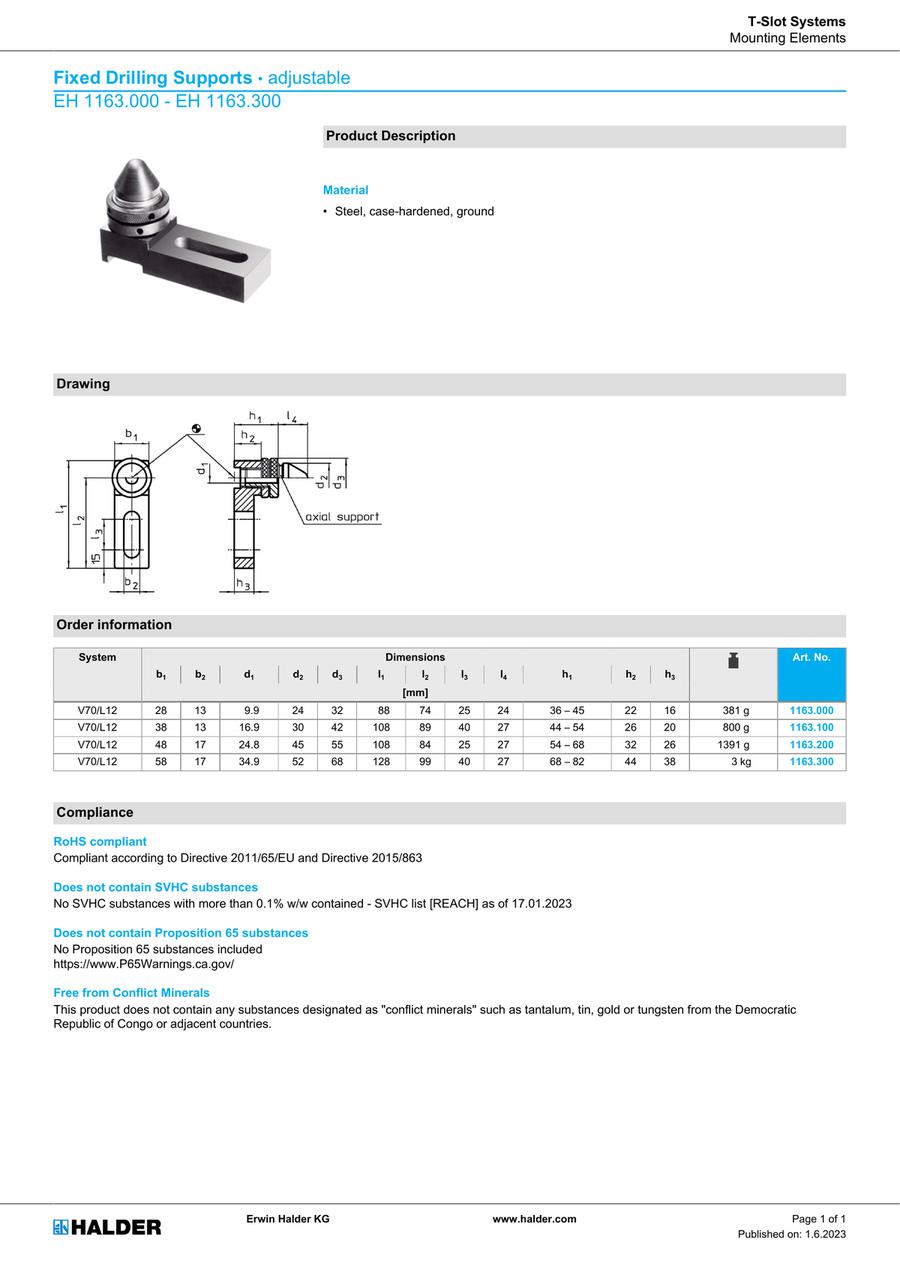

Fixed Drilling Supports, adjustable EH 1163.000 - EH 1163.300
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 1163.000 |
| 1163.100 |
| 1163.200 |
| 1163.300 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | b1 (mm) | b2 (mm) | d1 (mm) | d2 (mm) | d3 (mm) | h1to (mm) | h1of (mm) | h2 (mm) | h3 (mm) | l1 (mm) | l2 (mm) | l3 (mm) | l4 (mm) | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
256.71 € | 1 | 3 Days | 28 | 13 | 9.9 | 24 | 32 | 45 | 36 | 22 | 16 | 88 | 74 | 25 | 24 | 390 | |||
270.41 € | 1 | 3 Days | 38 | 13 | 16.9 | 30 | 42 | 54 | 44 | 26 | 20 | 108 | 89 | 40 | 27 | 785 | |||
282.99 € | 1 | 3 Days | 48 | 17 | 24.8 | 45 | 55 | 68 | 54 | 32 | 26 | 108 | 84 | 25 | 27 | 1425 | |||
306.24 € | 1 | 3 Days | 58 | 17 | 34.9 | 52 | 68 | 82 | 68 | 44 | 38 | 128 | 99 | 40 | 27 | 2550 |
Loading...
Basic information
| Material | Steel, case-hardened, ground | System | L12 | Conflict Minerals free | yes |
|---|---|---|---|---|---|
| REACH compliant | yes |
Configure
Basic Attributes
-
b1(mm)
-
b2(mm)
-
d1(mm)
-
d2(mm)
-
d3(mm)
-
h1to(mm)
- 45
- 54
- 68
- 82
-
h1of(mm)
- 36
- 44
- 54
- 68
-
h2(mm)
-
h3(mm)
-
l1(mm)
-
l2(mm)
-
l3(mm)
-
l4(mm)
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 3 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
