HALDER

Locating Segments

Locating Segments

Part number:

Still undefined. 2 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    1048.400
    1148.400
    Related

    b1

    (mm)

    b2

    (mm)

    d1

    (mm)

    h1

    (mm)

    h2

    (mm)

    h3

    (mm)

    h4

    (mm)

    h5

    (mm)

    y

    (mm)

    Suitable for

    System

    Weight

    (g)

    		Minimum order quantity

    Data sheet

    10
    20
    50
    31
    13
    2.6
    21
    17
    6
    M6
    V40
    160
    1 pieces

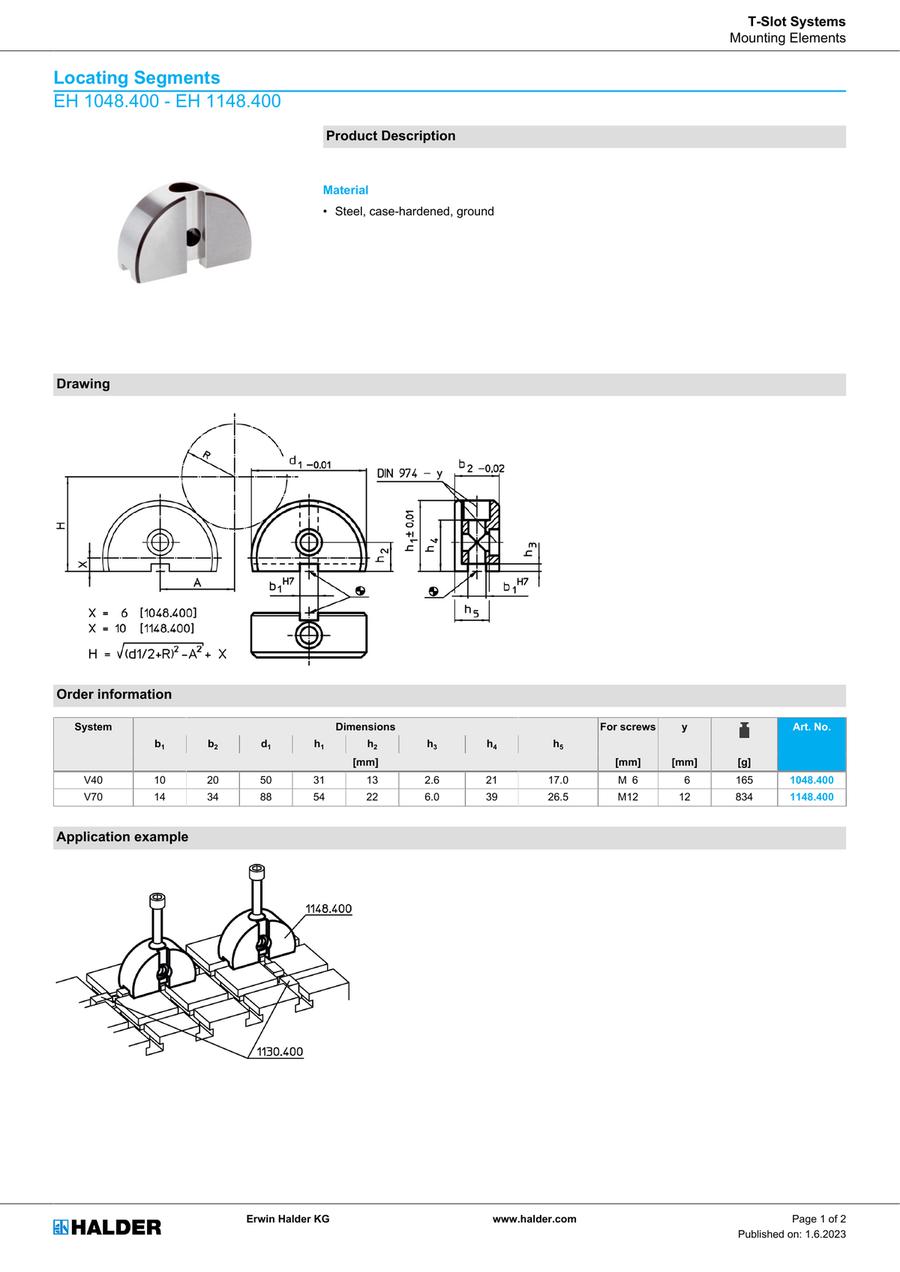

    Data sheet

    14
    34
    88
    54
    22
    6
    39
    26.5
    12
    M12
    V70
    830
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    278.32 €
    ( 331.20 € )
    4 working days
    307.87 €
    ( 366.37 € )
    4 working days
  • 1

    • More Information

    Basic information

    [Specifications]
    ・Material: Steel, case-hardened, ground
    ・b1(mm): 10, 14
    ・b2(mm): 20, 34

    The stop can be mounted on both sides of the clamping bar.
