HALDER

Positioning Clamping Cylinders

Positioning Clamping Cylinders

Part number:

Still undefined. 2 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    1553.500
    1653.500
    Related

    d

    (mm)

    d1

    (mm)

    d2

    (mm)

    h1

    (mm)

    h2

    (mm)

    h3

    (mm)

    System

    Weight

    (g)

    		Minimum order quantity

    Data sheet

    40
    12
    54
    25
    36
    24
    L12
    500
    1 pieces

    Data sheet

    50
    16
    70
    35
    46
    25
    L16
    1095
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    112.89 €
    ( 134.34 € )
    4 working days
    125.85 €
    ( 149.76 € )
    4 working days
  • 1

    • More Information

    Basic information

    [Specifications]
    ・Material: Steel, case-hardened, ground
    ・d(mm): 40, 50
    ・d1(mm): 12, 16
    ・System: L12, L16

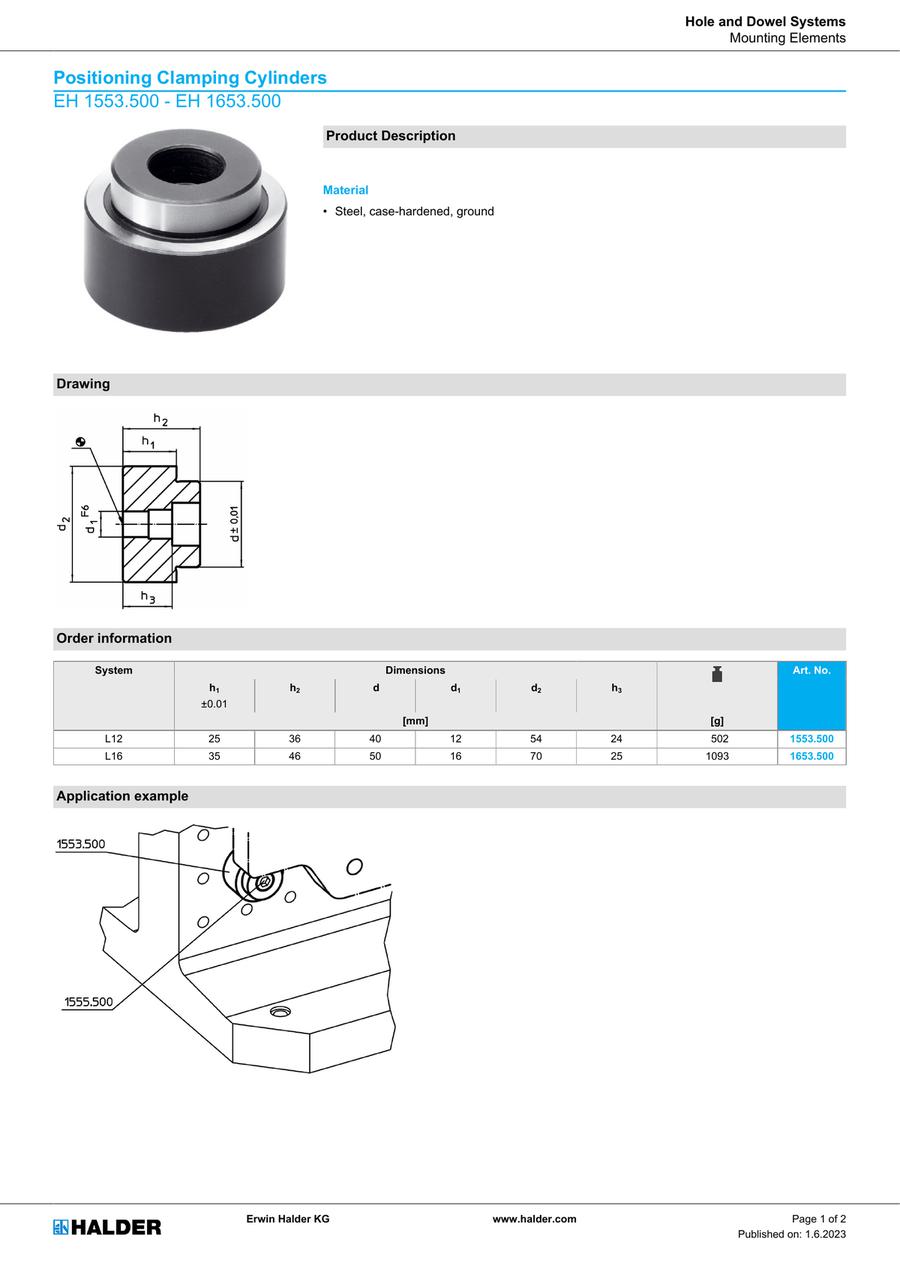

    Positioning Clamping Cylinders EH 1553.500-EH 1653.500
