Configure

b₁(mm)
- 25
- 40
- 70
b₂(mm)
- 10
- 14
b₃(mm)
- 18
- 24
d(mm)
- 8.25
- 13
h₁(mm)
- 63
- 100
- 105
- 180
h₂(mm)
- 6.5
- 10
h₃(mm)
- 14.5
- 20
h₄(mm)
- 29
- 39
- 45
h₅(mm)
- 22
- 30
l₁(mm)
- 63
- 100
l₂(mm)
- 29
- 39
l₃(mm)
- 25
- 26
System
- V40
- V70
CAD
- 3D
Est. shipping days
- All
- Within 4 working days

Slotted Clamping Angles

Mouse over image to enlarge

Catalog

Part number:

Still undefined. 8 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

1012.100
1012.200
1012.300
1012.400
1112.100
1112.200
1112.300
1112.400

b₁

(mm)

b₂

(mm)

b₃

(mm)

h₁

(mm)

h₂

(mm)

h₃

(mm)

h₄

(mm)

h₅

(mm)

l₁

(mm)

l₂

(mm)

l₃

(mm)

System

Weight

(g)

Number

Minimum order quantity

Data sheet	25	10	18	8.25	63	6.5	14.5	29	22	63	29	26	V40	246	1	1 pieces
Data sheet	25	10	18	8.25	105	6.5	14.5	45	22	63	29	26	V40	353	2	1 pieces
Data sheet	40	10	18	8.25	63	6.5	14.5	29	22	63	29	26	V40	520	1	1 pieces
Data sheet	40	10	18	8.25	105	6.5	14.5	45	22	63	29	26	V40	733	2	1 pieces
Data sheet	40	14	24	13	100	10	20	39	30	100	39	25	V70	1000	2	1 pieces
Data sheet	40	14	24	13	180	10	20	39	30	100	39	25	V70	1450	5	1 pieces
Data sheet	70	14	24	13	100	10	20	39	30	100	39	25	V70	2150	2	1 pieces
Data sheet	70	14	24	13	180	10	20	39	30	100	39	25	V70	3240	5	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

326.85 € ( 388.95 € )	4 working days
387.20 € ( 460.77 € )	4 working days
372.48 € ( 443.25 € )	4 working days
434.47 € ( 517.02 € )	4 working days
463.51 € ( 551.58 € )	4 working days
498.58 € ( 593.31 € )	4 working days
475.57 € ( 565.93 € )	4 working days
546.60 € ( 650.45 € )	4 working days

More Information

Basic information

Basic information

[Specifications]
・Material: Steel, case-hardened, ground
・b1(mm): 25, 40, 70
・b2(mm): 10, 14
・System: V40, V70

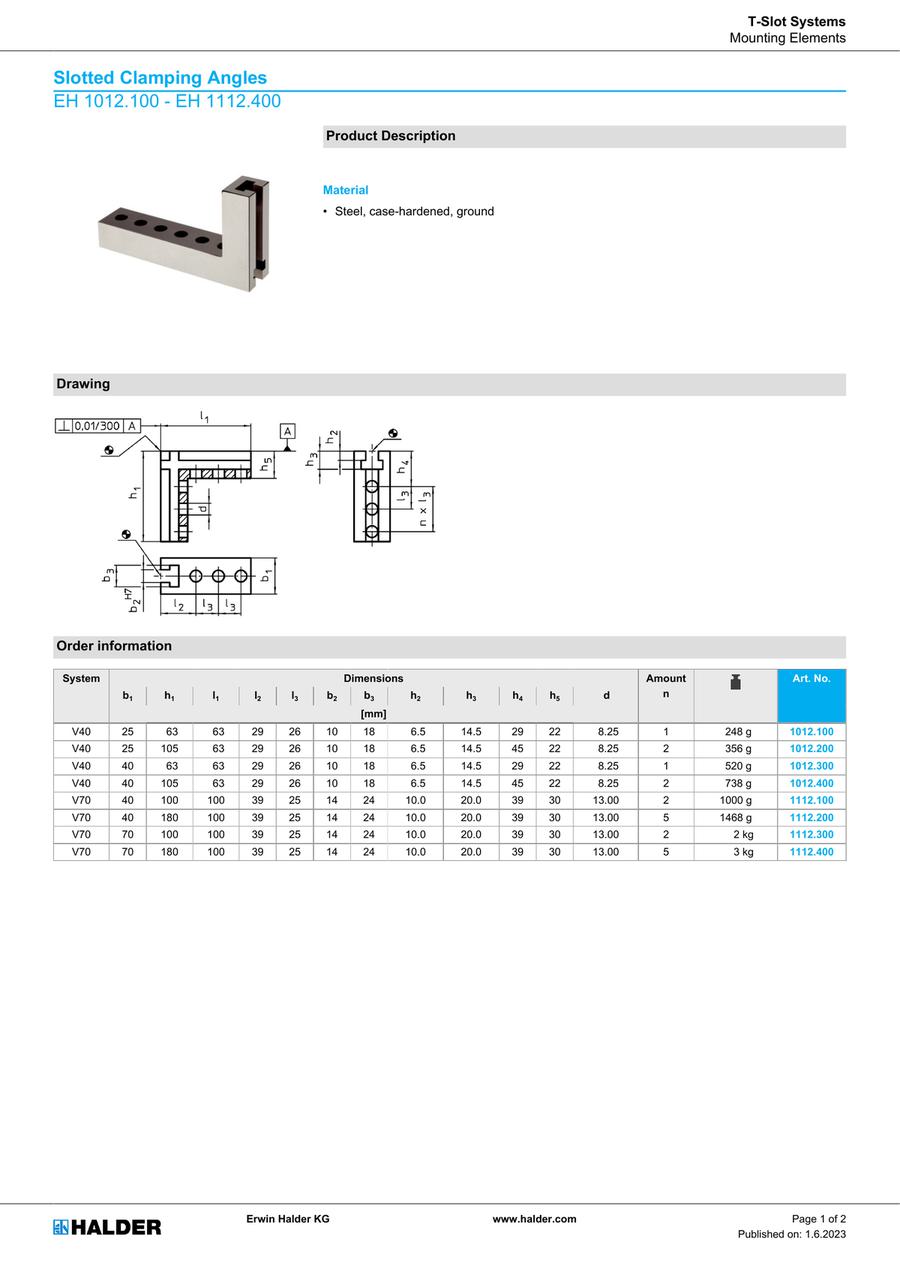

Slotted Clamping Angles EH 1012.100-EH 1112.400
