Spacers
Part number:
possible part numbers found.Product information

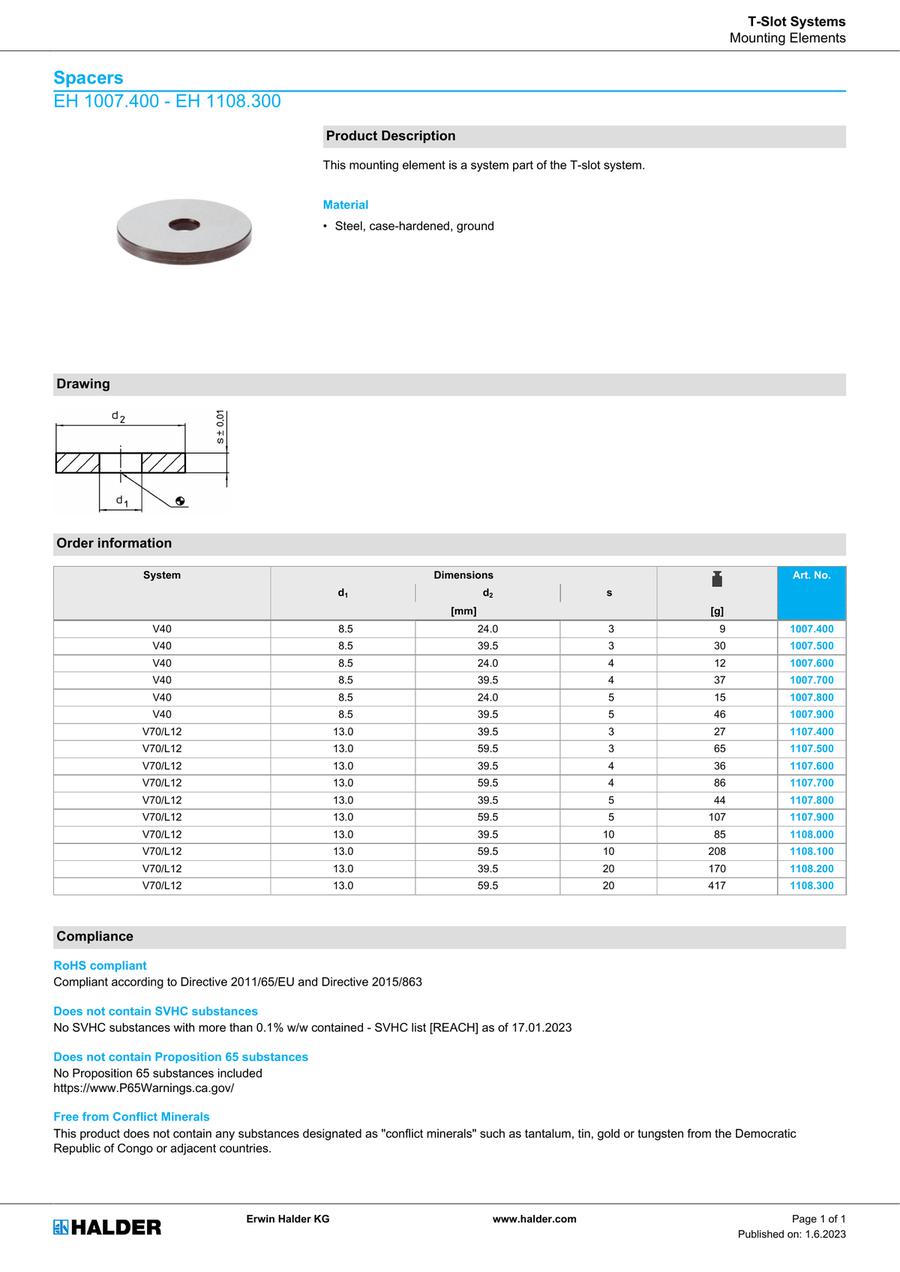

Spacers, EH 1007.400 - EH 1108.300
Product Description
 | This mounting element is a system part of the T-slot system. |
Material
• Steel, case-hardened, ground
Drawing
Order Information
| System | Dimensions | Weight | Art. No. | ||
| d1 | d2 | s | |||
| [mm] | [g] | ||||
| V40 | 8.5 | 24.0 | 3 | 9 | 1007.400 |
| V40 | 8.5 | 39.5 | 3 | 30 | 1007.500 |
| V40 | 8.5 | 24.0 | 4 | 12 | 1007.600 |
| V40 | 8.5 | 39.5 | 4 | 37 | 1007.700 |
| V40 | 8.5 | 24.0 | 5 | 15 | 1007.800 |
| V40 | 8.5 | 39.5 | 5 | 46 | 1007.900 |
| V70/L12 | 13.0 | 39.5 | 3 | 27 | 1107.400 |
| V70/L12 | 13.0 | 59.5 | 3 | 65 | 1107.500 |
| V70/L12 | 13.0 | 39.5 | 4 | 36 | 1107.600 |
| V70/L12 | 13.0 | 59.5 | 4 | 86 | 1107.700 |
| V70/L12 | 13.0 | 39.5 | 5 | 44 | 1107.800 |
| V70/L12 | 13.0 | 59.5 | 5 | 107 | 1107.900 |
| V70/L12 | 13.0 | 39.5 | 10 | 85 | 1108.000 |
| V70/L12 | 13.0 | 59.5 | 10 | 208 | 1108.100 |
| V70/L12 | 13.0 | 39.5 | 20 | 170 | 1108.200 |
| V70/L12 | 13.0 | 59.5 | 20 | 417 | 1108.300 |
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
15.14 € ( 18.02 € ) | 4 working days |
15.14 € ( 18.02 € ) | 4 working days |
15.14 € ( 18.02 € ) | 4 working days |
15.14 € ( 18.02 € ) | 4 working days |
15.14 € ( 18.02 € ) | 4 working days |
15.14 € ( 18.02 € ) | 4 working days |
15.28 € ( 18.18 € ) | 4 working days |
16.35 € ( 19.46 € ) | 4 working days |
15.28 € ( 18.18 € ) | 4 working days |
16.35 € ( 19.46 € ) | 4 working days |
15.28 € ( 18.18 € ) | Stock item: 1 working dayAvailable for same-day shipping |
16.35 € ( 19.46 € ) | 4 working days |
18.74 € ( 22.30 € ) | 4 working days |
19.86 € ( 23.63 € ) | 4 working days |
19.43 € ( 23.12 € ) | 3 working days |
20.80 € ( 24.75 € ) | 4 working days |
More Information
Basic information
[Specifications]
・Material: Steel, case-hardened, ground
・d1(mm): 8.5, 13
・d2(mm): 24, 39.5, 59.5
・System: L12, V40
This mounting element is a system part of the T-slot system.
