Stops, diamond coated
[Specifications]
・Body: Tool steel, hardened
・Pin: Diamond coating
・l1(mm): 42, 44
・l2(mm): 20

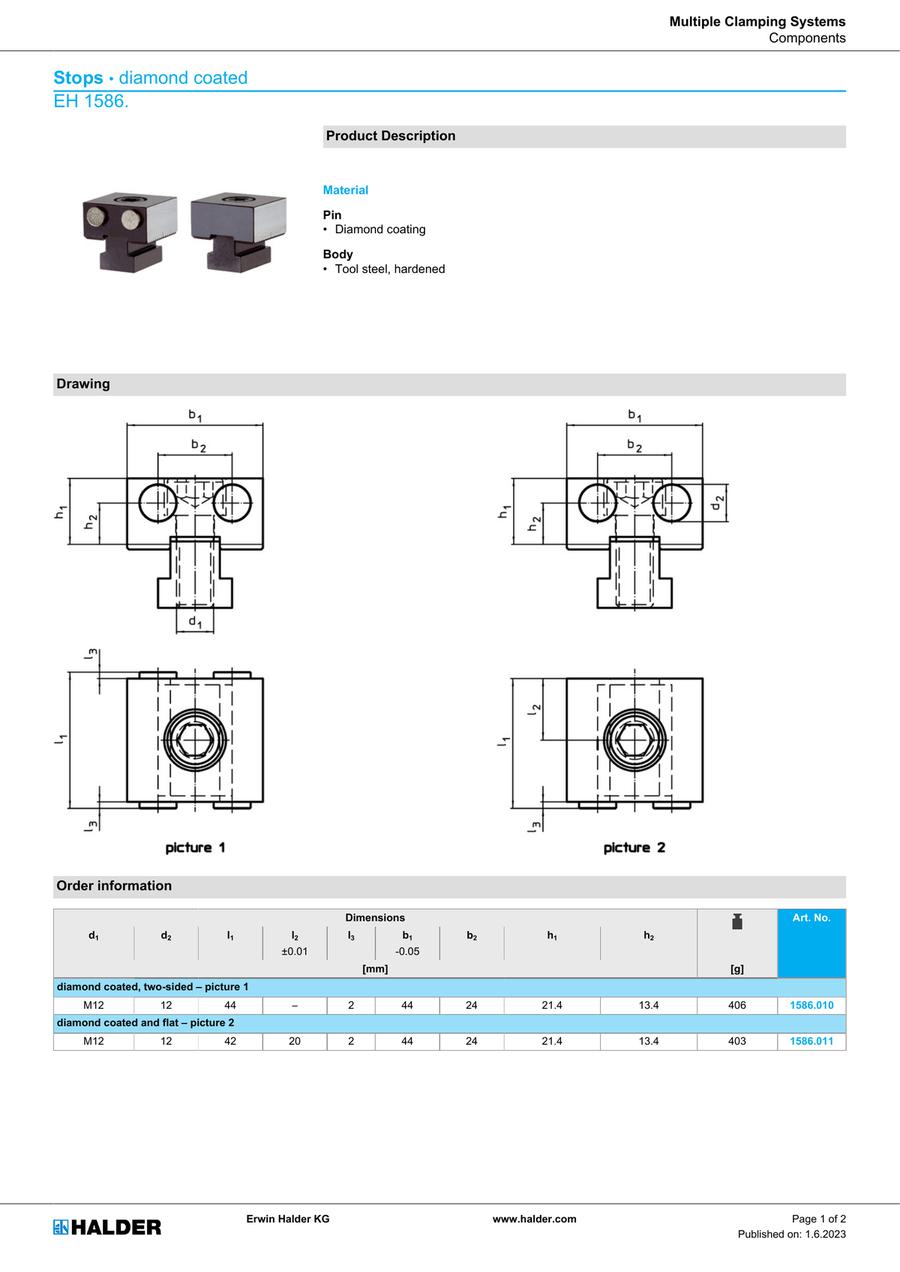

Stops, diamond coated EH 1586.
・Body: Tool steel, hardened
・Pin: Diamond coating
・l1(mm): 42, 44
・l2(mm): 20
Stops, diamond coated EH 1586.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| b1(mm) | 44 | b2(mm) | 24 | d(mm) | 12 |
|---|---|---|---|---|---|
| h1(mm) | 21.4 | h2(mm) | 13.4 | l3(mm) | 2 |
| Body | Tool steel, hardened | Pin | Diamond coating | Conflict Minerals free | yes |
| REACH compliant | yes | Weight(g) | 390 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
