Stops, Gripper Studs

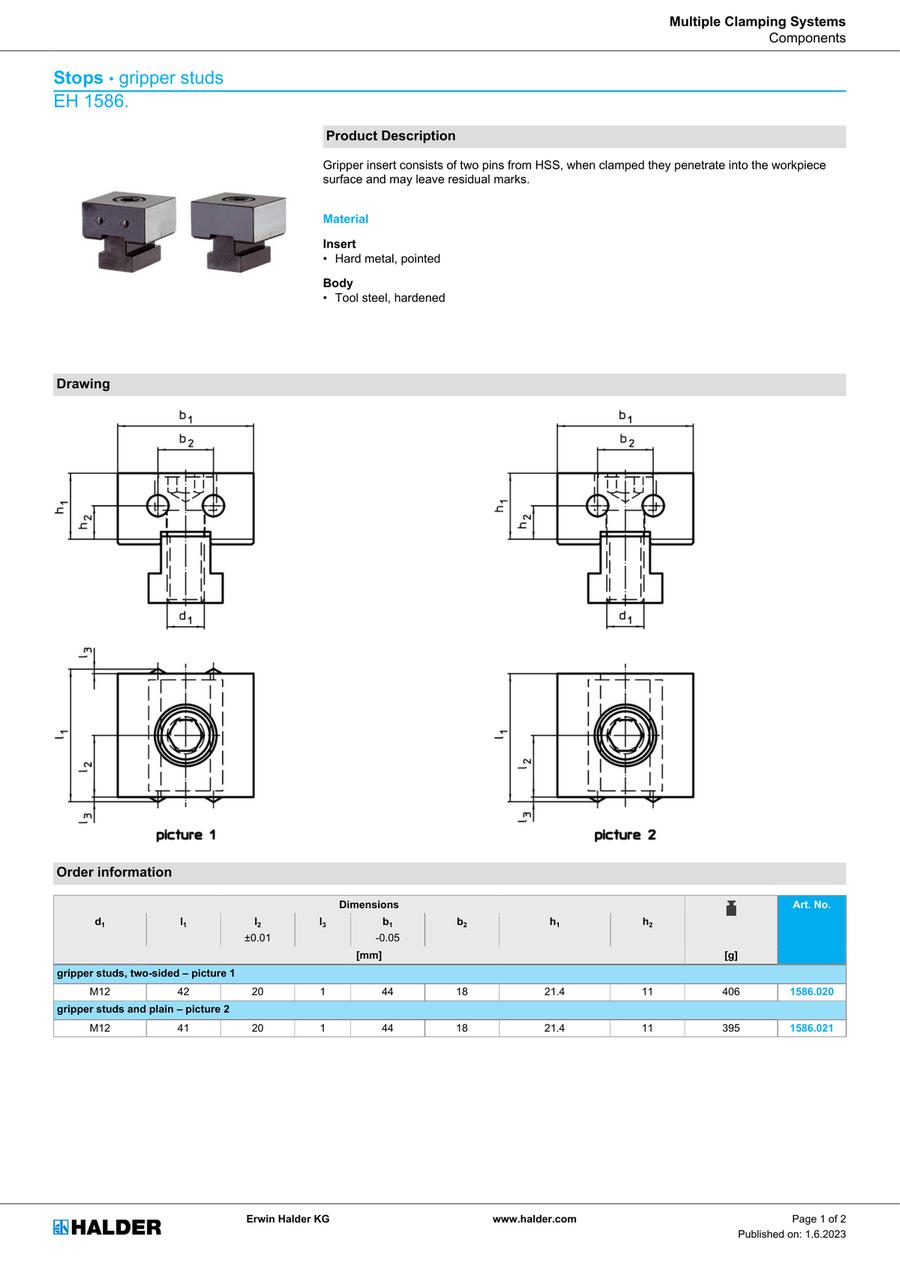

Gripper insert consists of two pins from HSS, when clamped they penetrate into the workpiece surface and may leave residual marks.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| b1(mm) | 44 | b2(mm) | 18 | h1(mm) | 21.4 |
|---|---|---|---|---|---|
| h2(mm) | 11 | l2(mm) | 20 | l3(mm) | 1 |
| Body | Tool steel, hardened | Insert | Hard metal, pointed | Conflict Minerals free | yes |
| REACH compliant | yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
