Stops, horizontal prisms
[Specifications]
・Body: Tool steel, hardened
・b1(mm): 44
・h1(mm): 21.4
・l2(mm): 20
Stops, horizontal prisms EH 1586.
・Body: Tool steel, hardened
・b1(mm): 44
・h1(mm): 21.4
・l2(mm): 20

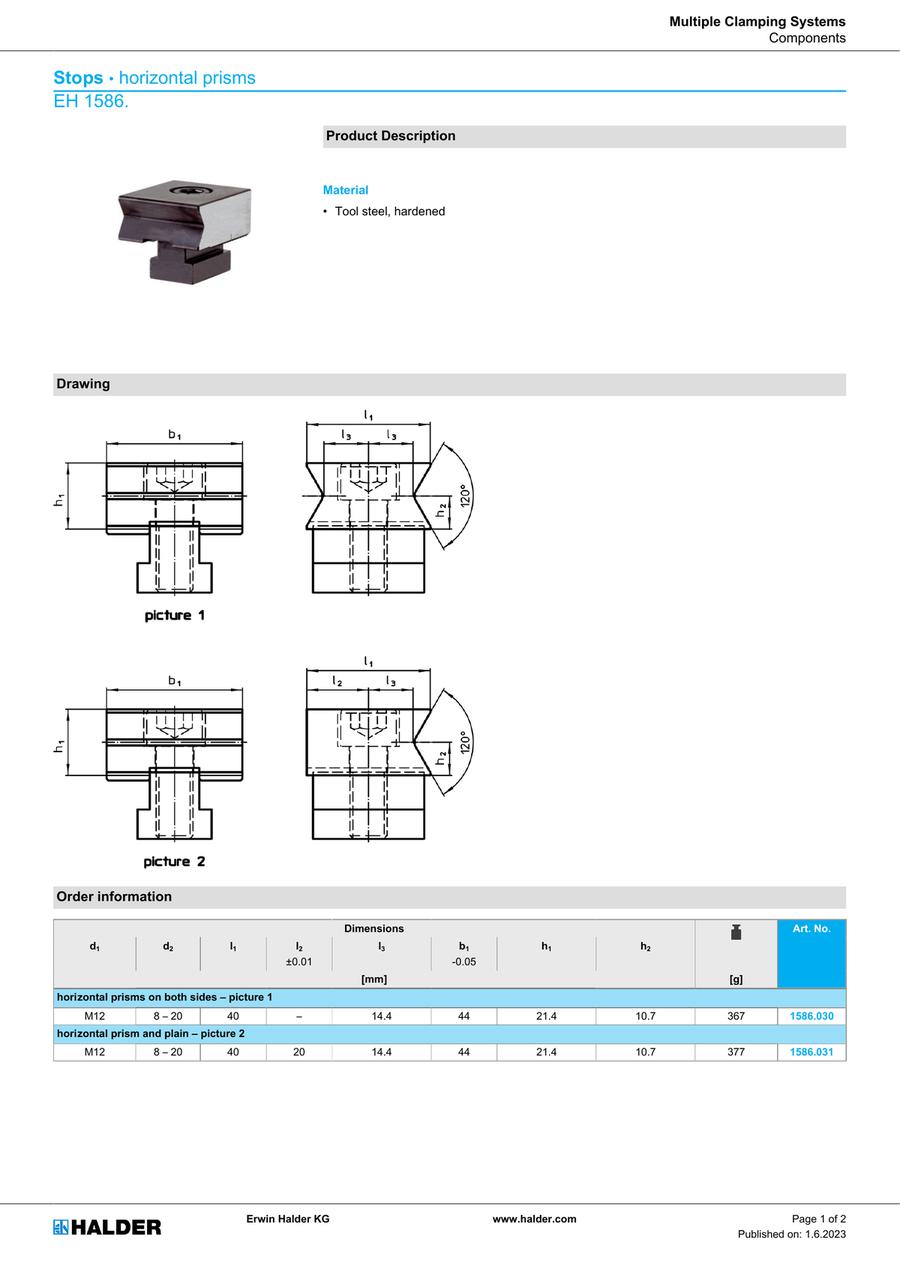

Stops, horizontal prisms EH 1586.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| b1(mm) | 44 | h1(mm) | 21.4 | h2(mm) | 10.7 |
|---|---|---|---|---|---|
| l1(mm) | 40 | l3(mm) | 14.4 | Material | Tool steel, hardened |
| Conflict Minerals free | yes | REACH compliant | yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
