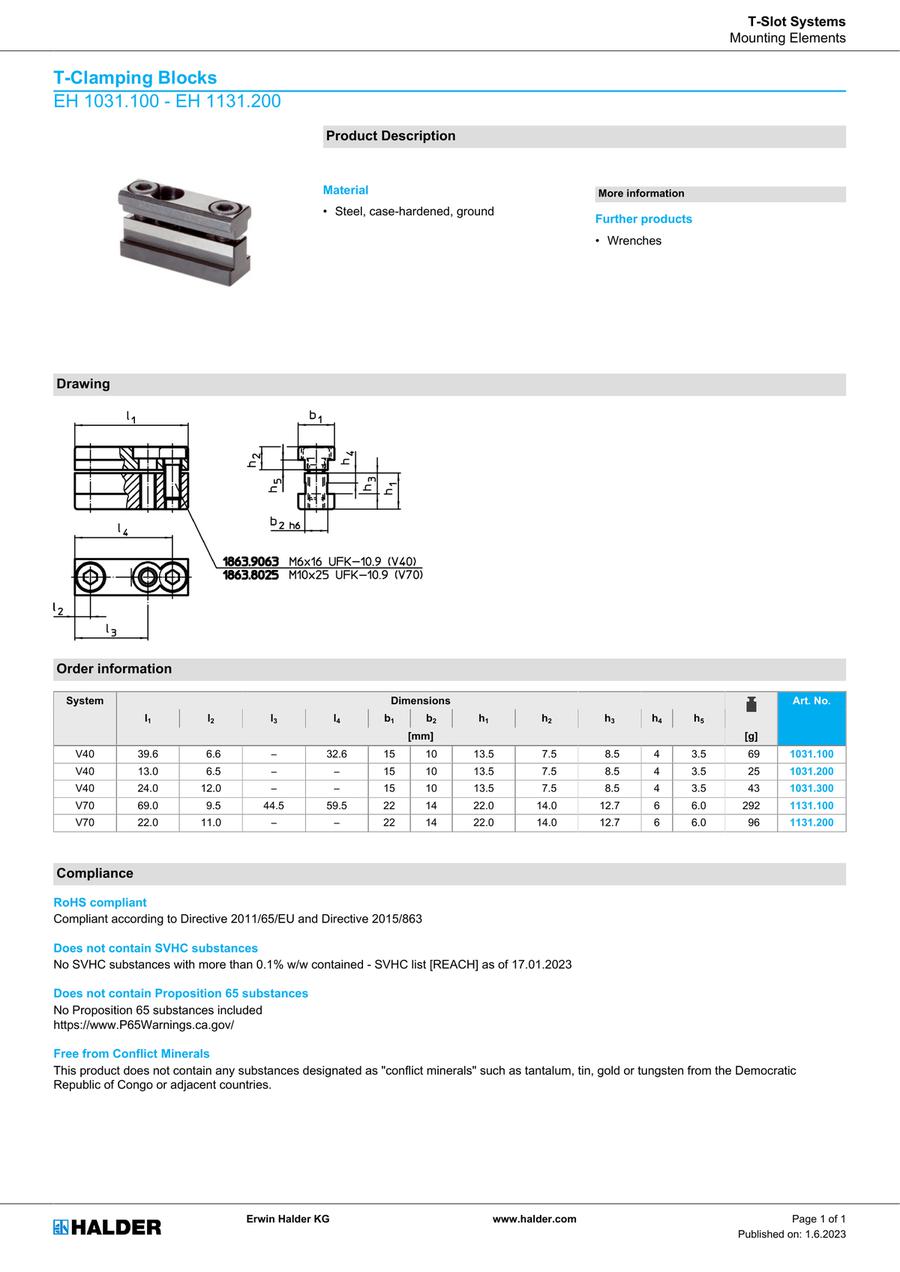

T-Clamping Blocks
・Material: Steel, case-hardened, ground
・b1(mm): 15, 22
・System: V40, V70
T-Clamping Blocks
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 1031.100 |
| 1031.200 |
| 1031.300 |
| 1131.100 |
| 1131.200 |
| 1131.500 |
| 1131.600 |
| 1131.700 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | b1 (mm) | b2 (mm) | h1 (mm) | h2 (mm) | h3 (mm) | h4 (mm) | h5 (mm) | l1 (mm) | l2 (mm) | l3 (mm) | l4 (mm) | System | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
69.77 € | 1 | 3 Days | 15 | 10 | 13.5 | 7.5 | 8.5 | 4 | 3.5 | 39.6 | 6.6 | - | 32.6 | V40 | 67 | |||
56.57 € | 1 | 3 Days | 15 | 10 | 13.5 | 7.5 | 8.5 | 4 | 3.5 | 13 | 6.5 | - | - | V40 | 22 | |||
63.49 € | 1 | 3 Days | 15 | 10 | 13.5 | 7.5 | 8.5 | 4 | 3.5 | 24 | 12 | - | - | V40 | 42 | |||
65.82 € | 1 | 3 Days | 22 | 14 | 22 | 14 | 12.7 | 6 | 6 | 69 | 9.5 | 44.5 | 59.5 | V70 | 280 | |||
55.50 € | 1 | 3 Days | 22 | 14 | 22 | 14 | 12.7 | 6 | 6 | 22 | 11 | - | - | V70 | 100 | |||
115.97 € | 1 | 3 Days | - | - | - | - | - | - | - | 23.5 | 13.5 | - | - | V70 | 110 | |||
125.09 € | 1 | 3 Days | - | - | - | - | - | - | - | 40 | 14 | 12 | - | V70 | 180 | |||
130.62 € | 1 | 3 Days | - | - | - | - | - | - | - | 69 | 14.5 | 40 | - | V70 | 320 |
Loading...
Basic information
| Material | Steel, case-hardened, ground | Conflict Minerals free | yes | REACH compliant | yes |
|---|
Configure
Basic Attributes
-
b1(mm)
-
b2(mm)
-
h1(mm)
-
h2(mm)
-
h3(mm)
-
h4(mm)
-
h5(mm)
-
l1(mm)
-
l2(mm)
-
l3(mm)
-
l4(mm)
-
System
- V40
- V70
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 3 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
