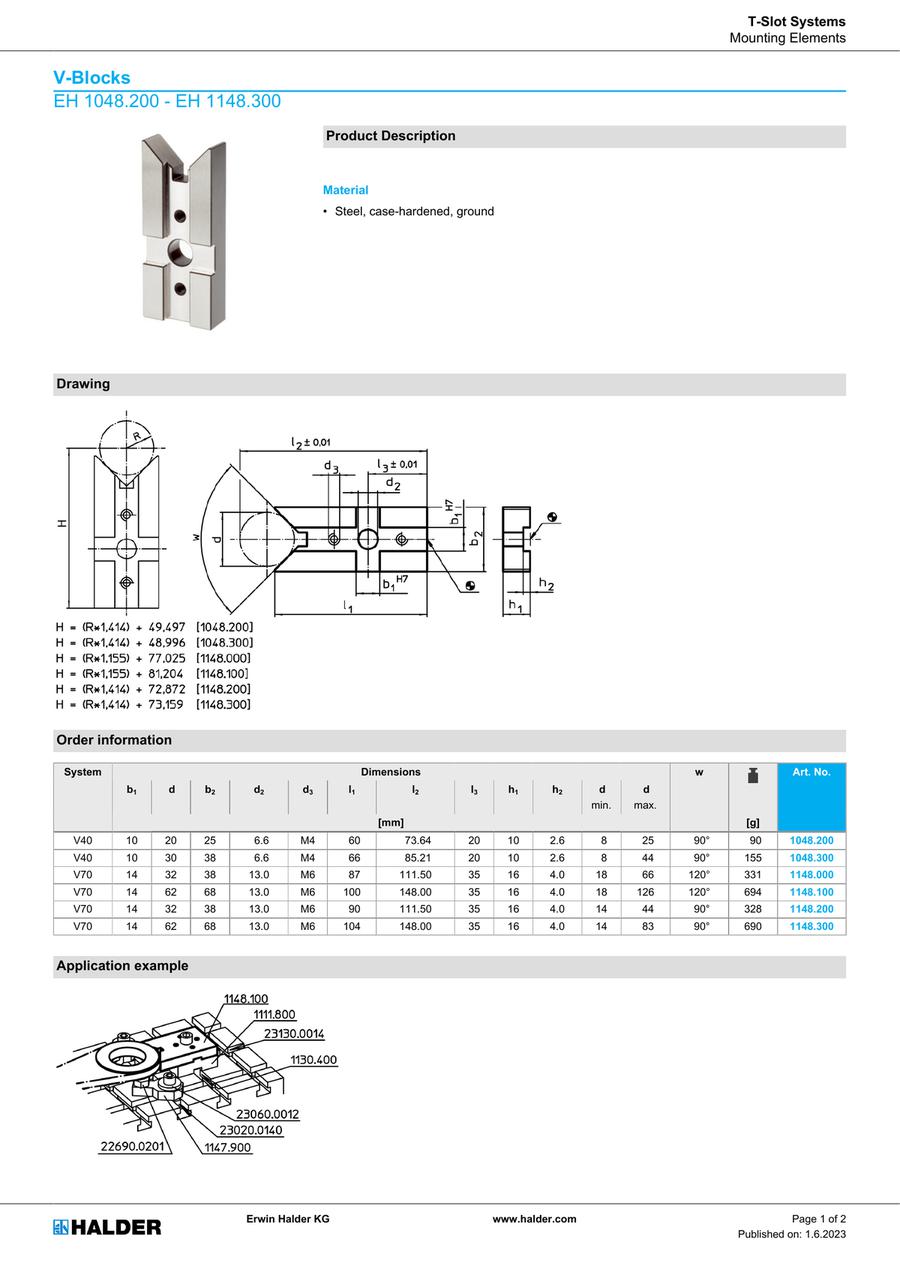

V-Blocks
・Material: Steel, case-hardened, ground
・REACH compliant: yes
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 1048.200 |
| 1048.300 |
| 1048.500 |
| 1148.000 |
| 1148.100 |
| 1148.200 |
| 1148.300 |
| 1148.500 |
| 1548.100 |
| 1548.500 |
| 1648.100 |
| 1648.500 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | b1 (mm) | b2 (mm) | d min. (mm) | d max. (mm) | d (mm) | d1 (mm) | d2 (mm) | d3 min. (mm) | d3 max. (mm) | d3 (mm) | h (mm) | h1 (mm) | h2 (mm) | h3 (mm) | h4 (mm) | h5 (mm) | l1 (mm) | l2 (mm) | l3 (mm) | w (°) | y (mm) | Suitable for | System | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
342.06 € | 1 | 4 Days | 10 | 25 | 8 | 25 | 20 | - | 6.6 | - | - | M4 | - | 10 | 2.6 | - | - | - | 60 | 73.64 | 20 | 90 | - | - | V40 | 94 | |||
366.83 € | 1 | 4 Days | 10 | 38 | 8 | 44 | 30 | - | 6.6 | - | - | M4 | - | 10 | 2.6 | - | - | - | 66 | 85.21 | 20 | 90 | - | - | V40 | 158 | |||
421.77 € | 1 | 4 Days | 32 | 10 | 8 | 35 | 22 | - | M8 | - | - | - | - | 36 | 48.55 | 14.5 | 13 | 2.6 | 40 | 10 | - | - | 6 | M6 | V40 | 343 | |||
383.44 € | 1 | 4 Days | 14 | 38 | 18 | 66 | 32 | - | 13 | - | - | M6 | - | 16 | 4 | - | - | - | 87 | 111.5 | 35 | 120 | - | - | V70 | 330 | |||
410.96 € | 1 | 4 Days | 14 | 68 | 18 | 126 | 62 | - | 13 | - | - | M6 | - | 16 | 4 | - | - | - | 100 | 148 | 35 | 120 | - | - | V70 | 690 | |||
383.44 € | 1 | 4 Days | 14 | 38 | 14 | 44 | 32 | - | 13 | - | - | M6 | - | 16 | 4 | - | - | - | 90 | 111.5 | 35 | 90 | - | - | V70 | 325 | |||
410.96 € | 1 | 4 Days | 14 | 68 | 14 | 83 | 62 | - | 13 | - | - | M6 | - | 16 | 4 | - | - | - | 104 | 148 | 35 | 90 | - | - | V70 | 695 | |||
467.66 € | 1 | 4 Days | 54 | 14 | 12 | 67 | 40 | - | M12 | - | - | - | - | 60 | 83.3 | 24 | 19 | 5 | 70 | 18 | - | - | 12 | M12 | V70 | 1640 | |||
353.62 € | 1 | 4 Days | - | - | - | - | - | 12 | M12 | 18 | 148 | 60 | - | 40 | 115 | - | - | - | 78 | - | - | - | - | - | L12 | 1230 | |||
494.69 € | 1 | 4 Days | - | - | - | - | - | 12 | M12 | - | - | - | 24 | - | - | - | - | - | - | - | - | - | - | - | L12 | 3000 | |||
409.95 € | 1 | 4 Days | - | - | - | - | - | 16 | M16 | 18 | 190 | 100 | - | 35 | 152 | - | - | - | 98 | - | - | - | - | - | L16 | 1440 | |||
514.54 € | 1 | 4 Days | - | - | - | - | - | 16 | M16 | - | - | - | 25 | - | - | - | - | - | - | - | - | - | - | - | L16 | 2900 |
Loading...
Basic information
| Material | Steel, case-hardened, ground | Conflict Minerals free | yes | REACH compliant | yes |
|---|
Configure
Basic Attributes
-
b1(mm)
-
b2(mm)
-
d min.(mm)
- 8
- 12
- 14
- 18
-
d max.(mm)
- 25
- 35
- 44
- 66
- 67
- 83
- 126
-
d(mm)
-
d1(mm)
-
d2(mm)
-
d3 min.(mm)
- 18
-
d3 max.(mm)
- 148
- 190
-
d3(mm)
-
h(mm)
-
h1(mm)
-
h2(mm)
-
h3(mm)
-
h4(mm)
-
h5(mm)
-
l1(mm)
-
l2(mm)
-
l3(mm)
-
w(°)
- 90
- 120
-
y(mm)
- 6
- 12
-
Suitable for
- M6
- M12
-
System
- L12
- L16
- V40
- V70
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
