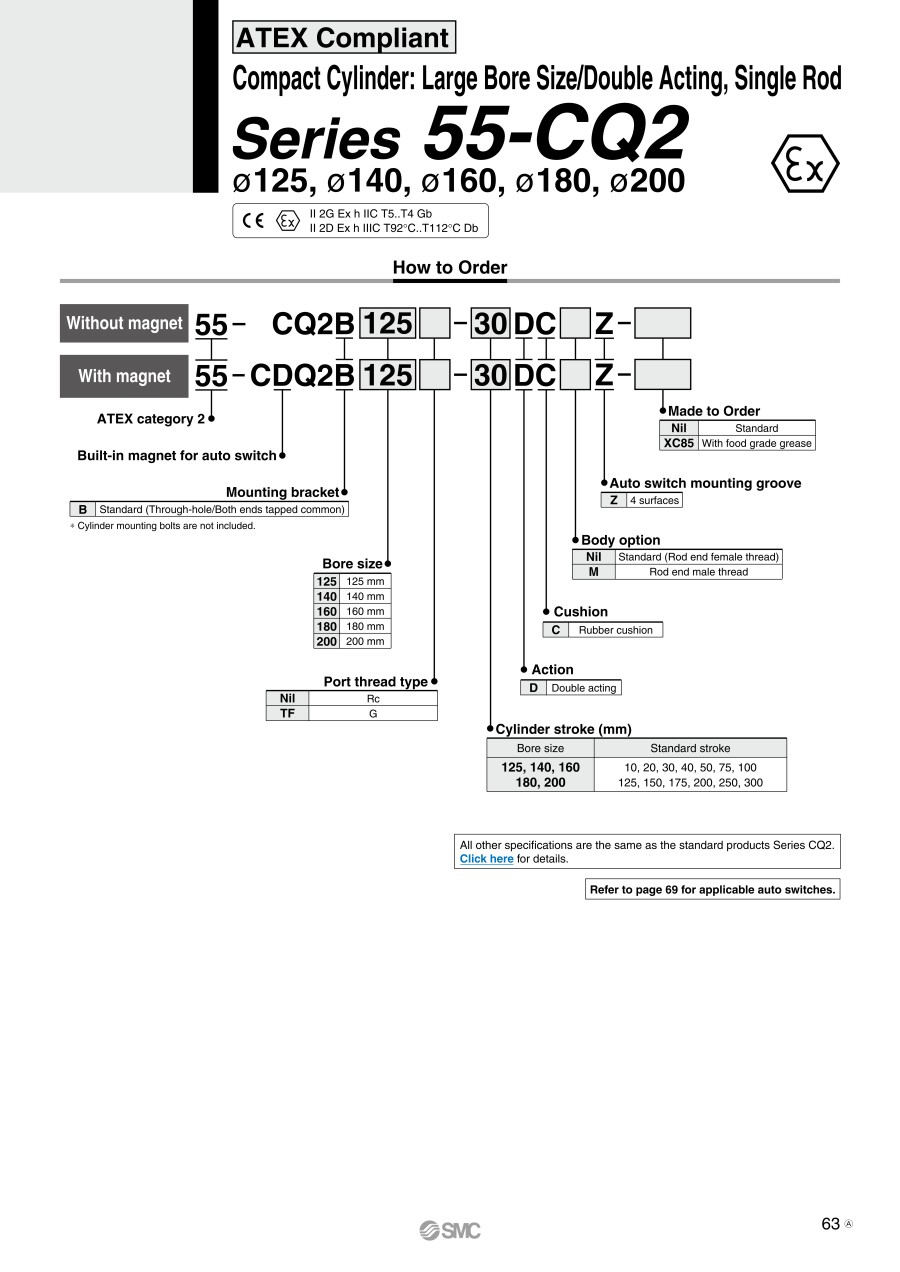

Compact Cylinder Large Bore Size, Double Acting, Single Rod 55-CQ2 Series

Compact Cylinder Large Bore Size, Double Acting, Single Rod 55-CQ2 Series

Caution

  • Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.

Part number:

Still undefined. 23 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    55-CDQ2B125-75DCZ
    55-CDQ2B125-100DCZ
    55-CDQ2B125TF-20DCMZ
    55-CDQ2B125TF-30DCZ
    55-CDQ2B125TF-40DCZ
    55-CDQ2B125TF-300DCMZ
    55-CDQ2B125TF-300DCZ
    55-CDQ2B140TF-10DCZ
    55-CDQ2B140TF-30DCZ
    55-CDQ2B140TF-150DCZ
    55-CDQ2B140TF-175DCZ
    55-CDQ2B160-10DCZ
    55-CDQ2B160TF-50DCMZ
    55-CDQ2B200-20DCZ
    55-CDQ2B200TF-80DCMZ
    55-CDQ2B200TF-150DCMZ
    55-CDQ2B200TF-150DCZ
    55-CDQ2B200TF-175DCZ
    55-CQ2B125TF-300DCMZ
    55-CQ2B160TF-20DCZ
    55-CQ2B160TF-75DCZ
    55-CQ2B200TF-20DCZ
    55-CQ2B200TF-80DCZ

    Cylinder I.D: D

    (Ø)

    Stroke: L

    (mm)

    Operating Pressure

    (MPa)

    Specifications

    Port thread type

    Body Options

    		Minimum order quantity
    125
    75
    0.05 to 1.0
    Built-in magnet
    Rc
    Standard (rod-end female thread)
    1 pieces
    125
    100
    0.05 to 1.0
    Built-in magnet
    Rc
    Standard (rod-end female thread)
    1 pieces
    125
    20
    0.05 to 1.0
    Built-in magnet
    G
    Male rod end
    1 pieces
    125
    30
    0.05 to 1.0
    Built-in magnet
    G
    Standard (rod-end female thread)
    1 pieces
    125
    40
    0.05 to 1.0
    Built-in magnet
    G
    Standard (rod-end female thread)
    1 pieces
    125
    300
    0.05 to 1.0
    Built-in magnet
    G
    Male rod end
    1 pieces
    125
    300
    0.05 to 1.0
    Built-in magnet
    G
    Standard (rod-end female thread)
    1 pieces
    140
    10
    0.05 to 1.0
    Built-in magnet
    G
    Standard (rod-end female thread)
    1 pieces
    140
    30
    0.05 to 1.0
    Built-in magnet
    G
    Standard (rod-end female thread)
    1 pieces
    140
    150
    0.05 to 1.0
    Built-in magnet
    G
    Standard (rod-end female thread)
    1 pieces
    140
    175
    0.05 to 1.0
    Built-in magnet
    G
    Standard (rod-end female thread)
    1 pieces
    160
    10
    0.05 to 1.0
    Built-in magnet
    Rc
    Standard (rod-end female thread)
    1 pieces
    160
    50
    0.05 to 1.0
    Built-in magnet
    G
    Male rod end
    1 pieces
    200
    20
    0.05 to 1.0
    Built-in magnet
    Rc
    Standard (rod-end female thread)
    1 pieces
    200
    80
    0.05 to 0.7
    Built-in magnet
    G
    Male rod end
    1 pieces
    200
    150
    0.05 to 1.0
    Built-in magnet
    G
    Male rod end
    1 pieces
    200
    150
    0.05 to 1.0
    Built-in magnet
    G
    Standard (rod-end female thread)
    1 pieces
    200
    175
    0.05 to 1.0
    Built-in magnet
    G
    Standard (rod-end female thread)
    1 pieces
    125
    300
    0.05 to 1.0
    Without magnet
    G
    Male rod end
    1 pieces
    160
    20
    0.05 to 1.0
    Without magnet
    G
    Standard (rod-end female thread)
    1 pieces
    160
    75
    0.05 to 1.0
    Without magnet
    G
    Standard (rod-end female thread)
    1 pieces
    200
    20
    0.05 to 0.7
    Without magnet
    G
    Standard (rod-end female thread)
    1 pieces
    200
    80
    0.05 to 0.7
    Without magnet
    G
    Standard (rod-end female thread)
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    340.27 €
    ( 404.92 € )
    7 working days
    357.69 €
    ( 425.65 € )
    7 working days
    288.81 €
    ( 343.68 € )
    26 working days
    295.00 €
    ( 351.05 € )
    7 working days
    308.95 €
    ( 367.65 € )
    7 working days
    427.90 €
    ( 509.20 € )
    7 working days
    420.26 €
    ( 500.11 € )
    7 working days
    308.23 €
    ( 366.79 € )
    7 working days
    336.11 €
    ( 399.97 € )
    7 working days
    421.23 €
    ( 501.26 € )
    7 working days
    432.29 €
    ( 514.43 € )
    7 working days
    381.02 €
    ( 453.41 € )
    7 working days
    445.03 €
    ( 529.59 € )
    7 working days
    598.18 €
    ( 711.83 € )
    26 working days
    683.29 €
    ( 813.12 € )
    26 working days
    714.15 €
    ( 849.84 € )
    26 working days
    705.77 €
    ( 839.87 € )
    68 working days
    721.23 €
    ( 858.26 € )
    68 working days
    400.44 €
    ( 476.52 € )
    26 working days
    367.55 €
    ( 437.38 € )
    7 working days
    427.11 €
    ( 508.26 € )
    7 working days
    559.65 €
    ( 665.98 € )
    68 working days
    636.52 €
    ( 757.46 € )
    68 working days
