GANTER

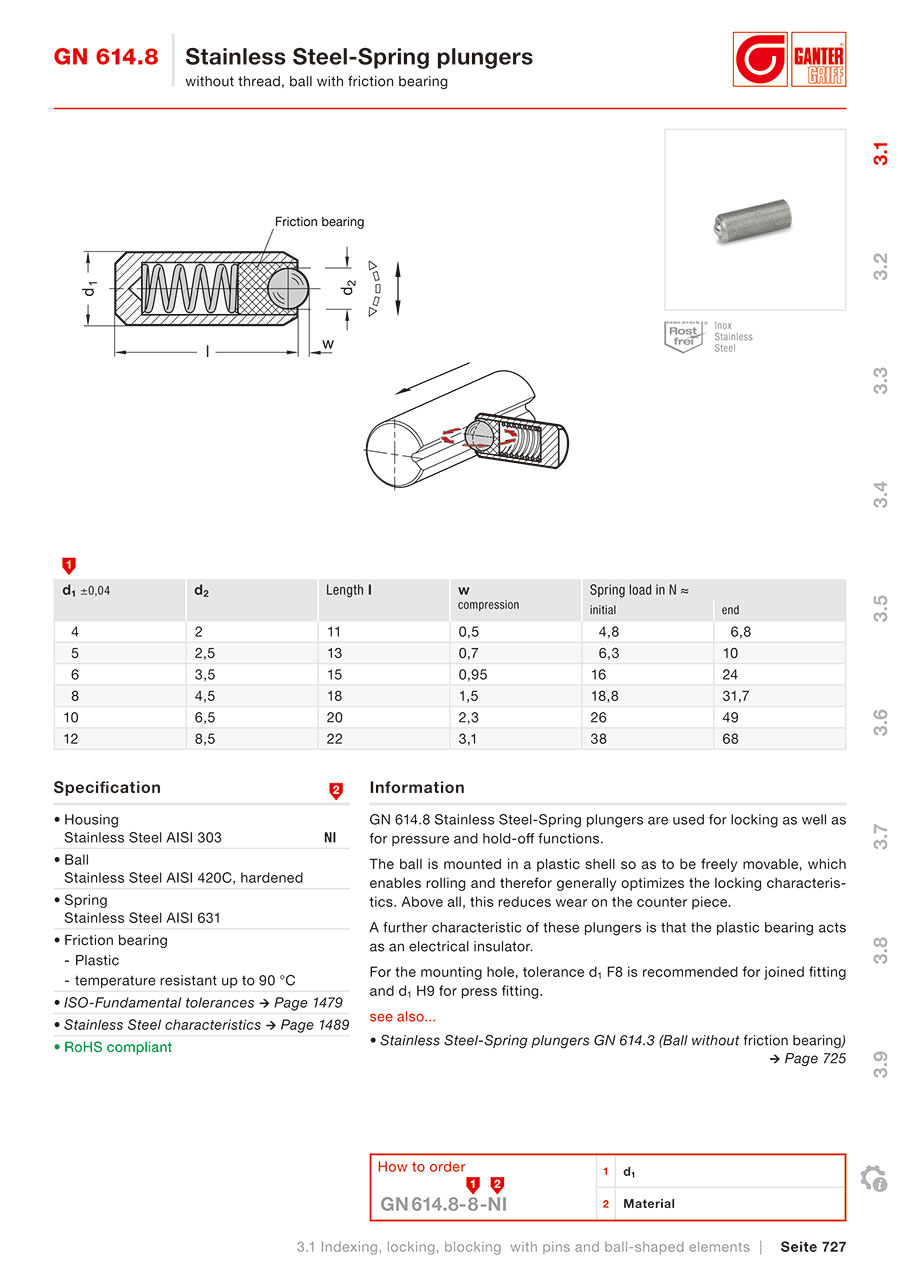

Stainless Steel-Spring plungers, without thread, ball with friction bearing (GN 614.8)

Stainless Steel-Spring plungers, without thread, ball with friction bearing (GN 614.8)

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    614.8-4-NI
    614.8-5-NI
    614.8-6-NI
    614.8-8-NI
    614.8-10-NI
    614.8-12-NI

    Outside diameter d1

    d2

    l1

    w

    x14

    Spring load, initial

    (N)

    Weight

    (kg)

    		Minimum order quantity
    4
    2
    11
    0.5
    6,8, 6,8
    4,8, 4,8
    0.001
    1 pieces
    5
    2.5
    13
    0.7
    10, 10
    6,3, 6,3
    0.001
    1 pieces
    6
    3.5
    15
    0.95
    24, 24
    16, 16
    0.002
    1 pieces
    8
    4.5
    18
    1.5
    31,7, 31,7
    18,8, 18,8
    0.004
    1 pieces
    10
    6.5
    20
    2.3
    49, 49
    26, 26
    0.007
    1 pieces
    12
    8.5
    22
    3.1
    68, 68
    38, 38
    0.011
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    4.92 €
    ( 5.85 € )
    7 working days
    5.50 €
    ( 6.54 € )
    7 working days
    6.06 €
    ( 7.21 € )
    7 working days
    6.96 €
    ( 8.28 € )
    7 working days
    10.90 €
    ( 12.97 € )
    7 working days
    11.42 €
    ( 13.59 € )
    7 working days
  • 1

    • More Information

    Basic information

    GN 614.8 Stainless Steel-Spring plungers are used for locking as well as for pressure and hold-off functions.

    The ball is mounted in a plastic shell so as to be freely movable, which enables rolling and therefor generally optimizes the locking characteristics. Above all, this reduces wear on the counter piece.

    A further characteristic of these plungers is that the plastic bearing acts as an electrical insulator.

    For the mounting hole, tolerance d1 F8 is recommended for joined fitting and d1 H9 for press fitting.
