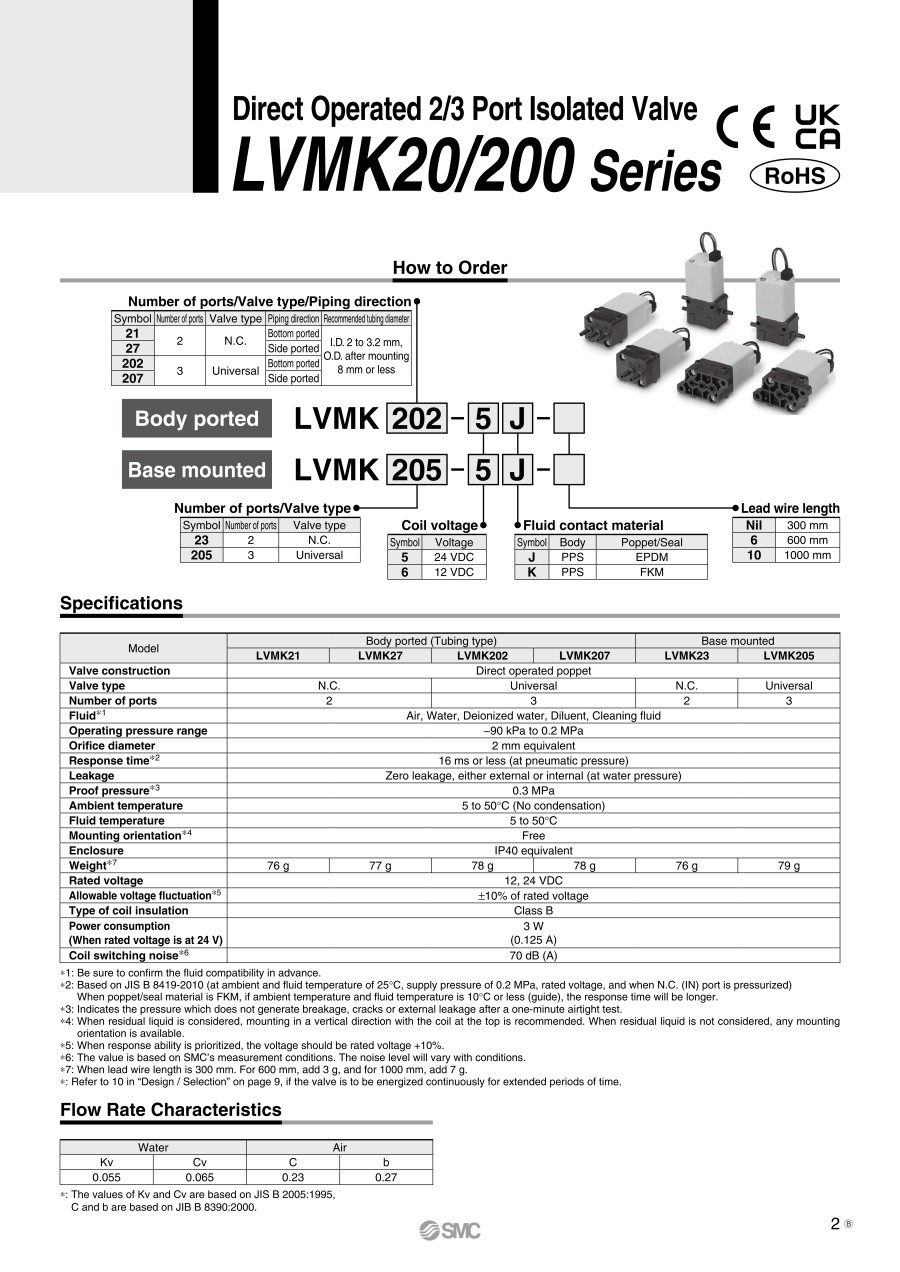

Direct Operated 2 / 3 Port Isolated Valve LVMK20 / 200 Series
・ Low dust generation, oil-free, metal-free
・ Operating Fluids: Air, water, deionized water (pure water), diluent, detergent
・ Isolated structure
A partition seal separates the solenoid drive from the used operating fluid range
・ Easy piping
· Prevents residual liquid
・ No flow rate adjustment required
(i)Remark
- Refer to the manufacturer's catalog for specification and material details.
- Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.
- CAD data is not available for some model numbers.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Switching Type | Connection Type | Tube Diameter | Voltage | Lead wire length (mm) | Liquid-contacting parts material | Piping | |
|---|---|---|---|---|---|---|---|---|---|---|---|
37.26 € | 1 | 26 Days | Normally Closed | Tube Connection | Ø3.2 | - | 300 | Poppet/seal: EPDM | Direct piping type (bottom piping) | ||
39.73 € | 1 | 26 Days | Normally Closed | Tube Connection | Ø3.2 | - | 600 | Poppet/seal: EPDM | Direct piping type (bottom piping) | ||
40.74 € | 1 | 26 Days | Normally Closed | Tube Connection | Ø3.2 | - | 1,000 | Poppet/seal: EPDM | Direct piping type (bottom piping) | ||
39.73 € | 1 | 26 Days | Normally Closed | Tube Connection | Ø3.2 | - | 300 | Poppet/seal: FKM | Direct piping type (bottom piping) | ||
37.26 € | 1 | 26 Days | Normally Closed | Tube Connection | Ø3.2 | 12 V DC | 300 | Poppet/seal: EPDM | Direct piping type (bottom piping) | ||
39.73 € | 1 | 26 Days | Normally Closed | Tube Connection | Ø3.2 | 12 V DC | 600 | Poppet/seal: EPDM | Direct piping type (bottom piping) | ||
39.73 € | 1 | 26 Days | Normally Closed | Tube Connection | Ø3.2 | 12 V DC | 300 | Poppet/seal: FKM | Direct piping type (bottom piping) | ||
37.26 € | 1 | 26 Days | Normally Closed | Others | - | - | 300 | Poppet/seal: EPDM | Base Mounted Type | ||
39.73 € | 1 | 26 Days | Normally Closed | Others | - | - | 600 | Poppet/seal: EPDM | Base Mounted Type | ||
40.74 € | 1 | 26 Days | Normally Closed | Others | - | - | 1,000 | Poppet/seal: EPDM | Base Mounted Type | ||
39.73 € | 1 | 26 Days | Normally Closed | Others | - | - | 300 | Poppet/seal: FKM | Base Mounted Type | ||
42.19 € | 1 | 26 Days | Normally Closed | Others | - | - | 600 | Poppet/seal: FKM | Base Mounted Type | ||
43.21 € | 1 | 26 Days | Normally Closed | Others | - | - | 1,000 | Poppet/seal: FKM | Base Mounted Type | ||
37.26 € | 1 | 26 Days | Normally Closed | Others | - | 12 V DC | 300 | Poppet/seal: EPDM | Base Mounted Type | ||
39.73 € | 1 | 26 Days | Normally Closed | Others | - | 12 V DC | 300 | Poppet/seal: FKM | Base Mounted Type | ||
42.19 € | 1 | 26 Days | Normally Closed | Others | - | 12 V DC | 600 | Poppet/seal: FKM | Base Mounted Type | ||
37.26 € | 1 | 26 Days | Normally Closed | Tube Connection | Ø3.2 | - | 300 | Poppet/seal: EPDM | Direct piping type (Side piping) | ||
39.73 € | 1 | 26 Days | Normally Closed | Tube Connection | Ø3.2 | - | 600 | Poppet/seal: EPDM | Direct piping type (Side piping) | ||
40.74 € | 1 | 26 Days | Normally Closed | Tube Connection | Ø3.2 | - | 1,000 | Poppet/seal: EPDM | Direct piping type (Side piping) | ||
39.73 € | 1 | 26 Days | Normally Closed | Tube Connection | Ø3.2 | - | 300 | Poppet/seal: FKM | Direct piping type (Side piping) | ||
42.19 € | 1 | 26 Days | Normally Closed | Tube Connection | Ø3.2 | - | 600 | Poppet/seal: FKM | Direct piping type (Side piping) | ||
43.21 € | 1 | 26 Days | Normally Closed | Tube Connection | Ø3.2 | - | 1,000 | Poppet/seal: FKM | Direct piping type (Side piping) | ||
39.73 € | 1 | 26 Days | Normally Closed | Tube Connection | Ø3.2 | 12 V DC | 300 | Poppet/seal: FKM | Direct piping type (Side piping) | ||
42.19 € | 1 | 26 Days | Normally Closed | Tube Connection | Ø3.2 | 12 V DC | 600 | Poppet/seal: FKM | Direct piping type (Side piping) | ||
43.21 € | 1 | 26 Days | Normally Closed | Tube Connection | Ø3.2 | 12 V DC | 1,000 | Poppet/seal: FKM | Direct piping type (Side piping) | ||
37.26 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | - | 300 | Poppet/seal: EPDM | Direct piping type (bottom piping) | ||
39.73 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | - | 600 | Poppet/seal: EPDM | Direct piping type (bottom piping) | ||
39.73 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | - | 300 | Poppet/seal: FKM | Direct piping type (bottom piping) | ||
42.19 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | - | 600 | Poppet/seal: FKM | Direct piping type (bottom piping) | ||
37.26 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | 12 V DC | 300 | Poppet/seal: EPDM | Direct piping type (bottom piping) | ||
39.73 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | 12 V DC | 600 | Poppet/seal: EPDM | Direct piping type (bottom piping) | ||
40.74 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | 12 V DC | 1,000 | Poppet/seal: EPDM | Direct piping type (bottom piping) | ||
39.73 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | 12 V DC | 300 | Poppet/seal: FKM | Direct piping type (bottom piping) | ||
43.21 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | 12 V DC | 1,000 | Poppet/seal: FKM | Direct piping type (bottom piping) | ||
39.73 € | 1 | 26 Days | 3-Port Universal | Others | - | - | 600 | Poppet/seal: EPDM | Base Mounted Type | ||
40.74 € | 1 | 26 Days | 3-Port Universal | Others | - | - | 1,000 | Poppet/seal: EPDM | Base Mounted Type | ||
39.73 € | 1 | 26 Days | 3-Port Universal | Others | - | - | 300 | Poppet/seal: FKM | Base Mounted Type | ||
42.19 € | 1 | 26 Days | 3-Port Universal | Others | - | - | 600 | Poppet/seal: FKM | Base Mounted Type | ||
37.26 € | 1 | 26 Days | 3-Port Universal | Others | - | 12 V DC | 300 | Poppet/seal: EPDM | Base Mounted Type | ||
39.73 € | 1 | 26 Days | 3-Port Universal | Others | - | 12 V DC | 600 | Poppet/seal: EPDM | Base Mounted Type | ||
39.73 € | 1 | 26 Days | 3-Port Universal | Others | - | 12 V DC | 300 | Poppet/seal: FKM | Base Mounted Type | ||
37.26 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | - | 300 | Poppet/seal: EPDM | Direct piping type (Side piping) | ||
39.73 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | - | 600 | Poppet/seal: EPDM | Direct piping type (Side piping) | ||
40.74 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | - | 1,000 | Poppet/seal: EPDM | Direct piping type (Side piping) | ||
39.73 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | - | 300 | Poppet/seal: FKM | Direct piping type (Side piping) | ||
42.19 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | - | 600 | Poppet/seal: FKM | Direct piping type (Side piping) | ||
43.21 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | - | 1,000 | Poppet/seal: FKM | Direct piping type (Side piping) | ||
37.26 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | 12 V DC | 300 | Poppet/seal: EPDM | Direct piping type (Side piping) | ||
39.73 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | 12 V DC | 600 | Poppet/seal: EPDM | Direct piping type (Side piping) | ||
40.74 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | 12 V DC | 1,000 | Poppet/seal: EPDM | Direct piping type (Side piping) | ||
39.73 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | 12 V DC | 300 | Poppet/seal: FKM | Direct piping type (Side piping) | ||
43.21 € | 1 | 26 Days | 3-Port Universal | Tube Connection | Ø3.2 | 12 V DC | 1,000 | Poppet/seal: FKM | Direct piping type (Side piping) |
Loading...
Basic information
| Type | Electromagnetic Type | Applicable Fluid | Air / Water | Operating Environment | No oil |
|---|---|---|---|---|---|
| Driving Type | Linear Motion Type | Operating Temperature Range(℃) | 5::50 | Number of Solenoids | Single Solenoid |
| Body Material | Resin | Acquired Standards | CE | Power consumption(W) | 3 |
Configure
Basic Attributes
-
Switching Type
- Normally Closed
- 3-Port Universal
-
Connection Type
- Tube Connection
- Others
-
Tube Diameter
- Ø3.2
-
Voltage
- 12 V DC
-
Lead wire length(mm)
- 1,000
- 300
- 600
-
Liquid-contacting parts material
- Poppet/seal: EPDM
- Poppet/seal: FKM
-
Piping
- Base Mounted Type
- Direct piping type (Side piping)
- Direct piping type (bottom piping)
-
Type
- LVMK202
- LVMK205
- LVMK207
- LVMK21
- LVMK23
- LVMK27
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 26 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
