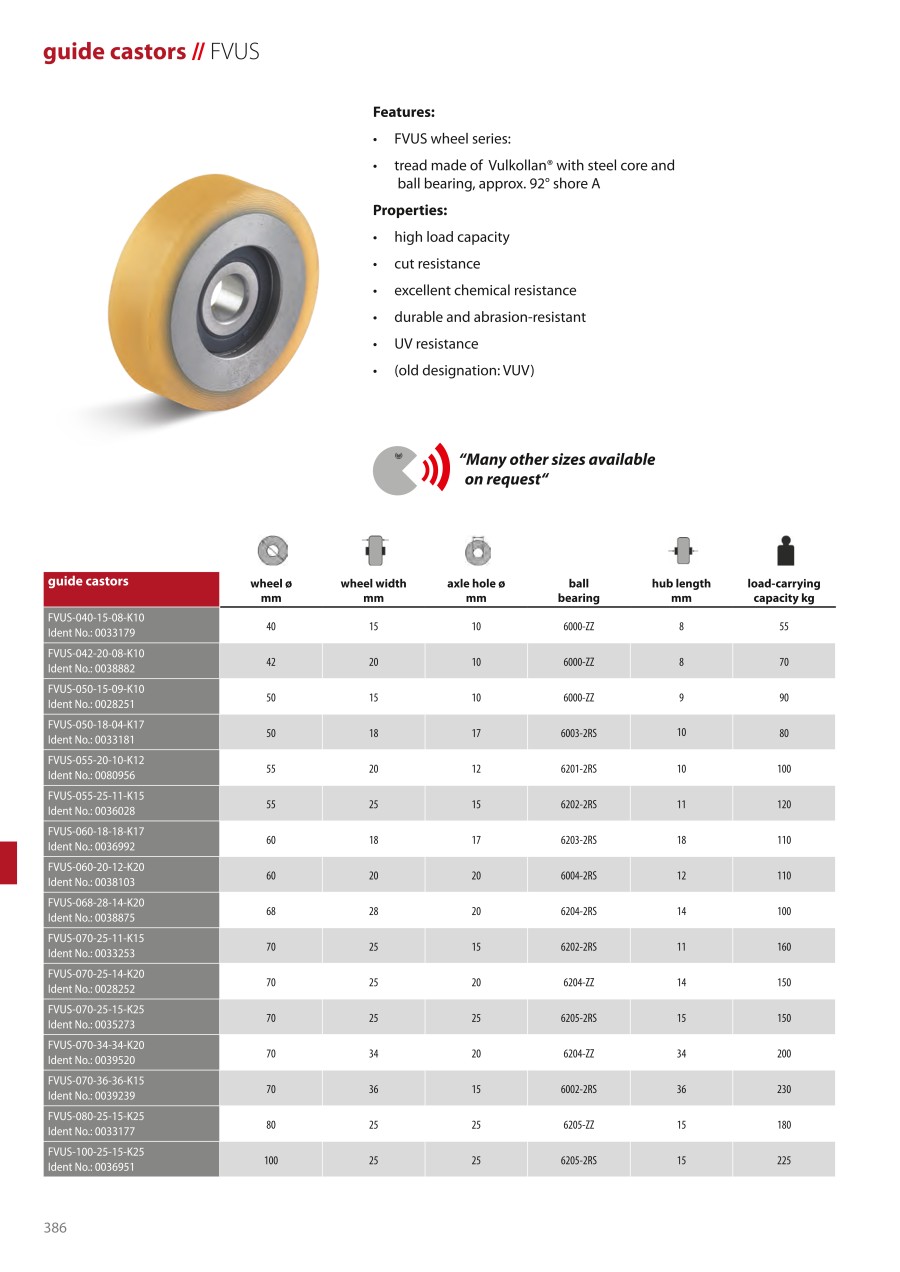

Vulkollan guide roller
・Type: Guide Roller
・Tread color: Brown, Natural color
・Rim material: Steel
・Tread material: Vulkollan
[Features]
・FVUS series is robust, abrasion-resistant and cut-resistant. Also scores points for its high chemical resistance and UV resistance
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | electrically conductive | Tread color | Tread type | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
29.49 € | 1 | 4 Days | 40 | 15 | 55 | none | Natural color | cylindrical | 0.06 | ||
48.76 € | 1 | 20 Days | 42 | 20 | 70 | none | Natural color | cylindrical | 0.096 | ||
20.55 € | 1 | 4 Days | 50 | 15 | 90 | none | Natural color | cylindrical | 0.112 | ||
23.05 € | 1 | 20 Days | 50 | 18 | 80 | none | Natural color | cylindrical | 0.097 | ||
37.15 € | 1 | 20 Days | 55 | 20 | 100 | - | Natural color | crowned | 0.154 | ||
68.85 € | 1 | 20 Days | 55 | 25 | 120 | - | - | - | 0.16 | ||
40.74 € | 1 | 5 Days | 60 | 18 | 110 | none | Brown | cylindrical | 0.132 | ||
29.15 € | 1 | 4 Days | 60 | 20 | 110 | none | Natural color | cylindrical | 0.184 | ||
52.59 € | 1 | 20 Days | 70 | 25 | 160 | none | Natural color | - | 1.55 | ||
34.41 € | 1 | 4 Days | 70 | 25 | 150 | none | Brown | cylindrical | 0.184 | ||
47.40 € | 1 | 20 Days | 70 | 25 | 150 | none | Natural color | cylindrical | 0.362 | ||
61.53 € | 1 | 4 Days | 70 | 34 | 200 | none | Natural color | cylindrical | 0.448 | ||
84.17 € | 1 | 5 Days | 70 | 36 | 230 | none | Natural color | cylindrical | 0.446 | ||
88.27 € | 1 | 20 Days | 80 | 25 | 180 | none | Natural color | cylindrical | 0.392 | ||
40.94 € | 1 | 20 Days | 80 | 25 | 180 | none | Brown | crowned | 0.414 | ||
37.51 € | 1 | 20 Days | 80 | 25 | 180 | none | Brown | cylindrical | 0.408 | ||
43.28 € | 1 | 4 Days | 100 | 25 | 225 | none | Natural color | cylindrical | 0.502 |
Loading...
Basic information
| Wheel bearing | Ball-bearing | Rim material | Steel | Tread material | Vulkollan |
|---|---|---|---|---|---|
| Min. temperature resistance(° C) | -20 | Max. temperature resistance(° C) | 90 |
Configure
Basic Attributes
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
electrically conductive
- none
-
Tread color
- Brown
- Natural color
-
Tread type
- crowned
- cylindrical
Filter by standard shipping days
-
- All
- 4 Days or Less
- 5 Days or Less
- 20 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
