Configure
- Plate length(mm)
- 135
- 175
- Plate width(mm)
- 110
- 140
- Wheel diameter(mm)
- 75
- 100
- 130
- 150
- 200
- Wheel width(mm)
- 50
- 60
- 80
- Load capacity dynamic(kg)
- 400
- 800
- 1300
- overall height(mm)
- 133
- 150
- 172
- 200
- 245
- 255
- Discharge swivel castor(mm)
- 45
- 50
- 55
- 60
- 75
- Bolt Hole Length(mm)
- 105
- 140
- Bolt hole width(mm)
- 80
- 105
- Screw hole(mm)
- 11
- 15
- Swivel Radius(mm)
- 82.5
- 95
- 115
- 130
- 160
- 175
- Est. shipping days
- All
- Within 5 working days
- Within 18 working days

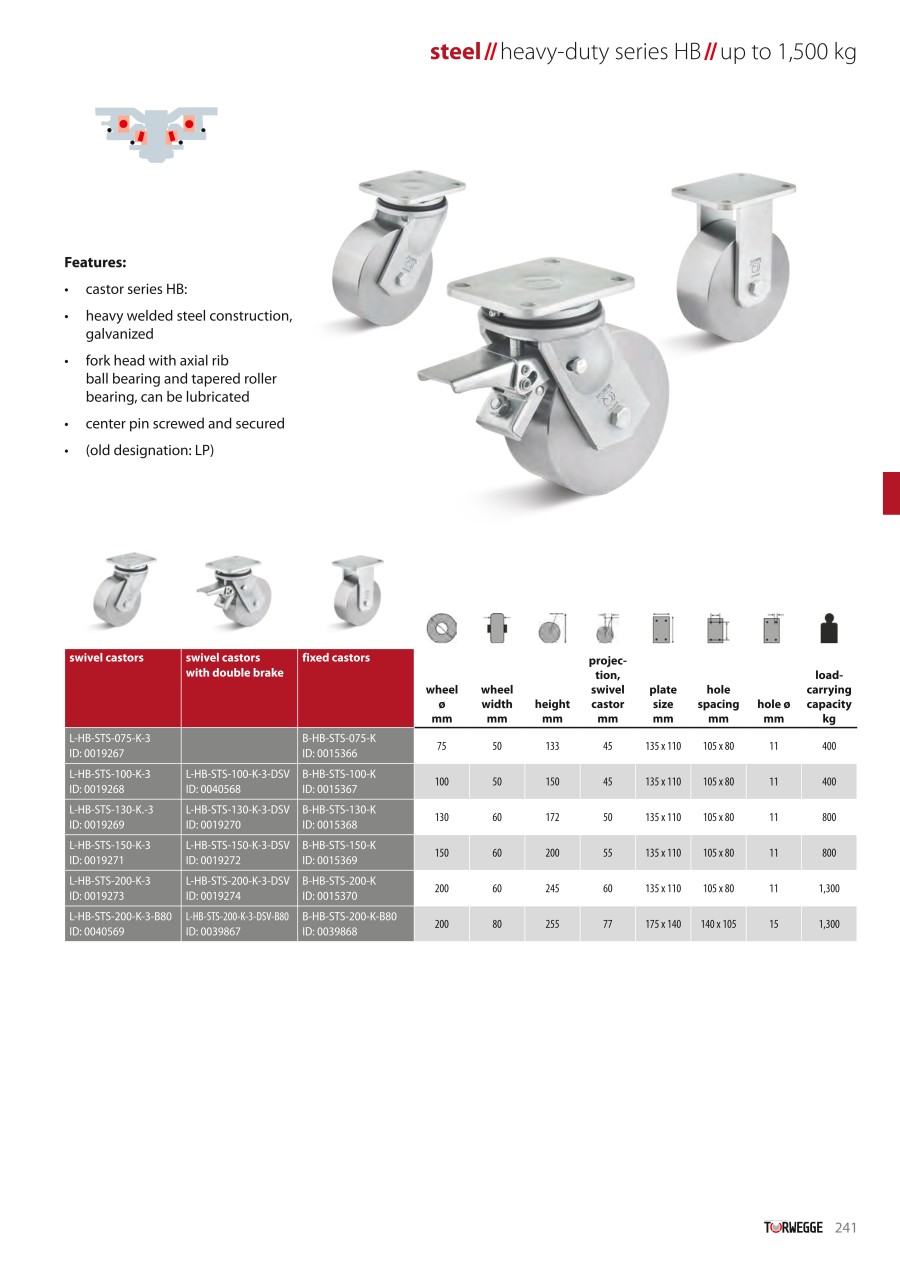

Heavy duty swivel Castors with all-steel wheel, C45
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
106.76 € ( 127.04 € ) | 5 working days |
117.99 € ( 140.41 € ) | 5 working days |
150.53 € ( 179.13 € ) | 5 working days |
151.45 € ( 180.23 € ) | 5 working days |
248.18 € ( 295.33 € ) | 5 working days |
304.07 € ( 361.84 € ) | 18 working days |
More Information
Basic information
[Specifications]
・Rolls and case type: Steering housing
・Wheel bearing: Ball-bearing
・Housing classification: Heavy load series HB
・Tread material: Steel
・Mounting type: Mounting plate
・Wheel diameter(mm): 75, 200
・Wheel width(mm): 50, 60, 80
・Load capacity dynamic(kg): 400, 800, 1300
[Features]
・castor series HB:
・heavy welded steel construction, galvanized
・fork head with axial rib ball bearing and tapered roller bearing, can be lubricated
・center pin screwed and secured
・(old designation: LP)
