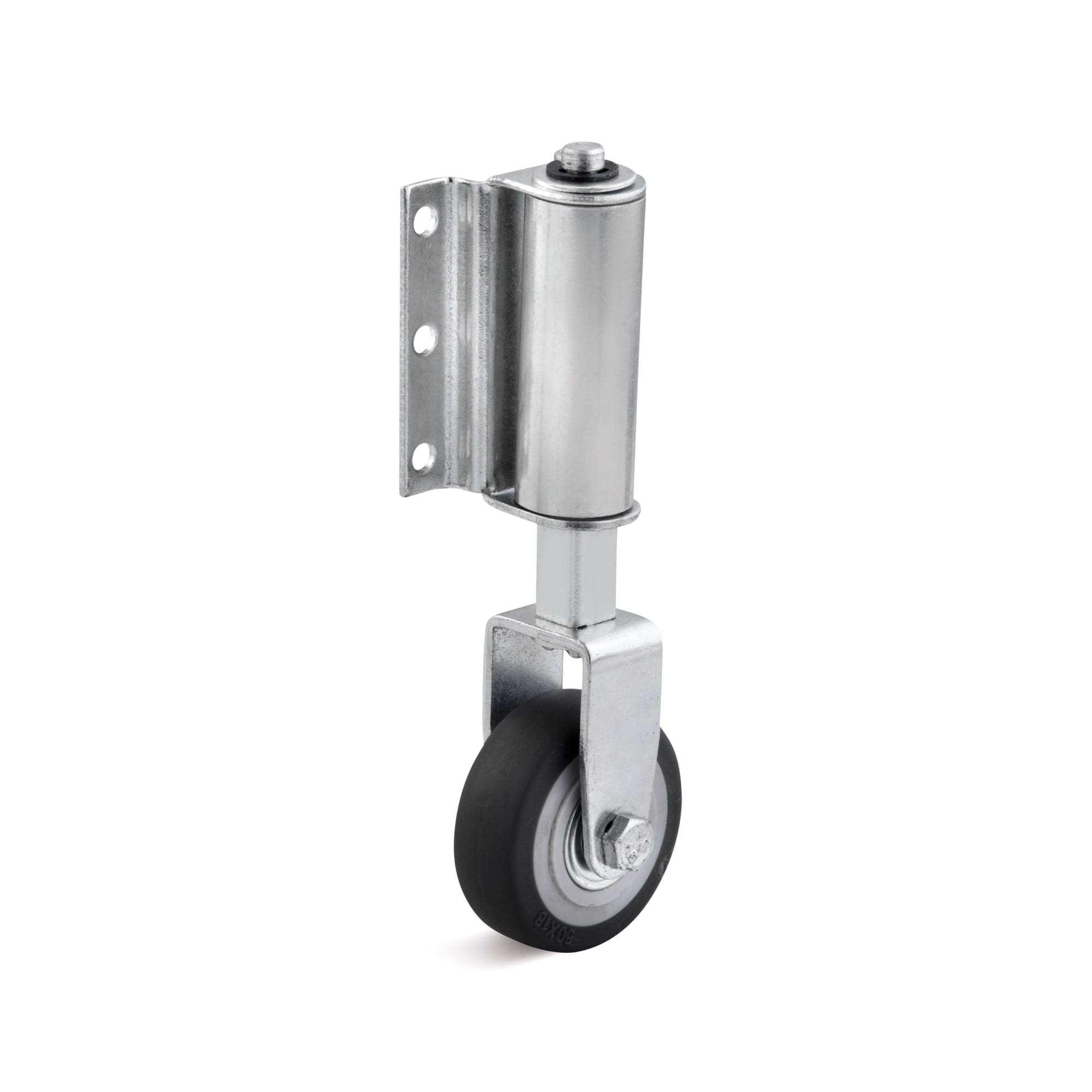

Ladder with wheel made of thermoplastic rubber, with cone ball bearing
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| B-1260-50-BOCK |
| L-1265-50-LENK |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Rolls and case type | Housing material RR | Weight (kg) | |
|---|---|---|---|---|---|---|---|
12.97 € | 1 | 4 Days | Fixed bracket | Steel | 0.262 | ||
15.14 € | 1 | 4 Days | Steering housing | Steel galvanized | 0.35 |
Loading...
Basic information
| Plate length(mm) | 59.5 | Plate width(mm) | 48 | Wheel diameter(mm) | 50 |
|---|---|---|---|---|---|
| Wheel width(mm) | 18 | Load capacity dynamic(kg) | 40 | overall height(mm) | 150 |
| Mounting type | Mounting plate | Bolt Hole Length(mm) | 38 | Bolt hole width(mm) | 22.5 |
| Surface coating | galvanized | Screw hole(mm) | 5.3 | Tread material | Thermoplastic |
| electrically conductive | none | Tread color | Grey | Tread type | crowned |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
